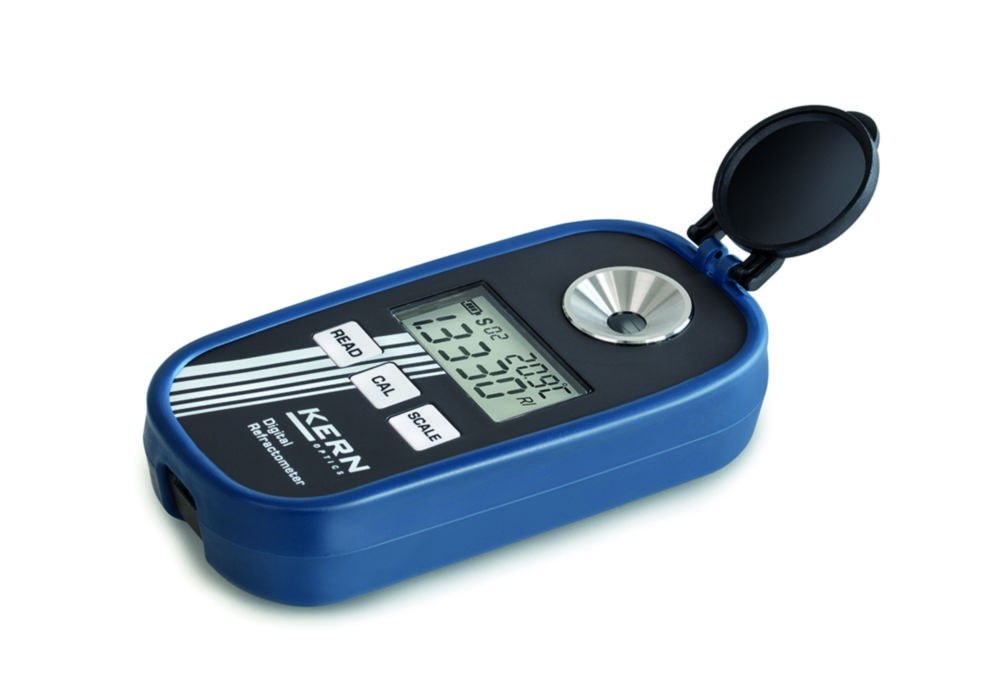

Digital refractometers ORM
Accurate and maintenance free digital handheld refractometers for universal application.
- Large display with integrated temperature reading
- Automatic temperature compensation (ATC)
- Automatic power-off after 60 seconds
- Protected against dust and splash water (IP 65)
Scope of supply:
Refractometer, prism cover lid, pipette, storage box, 1 × AAA battery, user manual
- Temperature range: 10 … 40 °C
- Power supply: 1 × AAA (1,5 V)
- Battery life: approx. 10000 measurements
- IP code: IP 65
- Dimensions (W x D x H): 121 × 58 × 25 mm
- Weight: 289 g
Toote variatsioonid
| Type | For | Resolution | Measuring range | Accuracy | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|
| ORM 1RS | BrixRefractive index | 0,1 %0,0001 nD | 0 ... 90 %1,3330 ... 1,5177 nD | ± 0,2 %± 0,0003 nD | 6.320 396 | 1.00 | ||
| ORM 1BR | PlatoSG WortBrixRefractive index | 0,10,10,1 %0,0001 nD | 0 ... 31 °P1,000 ... 1,13000 ... 50 %1,3330 ... 1,4200 nD | ± 0,3 °P± 0,002± 0,2 %± 0,0003 nD | 4.691 095 | 1.00 | ||
| ORM 1UN | Urine (spec. gravity)Serum proteinBrixRefractive index | 0,001 sgU0,1 g/100 ml0,1 %0,0001 nD | 1,000 ... 1,050 sgU0 ... 12 g/100 ml0 ... 50 %1,3330 ... 1,4200 nD | ± 0,001 sgU± 0,2 g/100 ml± 0,2 %± 0,0003 nD | 6.325 144 | 1.00 | ||
| ORM 1AL | Percentage by massPercentage by volumeBrixRefractive index | 1 %1 %0,1 %0,0001 nD | 0 ... 72 %0 ... 80 %0 ... 50 %1,3330 ... 1,4200 nD | ± 1 %± 1 %± 0,2 %± 0,0003 nD | 4.691 094 | 1.00 | ||
| ORM 1HO | Water contentBauméBrixRefractive index | 0,1 %0,1 °Bé0,1 %0,0001 nD | 5 ... 38 ... 48 °Bé0 ... 90 %1,3330 ... 1,5177 nD | ± 0,2 %± 0,2 °Bé± 0,2 %± 0,0003 nD | 4.691 098 | 1.00 | ||
| ORM 1CA | Wash waterAdBlue®Battery fluidBrixRefractive index | 0,1 °C0,1 %0,0010,1 %0,0001 nD | -60 ... 0 °C0 ... 51 %1,000 ... 1,5000 ... 50 %1,3330 ... 1,4200 nD | ± 0,5 °C± 0,2 %± 0,005± 0,2 %± 0,0003 nD | 4.691 096 | 1.00 | ||
| ORM 50BM | BrixRefractive index | 0,1 %0,0001 nD | 0 ... 50 %1,3330 ... 1,4200 nD | ± 0,2 %± 0,0003 nD | 6.320 397 | 1.00 | ||
| ORM 1SU | FructoseGlucoseBrixRefractive index | 0,1 %0,1 %0,1%0,0001 nD | 0 ... 69 %0 ... 60 %0 ... 90 %1,3330 ... 1,577 nD | ± 0,2 %± 0,2 %± 0,2 %± 0,0003 nD | 4.691 100 | 1.00 | ||
| ORM 1WN | OechslePercentage by volumeKMW (Babo)Brix | 1 °Oe0,1 %0,1 °KMW0,1 % | 0 ... 150 °Oe0 ... 22 %0 ... 25 °KMW0 ... 50 % | ± 2 °Oe± 0,2 %±0,2 °KMW± 0,2 % | 4.691 102 | 1.00 | ||
| ORM 2CO | Coffee TDS 2BrixRefractive index | 0,10,1 %0,0001 nD | 0 ... 250 ... 30 %1,3330 ... 1,4200 nD | ± 0,2± 0,2 %± 0,0003 nD | 4.691 104 | 1.00 | ||
| ORM 1SW | Salt content seawaterChlorine content seawaterSpec. gravityBrixRefractive index | 1 ‰1 ‰0,1 %0,1 %0,0001 nD | 0 ... 100 ‰0 ... 57 %1,000 ... 1,0700 ... 50 %1,3330 ... 1,4200 nD | ± 2 ‰± 2 ‰± 0,002± 0,2 %± 0,0003 nD | 4.691 101 | 1.00 | ||
| ORM 2UN | Urine (s.g. dog)Urine (s.g. cat)BrixRefractive index | 0,001 sgU0,001 sgU0,1 %0,0001 nD | 1,000 ... 1,060 sgU1,000 ... 1,060 sgU0 ... 50 %1,3330 ... 1,4200 nD | ± 0,002 sgU± 0,002 sgU± 0,2 %± 0,0003 nD | 4.691 106 | 1.00 | ||
| ORM 2CA | Ethylene glycolEthylene glycolPropylene glycolPropylene glycolBrix | 0,1 %0,1 °C0,1 %0,1 °C0,1 % | 0 ... 100 %-50 ... 0 °C0 ... 100 %-60 ... 0 °C0 ... 90 % | ± 0,5 %± 0,5 °C± 0,5 %± 0,5 °C± 0,2 % | 4.691 103 | 1.00 | ||
| ORM 2WN | Oechsle FrancePercentage by volumeKMW (Babo)Brix | 1 °Oe0,1 %0,1 °KMW0,1 % | 0 ... 230 °Oe0 ... 22 %0 ... 25 °KMW0 ... 50 % | ± 2 °Oe± 0,2 %±0,2 °KMW± 0,2 % | 4.691 107 | 1.00 | ||
| ORM 2SU | LactoseMaltoseDextranBrix | 0,1 %0,1 %0,1 %0,1 % | 0 ... 17 %0 ... 16 %0 ... 11 %0 ... 50 % | ± 0,2 %± 0,2 %± 0,2 %± 0,2 % | 4.691 105 | 1.00 | ||
| ORM 1CO | Coffee TDS 1BrixRefractive index | 0,10,1 %0,0001 nD | 0 ... 250 ... 50 %1,3330 ... 1,4200 nD | ± 0,2± 0,2 %± 0,0003 nD | 4.691 097 | 1.00 | ||
| ORM 1NA | Salt content (NaCl)Salt content (NaCl)Spec. gravityBrixRefractive index | 0,1 %1 ‰0,0010,1%0,0001 nD | 0 ... 28 %0 ... 280 ‰1,000 ... 1,2200 ... 28 %1,3330 ... 1,4100 nD | ± 0,2 %± 2 ‰± 0,002± 0,2 %± 0,0003 nD | 4.691 099 | 1.00 |
