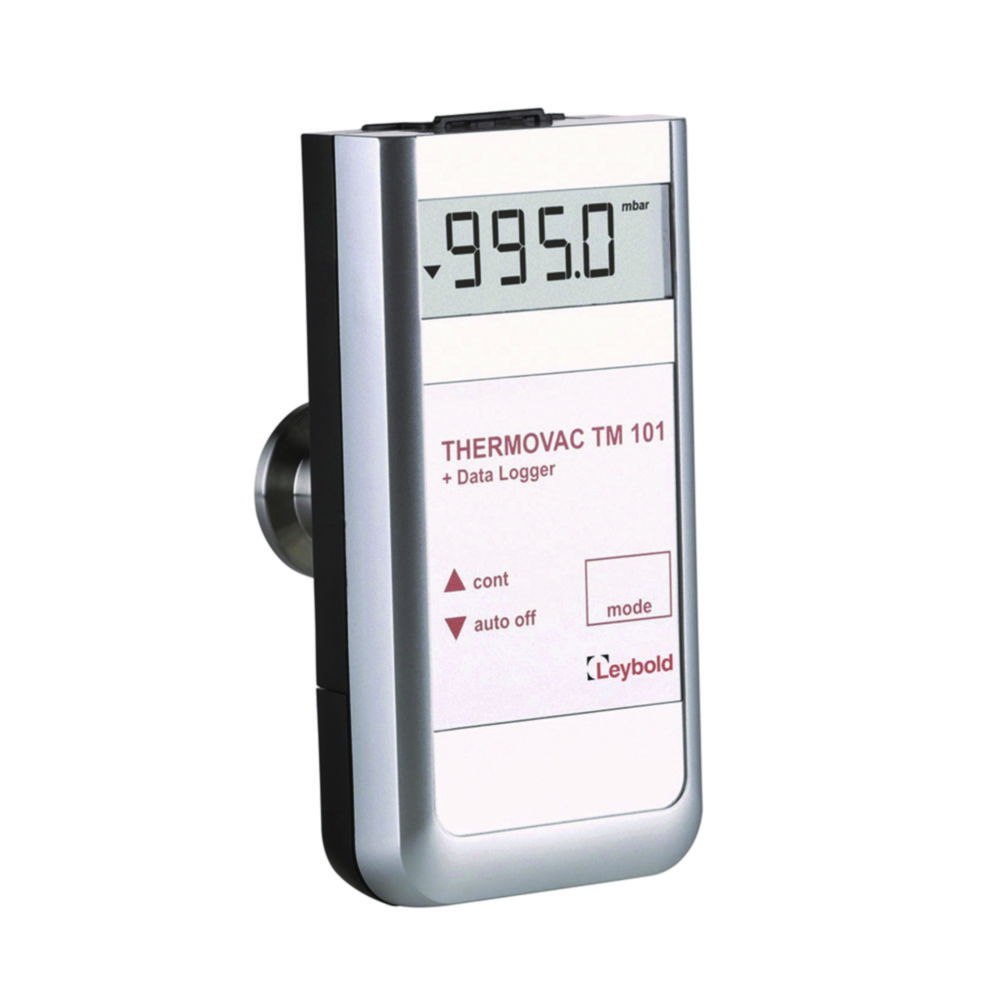

Digital vacuum gauge THERMOVAC TM 101
The temperature-compensated vacuum gauge is equipped with a Piezo (rough vacuum)/Pirani (fine vacuum) combination sensor and is used for total vacuum measurement. It can be used as a mobile hand-held gauge or as an instrument permanently integrated into a system. The integrated memory function stores up to 2000 measured values. Via the USB interface, stored measured values can be transferred to a PC, online pressure measurements can be carried out, and measured data can be exported.
- For rough and fine vacuum measurements
- Large display
- Can be used directly in a vacuum
- Adjustable gas type correction factor
- Pressure recording above 15 mbar independent of gas type
- Pressure unit selectable between mbar, Torr, and Pascal
- Incl. 9 V block battery 6LR61
Toote variatsioonid
| Depth | Height | IP code | Catalog number | Type | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| 25 mm | 120 mm | IP 40 | 4.700 538 | THERMOVAC TM 101 | 230 g | 60 mm | 1.00 |
