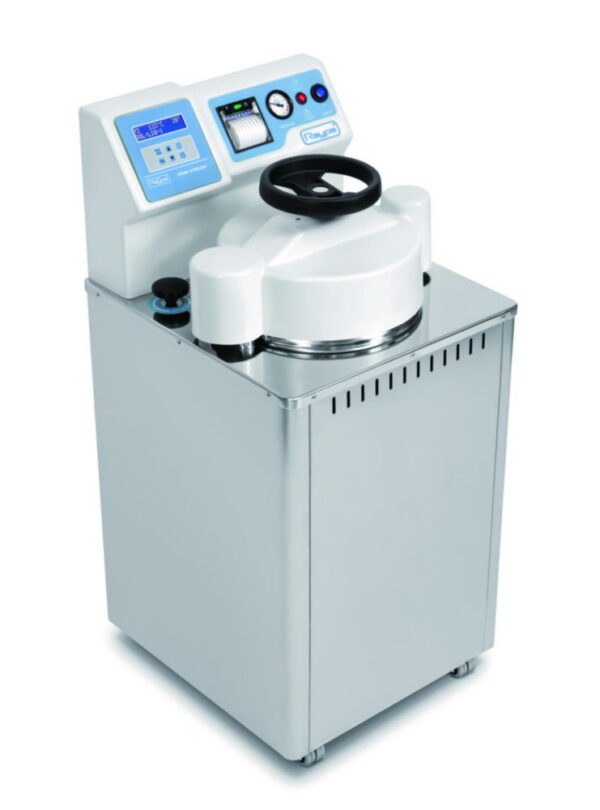

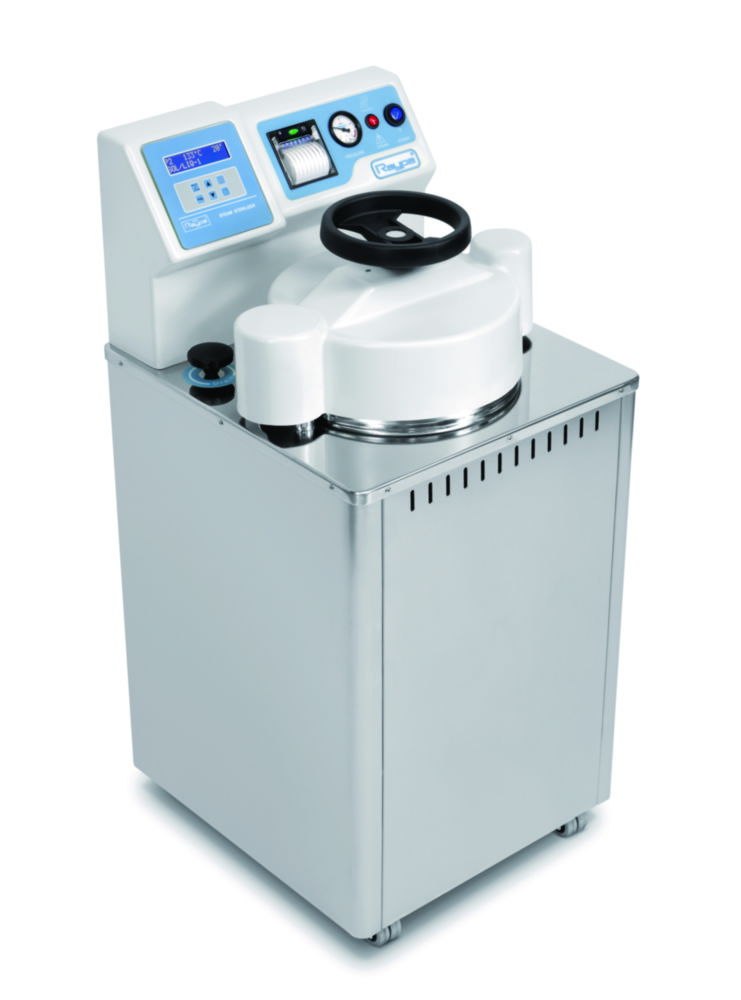

Digital vertical autoclaves, AES series
These autoclaves are microprocessor controlled and monitored with 10 sterilisation programmes of which 4 are fixed and 6 are freely programmable.
- Operating temperature range 100 °C to 134 °C
- On request also available with with vacuum pump and steam generator
- Agar modus (40 °C to 80 °C)
- RS 232 interface
- Timer
- Programmable auto-start (24 h)
- Fully automatic functions
- Case and lid shrouding are AISI 304 stainless steel
- Sterilisation chamber, lid and sealing system are AISI 316 stainless steel
- Electrical heating with protected heating elements in the interior of the chamber
- Safety pressure valve
- Safety thermostat
- Automatic steam controlled by microprocessor
- Manual valves for emptying the sterilisation chamber and for draining steam
- Supply requirements:
AES-12 and AES-75: 230 V 16 A single phase
AES-110 and AES-150: 400 V + Neutral (3-phase)
Toote variatsioonid
| Type | Height mm | Power W | Length mm | Chamber diam. x depth mm | Width mm | Capacity l | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| AES-75 | 1190 | 3200 | 730 | 400 x 600 | 620 | 75 | 9.851 895 | 1.00 | ||
| AES-28 | 1120 | 2000 | 560 | 300 x 400 | 510 | 28 | 9.851 894 | 1.00 | ||
| AES-12 | 650 | 1000 | 500 | 250 x 270 | 490 | 12 | 9.851 893 | 1.00 | ||
| AES-150 | 1400 | 6000 | 850 | 500 x 750 | 760 | 150 | 9.851 897 | 1.00 | ||
| AES-50 | 1300 | 3200 | 560 | 300 x 700 | 510 | 50 | 6.267 578 | 1.00 | ||
| AES-110 | 1440 | 4500 | 730 | 400 x 850 | 620 | 110 | 9.851 896 | 1.00 |
