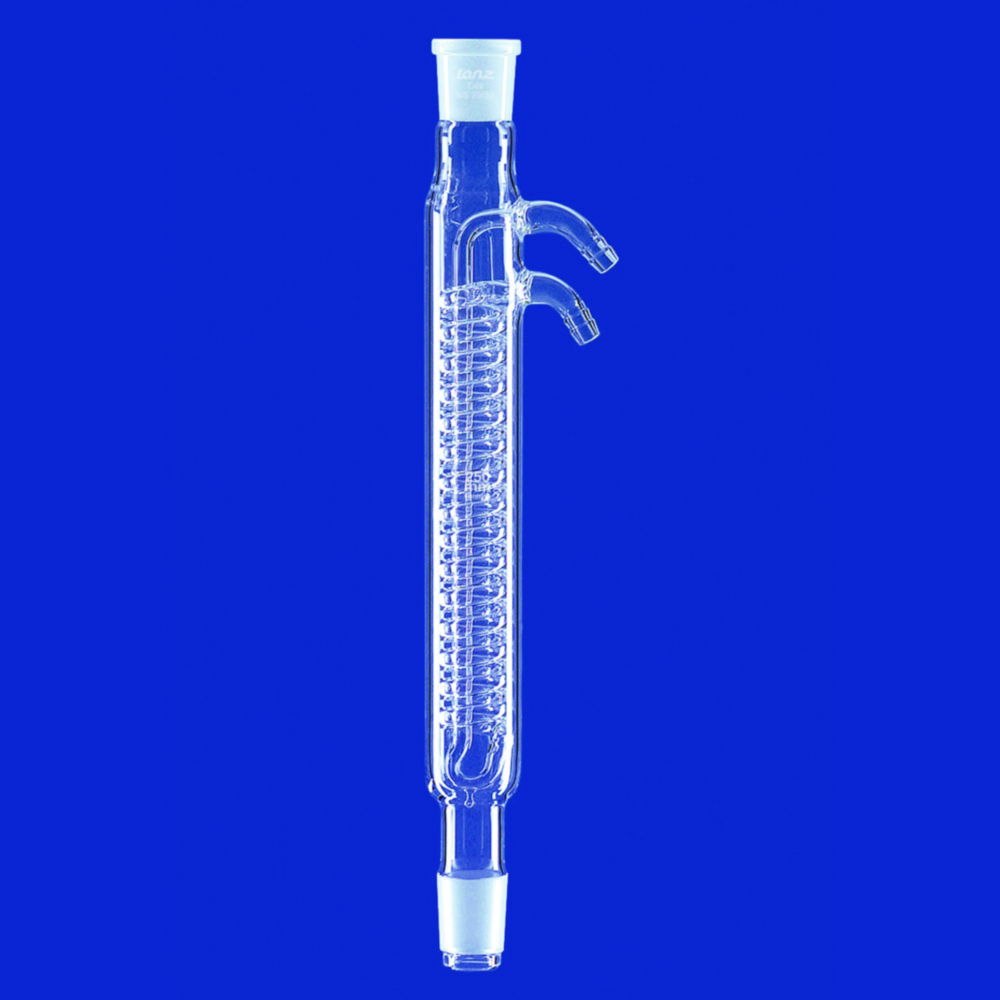

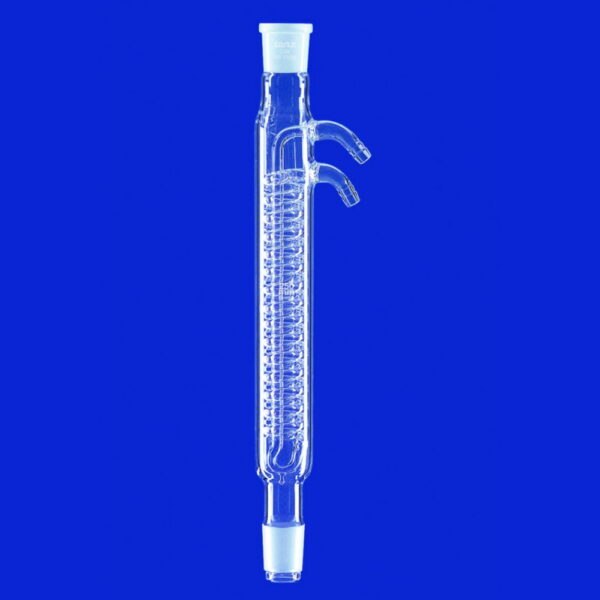

Dimroth condensers, DURAN® tubing
Made of DURAN® tubing. Dimroth condensers acc. to DIN 12591 and in addition to DIN standard, for condensing vapours, with NS socket and cone, water connection: glass olives or GL 14 threads with two threaded plastic olives.
Toote variatsioonid
| Connection | Cooling surface | Ground size | Length jacket | Material | Catalog number | PK | Standard | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| Glass olive | 240 cm² | NS14/23 | 250 mm | DURAN® tubing | 6.071 792 | 1.00 | - | ||
| Glass olive | 440 cm² | NS29/32 | 250 mm | DURAN® tubing | 6.236 577 | 1.00 | DIN 12591 | ||
| Glass olive | 140 cm² | NS14/23 | 160 mm | DURAN® tubing | 6.222 534 | 1.00 | - | ||
| Glass olive | 440 cm² | NS19/26 | 250 mm | DURAN® tubing | 6.230 126 | 1.00 | - | ||
| Glass olive | 740 cm² | NS29/32 | 400 mm | DURAN® tubing | 6.225 990 | 1.00 | DIN 12591 | ||
| Glass olive | 1380 cm² | NS45/40 | 400 mm | DURAN® tubing | 6.204 362 | 1.00 | - |
