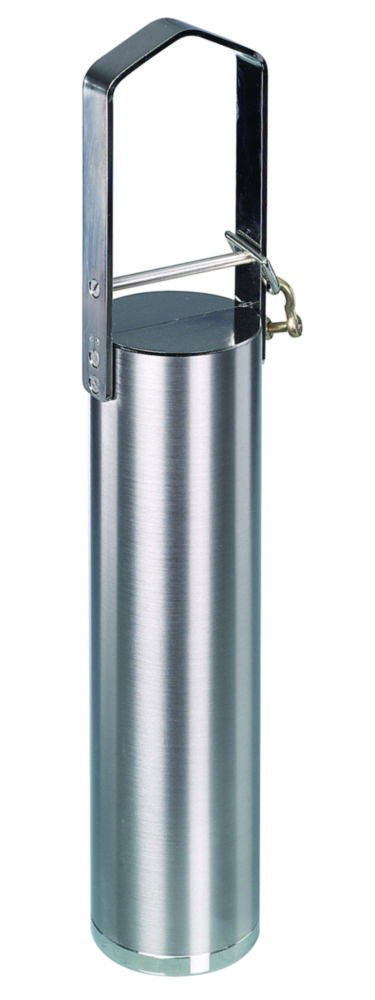

Dipping vessels for sampling
For sampling liquids from tanks, lorry tankers, etc. Made of brass or stainless steel AISI 304 (1.4301) for Ex areas. With handle. Without lowering cable.
Operation: When the dipping vessel is lowered, the liquid constantly runs through it. By pulling back, both valves close automatically.
Emptying at the top via the open flaps.
Toote variatsioonid
| Ø | Dimensions (ØxH) | Ex protected | Height | Material | Nominal capacity | Catalog number | Weight | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| 75 mm | 75 x 427 mm | Yes | 427 mm | Brass | 1000 ml | 9.303 935 | 2300 g | 1.00 | ||
| 76 mm | 76 x 427 mm | Yes | 427 mm | Stainless steel 1.4301 | 1000 ml | 9.303 936 | 2000 g | 1.00 |
