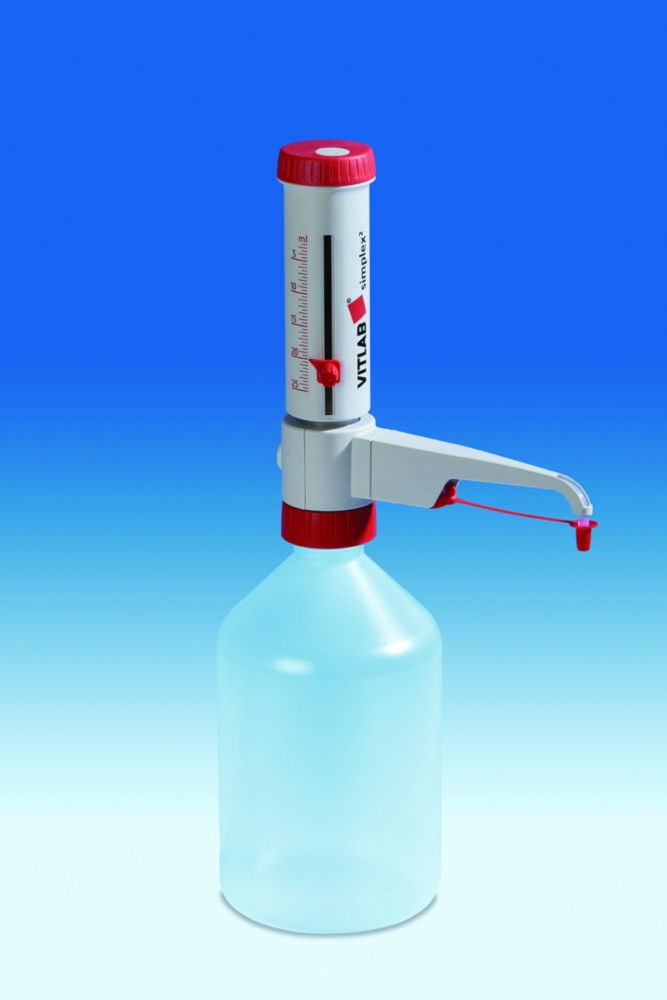

Dispensers, VITLAB® SIMPLEX2
With variable volume and calibration mechanism.
- Quick, easy and precise volume adjustment due to interior scalloped track and practical screw mechanism
- No drips after tube has been capped
- Easy calibration adjustment
- High-quality materials (PTFE, PFA, FEP, borosilicate glass, platinum-iridium) ensure high chemical resistance aganinst most acids, solvents and bases
- A positive displacement plunger with a PFA seal minimizes the crystallization of liquids and thus the clogging of the plunger
- Easy to dismantle for cleaning, no tools necessary
- Device can be rotated 360° on bottle
- DE-M marked
- With screwable discharge valve
Scope of supply:
Bottle top dispenser, thread adapter GL 25, GL 28, GL 32, GL 38, S 40 (2 – 10 ml), thread adapter GL 32, GL 38, S 40 (25 – 100 ml), telescopic filling tube, mounting tool, operation manual, quality certificate
Toote variatsioonid
| Accuracy | Autoclavable | Division | Dosing volume | Length suction tube | Catalog number | Precision | Thread | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0,5 ± R% | Yes | 0.10 ml | 0.5 ... 5.0 ml | 240 mm | 6.283 968 | 0.1 ≤·VK% | GL 45 | 1.00 | ||
| 0,5 ± R% | Yes | 0.20 ml | 1.0 ... 10.0 ml | 240 mm | 6.283 969 | 0.1 ≤·VK% | GL 45 | 1.00 | ||
| 0,5 ± R% | Yes | 0.50 ml | 2.5 ... 25.0 ml | 330 mm | 6.283 970 | 0.1 ≤·VK% | GL 45 | 1.00 | ||
| 0,5 ± R% | Yes | 1.00 ml | 10.0 ... 100.0 ml | 330 mm | 6.283 972 | 0.1 ≤·VK% | GL 45 | 1.00 | ||
| 0,5 ± R% | Yes | 1.00 ml | 5.0 ... 50.0 ml | 330 mm | 6.283 971 | 0.1 ≤·VK% | GL 45 | 1.00 | ||
| 0,5 ± R% | Yes | 0.05 ml | 0.2 ... 2.0 ml | 240 mm | 6.283 967 | 0.1 ≤·VK% | GL 45 | 1.00 |
