Dispersing heads for T 18 ULTRA-TURRAX® series
Plastic dispersing heads: Autoclavable
Stainless steel dispersing heads: Ultimate fineness emulsions 1 to 10 µm and suspensions 10 to 50 µm, sterilisable by all methods.
Toote variatsioonid
| Ø rotor | For | Material | Max. immersion depth | Max. temperature | Min. immersion depth | Catalog number | Stator Ø | Type | Working volume | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7.5 mm | T 18 brushless digital, T 18 digital, T 18 mini digital | PTFE/Stainless steel | 70 mm | 180 °C | 25 mm | 9.570 841 | 10 mm | S 18 N - 10 G | 1 ... 100 ml | 1.00 | ||

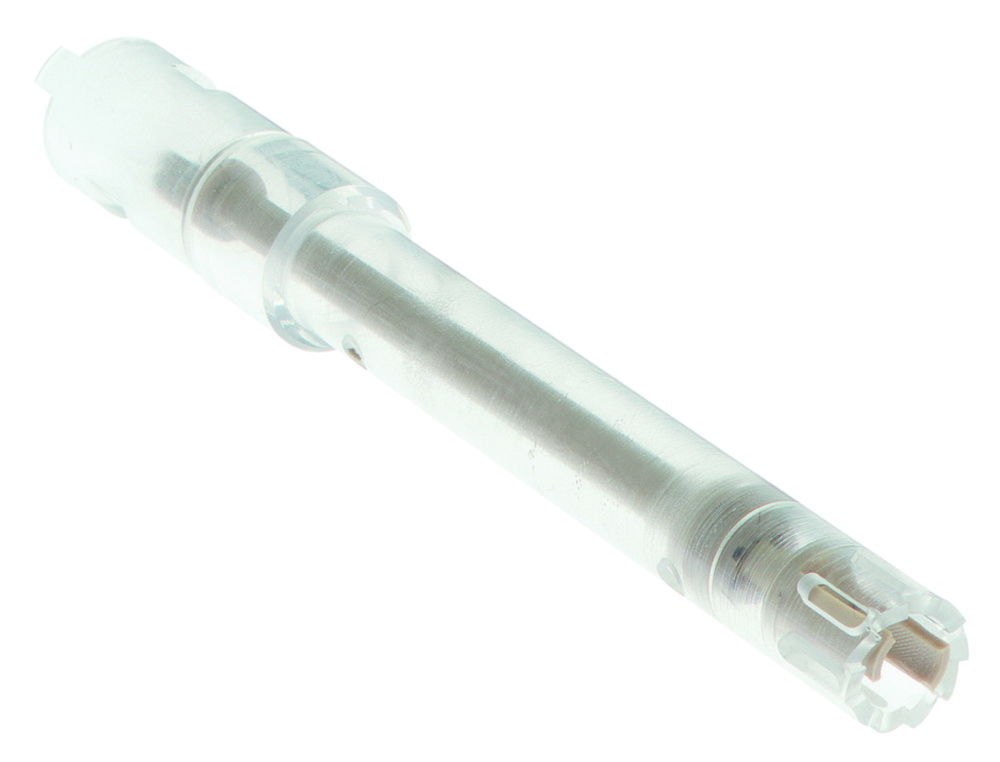

| 6.8 mm | T 18 brushless digital, T 18 digital, T 18 mini digital | PC/PEEK | 85 mm | 100 °C | 15 mm | 9.570 855 | 10 mm | S 18 D-10 G-KS | 10 ... 100 ml | 12.00 | ||
| 9.8 mm | T 18 brushless digital, T 18 digital, T 18 mini digital | PC/PEEK | 85 mm | 100 °C | 15 mm | 9.570 857 | 14 mm | S 18 D-14 G-KS | 10 ... 500 ml | 12.00 | ||
| 12.7 mm | T 18 brushless digital, T 18 digital, T 18 mini digital | PTFE/Stainless steel | 170 mm | 180 °C | 35 mm | 9.570 842 | 19 mm | S 18 N - 19 G | 10 ... 1500 ml | 1.00 |
