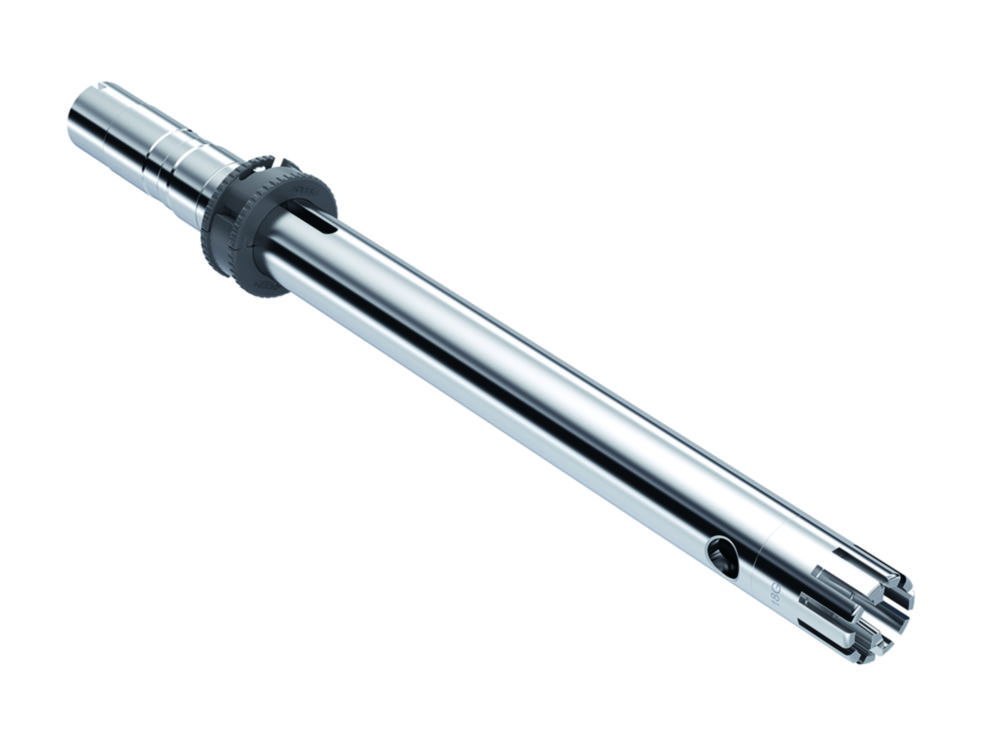

Dispersing heads for T 25 easy clean digital / T 25 easy clean control
Easy to clean dispersing head made of stainless steel (AISI 316) and ceramic. Ultimate fineness: emulsions 1µm to 10 µm and suspensions 10 µm to 50 µm, sterilisable by all methods.
S 25 EC-T-C-25G-ST, S 25 EC-T-C-25F with integrated temperature sensor.
Toote variatsioonid
| Ø rotor | Material | Max. immersion depth | Max. temperature | Min. immersion depth | Catalog number | Stator Ø | Type | Working volume | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 mm | Stainless steel/Ceramic | 150 mm | 180 °C | 35 mm | 4.672 774 | 25 mm | S 25 EC-C-25 G-ST | 50 ... 2000 ml | 1.00 | ||
| 20 mm | Stainless steel/Ceramic | 150 mm | 120 °C | 45 mm | 4.672 776 | 25 mm | S 25 EC-T-C-25 G-ST | 50 ... 2000 ml | 1.00 | ||
| 13.4 mm | Stainless steel/Ceramic | 150 mm | 120 °C | 45 mm | 4.684 826 | 18 mm | S 25 EC-T-C-18 G-ST | 10 ... 1500 ml | 1.00 | ||
| 18 mm | Stainless steel/Ceramic | 150 mm | 120 °C | 45 mm | 4.672 777 | 25 mm | S 25 EC-T-C-25 F | 100 ... 2000 ml | 1.00 | ||
| 12.7 mm | Stainless steel/Ceramic | 150 mm | 180 °C | 35 mm | 4.684 822 | 18 mm | S 25 EC-C-18 G | 10 ... 1500 ml | 1.00 | ||
| 18 mm | Stainless steel/Ceramic | 150 mm | 180 °C | 35 mm | 4.672 775 | 25 mm | S 25 EC-C-25 F | 100 ... 2000 ml | 1.00 | ||
| 17 mm | Stainless steel/Ceramic | 150 mm | 120 °C | 45 mm | 4.684 825 | 25 mm | S 25 EC-T-C-25 G | 50 ... 2000 ml | 1.00 | ||
| 13.4 mm | Stainless steel/Ceramic | 150 mm | 180 °C | 35 mm | 6.291 623 | 18 mm | S 25 EC-C-18 G-ST | 10 ... 1500 ml | 1.00 | ||
| 17 mm | Stainless steel/Ceramic | 150 mm | 180 °C | 35 mm | 4.684 823 | 25 mm | S 25 EC-C-25 G | 50 ... 2000 ml | 1.00 | ||
| 12.7 mm | Stainless steel/Ceramic | 150 mm | 120 °C | 45 mm | 4.684 824 | 18 mm | S 25 EC-T-C-18 G | 10 ... 1500 ml | 1.00 |
