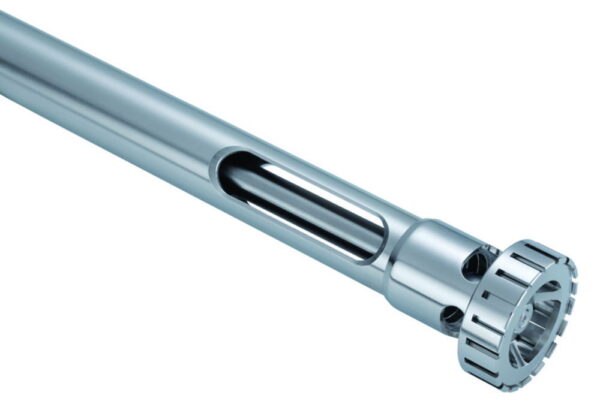

Dispersing heads for T50 digital ULTRA-TURRAX®
Stainless steel dispersing heads
Toote variatsioonid
| Type | Ult. fineness suspensions / emulsions µm | Material | Max. immersion depth mm | Diam. rotor / stator mm | Working volume l | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| S 50 KD - G 45 M | 25 - 50 / 5 - 20 | FFKM, PTFE, AISI 316L | 300 | 40.0 / 45 | 0.5 - 15 | 4.656 098 | 1.00 | ||
| S 50 KG - HH - G 45 F | 10 - 30 / 1 - 10 | FFPM/SIC, AISI 316L | 250 | 40.0 / 45 | 0.25 - 10 | 9.570 898 | 1.00 | ||
| S 50 KD - G 45 G | 40 - 100 / 10 - 30 | FFKM, PTFE, AISI 316L | 260 | 36.0 / 45 | 0.5 - 20 | 4.656 096 | 1.00 | ||
| S 50 KD - G 45 G - ST | 40 - 100 / 10 - 30 | FFKM, PTFE, AISI 316L | 300 | 38.0 / 45 | 0.5 - 20 | 4.656 097 | 1.00 | ||
| S 50 KG-HH-G 45 G | 40 - 100 / 10 - 30 | FFPM/SIC, AISI 316L | 260 | 36.0 / 45 | 0.5 - 20 | 9.570 884 | 1.00 | ||
| S 50 N - G 45 F* | 10 - 30 / 1 - 10 | PTFE, AISI 316L | 250 | 40.0 / 45 | 0.25 - 10 | 9.570 896 | 1.00 | ||
| S 50 KD - G 45 F | 10 - 30 / 1 - 10 | FFPM, PTFE, AISI 316L | 300 | 40.0 / 45 | 0.25 - 10 | 4.656 099 | 1.00 | ||
| S 50 N - G 45 G* | 40 - 100 / 10 - 30 | PTFE, AISI 316L | 250 | 36.0 / 45 | 0.5 - 20 | 9.570 882 | 1.00 | ||
| S 50 KG - HH - G 45 G - ST | 40 - 100 / 10 - 30 | FFPM, WC, AISI 316L | 260 | 38.0 / 45 | 0.5 - 20 | 4.656 100 | 1.00 | ||
| S 50 N - G 45 M* | 25 - 50 / 5 - 20 | PTFE, AISI 316L | 250 | 40.5 / 45 | 0.5 - 15 | 9.570 886 | 1.00 | ||
| S 50 KG-HH-G 45 M | 25 - 50 / 5 - 20 | FFPM/SIC, AISI 316L | 250 | 40.5 / 45 | 0.5 - 15 | 9.570 888 | 1.00 | ||
| S 50 N - G 45 G - ST | 40 - 100 / 10 - 30 | PTFE, AISI 316L | 300 | 38.0 / 45 | 0.5 - 20 | 6.262 646 | 1.00 |
