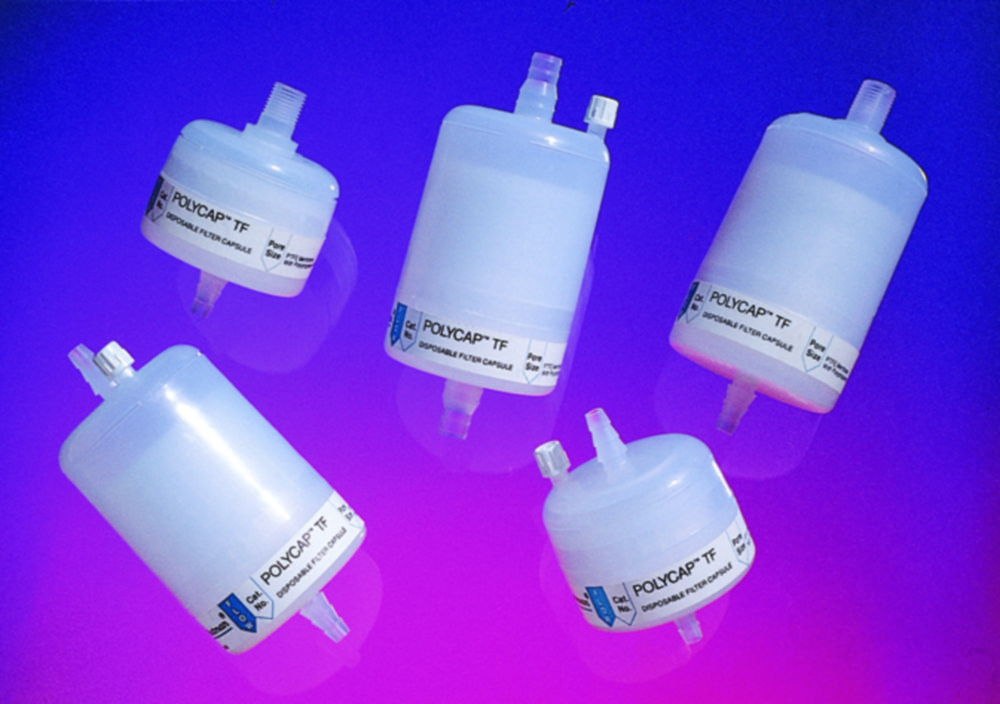

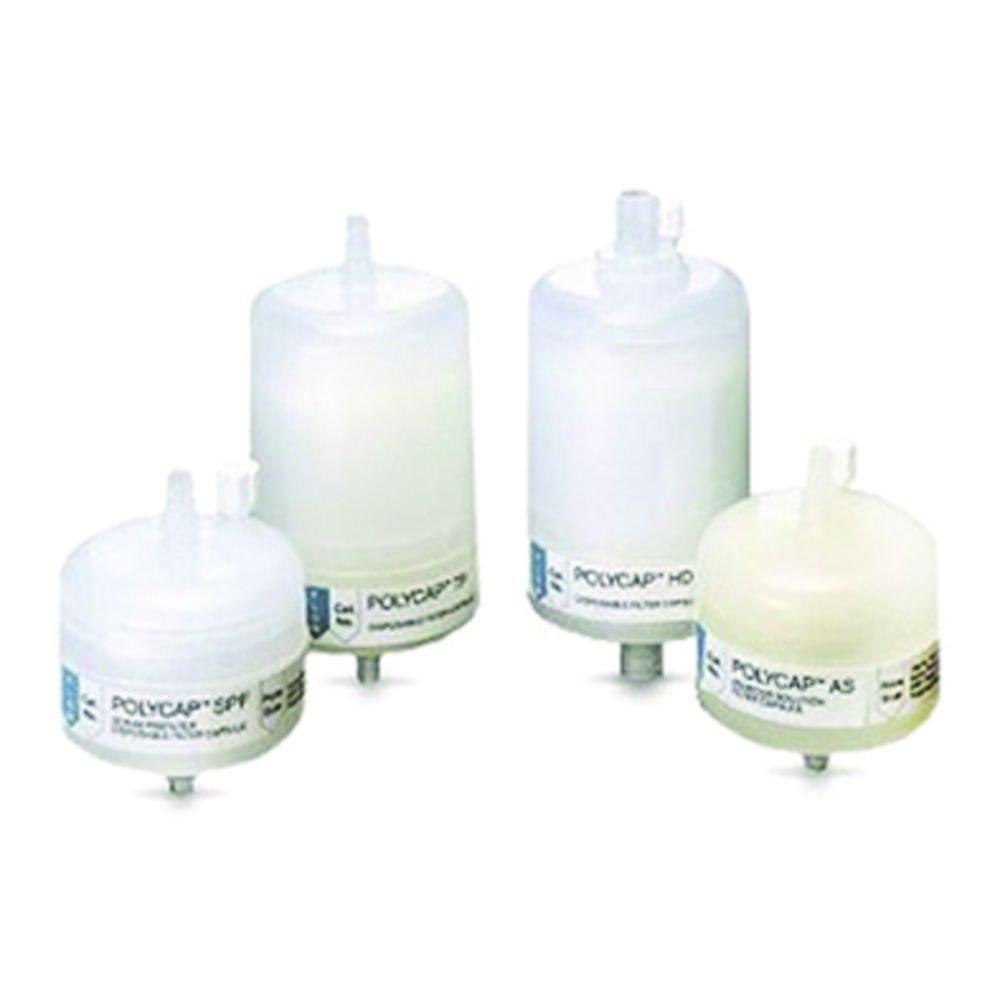

Disposable Filtration Capsules, Polycap TF™
Hydrophobic PTFE membrane for applications involving organic solvents and chemically aggressive solutions.
- Maximum operating pressure of 4.1 bar forward and 3.0 bar reverse
- 1 µm capsules incorporate a PP prefilter
- Autoclavable up to 132 °C maximum
- Connectors: stepped barb (SB) and female national pipe thread (FNPT)
Toote variatsioonid
| Catalog number | PK | Autoclavable | Connection size | Connetion outlet | Ø filter | Feature | Material housing | Material membrane | Pore size | Sterile | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.280 995 | 1.00 | Yes | 3/8 ... 1/2“ | SB | 75 mm | Hydrophobic | PP | PTFE | 0,2 µm | No | ||
| 9.951 128 | 1.00 | Yes | 1/4 ... 3/8“ | SB | 75 mm | Hydrophobic | PP | PTFE | 0,2 µm | No | ||
| 6.235 690 | 1.00 | Yes | 1/4 ... 3/8“ | SB | 75 mm | Hydrophobic | PP | PTFE | 0,45 µm | No | ||
| 6.803 130 | 5.00 | Yes | 3/8“ | FNPT | 36 mm | Hydrophobic | PP | PTFE | 0,2 µm | No | ||
| 6.803 246 | 5.00 | Yes | 3/8“ | FNPT | 75 mm | Hydrophobic | PP | PTFE | 0,2 | No | ||
| 9.951 126 | 1.00 | Yes | 1/4 ... 3/8“ | SB | 36 mm | Hydrophobic | PP | PTFE | 0,2 µm | No | ||
| 9.951 127 | 1.00 | Yes | 1/4 ... 3/8“ | SB | 36 mm | Hydrophobic | PP | PTFE | 1,0 µm | No | ||
| 9.951 129 | 1.00 | Yes | 3/8 ... 1/2“ | SB | 75 mm | Hydrophobic | PP | PTFE | 1,0 µm | No |
