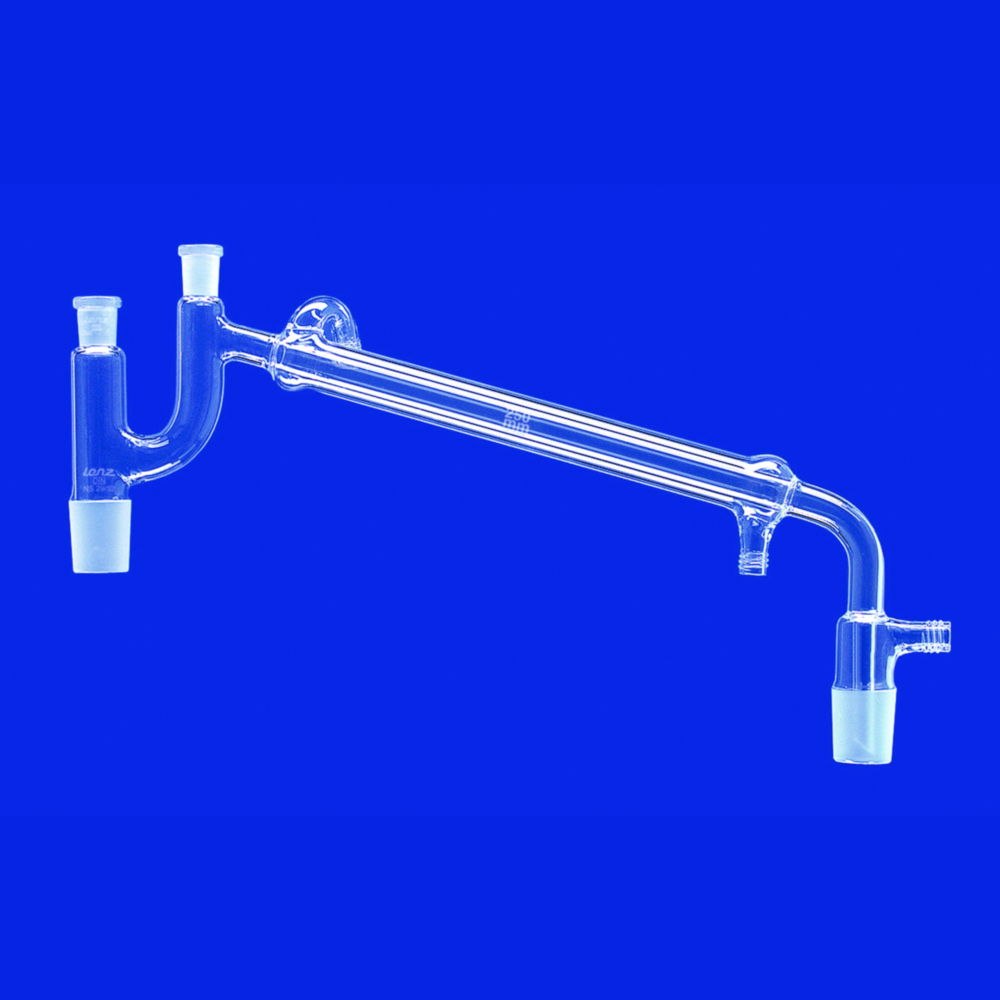

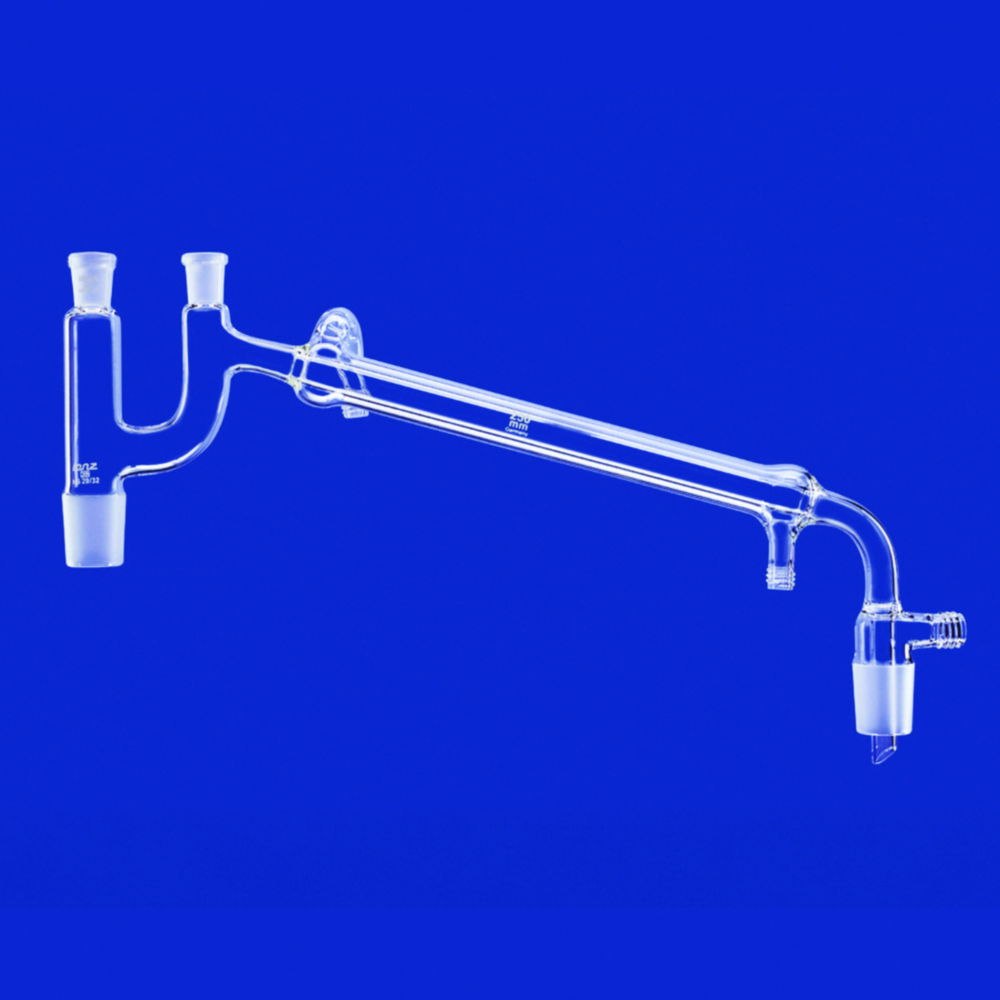

Distilling links acc. to Claisen with vacuum receiver adapter and GL thread, DURAN® tubing
Made of DURAN® tubing. Distilling links acc. to DIN 12594, with Liebig condenser and Claisen head, thread connections: GL 14 (water) and GL 18 (vacuum), with two sockets NS 14/23 for distillation thermometers of 55mm built-in length.
Toote variatsioonid
| Cone[s] | Length jacket | Material | Catalog number | Socket[s] | Standard | Thermometer usable | With condenser | With vacuum receiver | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NS14/23 | 160 mm | DURAN® tubing | 9.012 272 | NS14/23 | DIN 12594 | Yes | Yes | Yes | 1.00 | ||
| NS29/32 | 400 mm | DURAN® tubing | 9.012 279 | NS14/23 | DIN 12594 | Yes | Yes | Yes | 1.00 | ||
| NS14/23 | 250 mm | DURAN® tubing | 9.012 274 | NS14/23 | DIN 12594 | Yes | Yes | Yes | 1.00 | ||
| NS29/32 | 250 mm | DURAN® tubing | 9.012 275 | NS14/23 | DIN 12594 | Yes | Yes | Yes | 1.00 |
