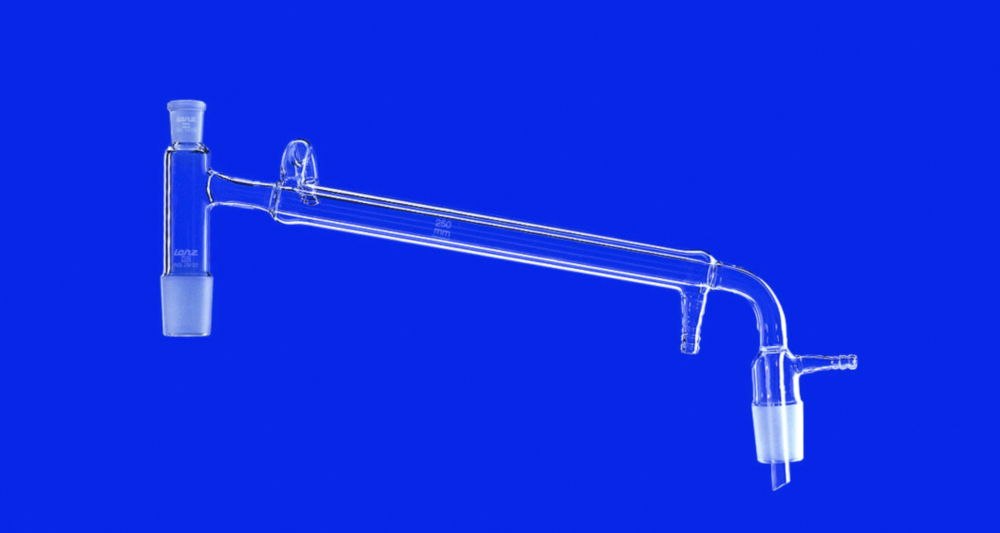

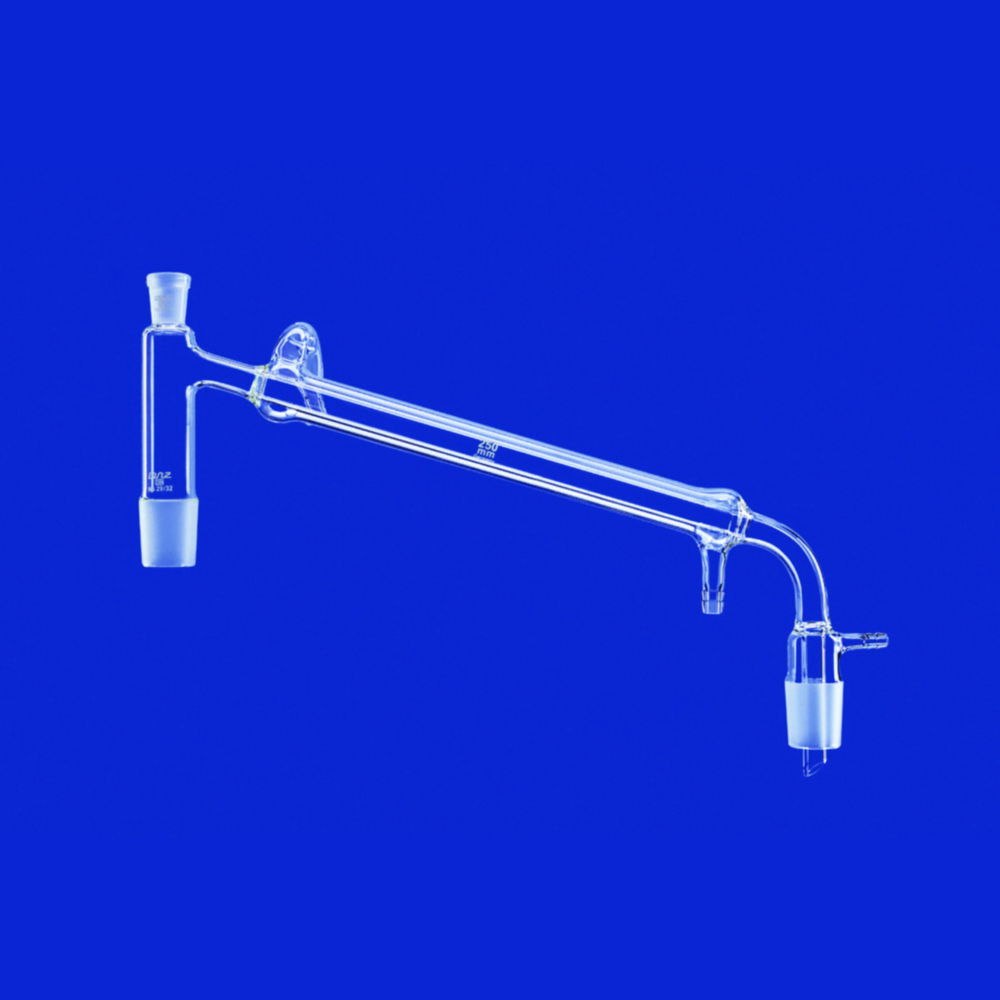

Distilling links with Liebig condenser and vacuum receiver adapter, DURAN® tubing
Made of DURAN® tubing. DIN 12596. With Liebig condenser at 75° and vertical outlet with NS cone and vacuum connection with glass olives or thread GL14. With socket NS 14/23 for distillation thermometers of 55mm built-in length.
Toote variatsioonid
| Cone[s] | Connection | Length jacket | Material | Catalog number | Socket[s] | Thermometer usable | With condenser | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| NS14/23 | Glass olive | 250 mm | DURAN® tubing | 9.012 263 | NS14/23 | Yes | Yes | 1.00 | ||
| NS14/23 | Glass olive | 160 mm | DURAN® tubing | 9.012 261 | NS14/23 | Yes | Yes | 1.00 | ||
| NS14/23 | Sleeve connection | 160 mm | DURAN® tubing | 6.203 415 | NS14/23 | Yes | Yes | 1.00 | ||
| NS14/23 | Sleeve connection | 250 mm | DURAN® tubing | 9.012 264 | NS14/23 | Yes | Yes | 1.00 | ||
| NS29/32 | Sleeve connection | 250 mm | DURAN® tubing | 6.203 416 | NS14/23 | Yes | Yes | 1.00 | ||
| NS29/32 | Glass olive | 400 mm | DURAN® tubing | 9.012 268 | NS14/23 | Yes | Yes | 1.00 | ||
| NS29/32 | Glass olive | 250 mm | DURAN® tubing | 9.012 266 | NS14/23 | Yes | Yes | 1.00 |
