Dräger Aerotest Alpha
The Dräger Aerotest Alpha allows the quality of breathing air supplied by a compressor or compressed gas cylinder to be determined. Use of the test system performs a reliable check in accordance with the breathing air standard EN 12 021.
Dräger Aerotest Alpha

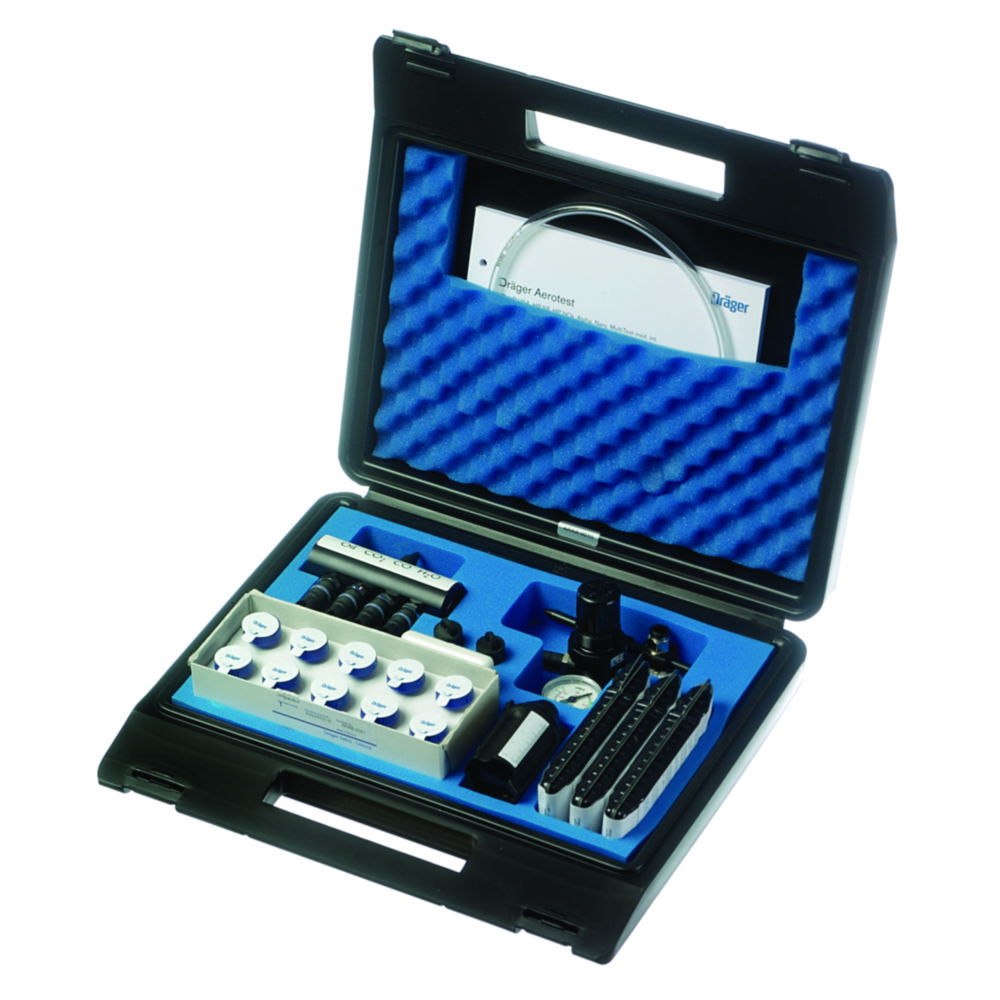

comprising of 1 pressure reducer, measuring device for 4 tubes, impactor adapter, coupling, barbed nipple, stopwatch, tube opener Dräger TO 7000, bubble test hose, pack of 5 sintered filters, instruction for use, transport case (black)
Dräger Aerotest Alpha, with Dräger Tubes :
Dräger Aerotest Alpha
+ box of 10 Dräger Oil Impactors,
+ box of 10 Dräger-Tubes carbon dioxide (CO2) 100/a-P,
+ box of 10 Dräger-Tubes carbon monoxide (CO) 5/a-P,
+ box of 10 Dräger-Tubes water vapor (H2O) 20/a-P
- Specifications
- Dimensions of carrying case (L x W x H) 350 x 300 x 85 mm
- Weight, including contents approx. 3.0 kg
-
Max. supply pressure
Supply pressure (set on delivery) 15 bar
3.0 bar - Pressure gauge 0.3 to 15 bar
- Connection for compressed air supply barbed nipple 9 mm
- Flow rate 0.2 and 4.0 l/min
Toote variatsioonid
| Description | Catalog number | PK | Kogus | |
|---|---|---|---|---|
| Oil 10/a-P | 6.078 279 | 10.00 | ||
| Water Vapor 5/a-P | 6.087 703 | 10.00 | ||
| Oil-impactor | 6.241 225 | 10.00 | ||
| Carbon monoxide 5/a-P | 6.801 977 | 10.00 | ||
| Dräger Aerotest Alpha, with Dräger Tubes | 7.629 381 | 1.00 | ||
| Water vapour 20/a-p | 6.801 979 | 10.00 | ||
| Carbon dioxide 100/a-P | 6.801 978 | 10.00 | ||
| Dräger Aerotest Alpha | 6.241 227 | 1.00 |
