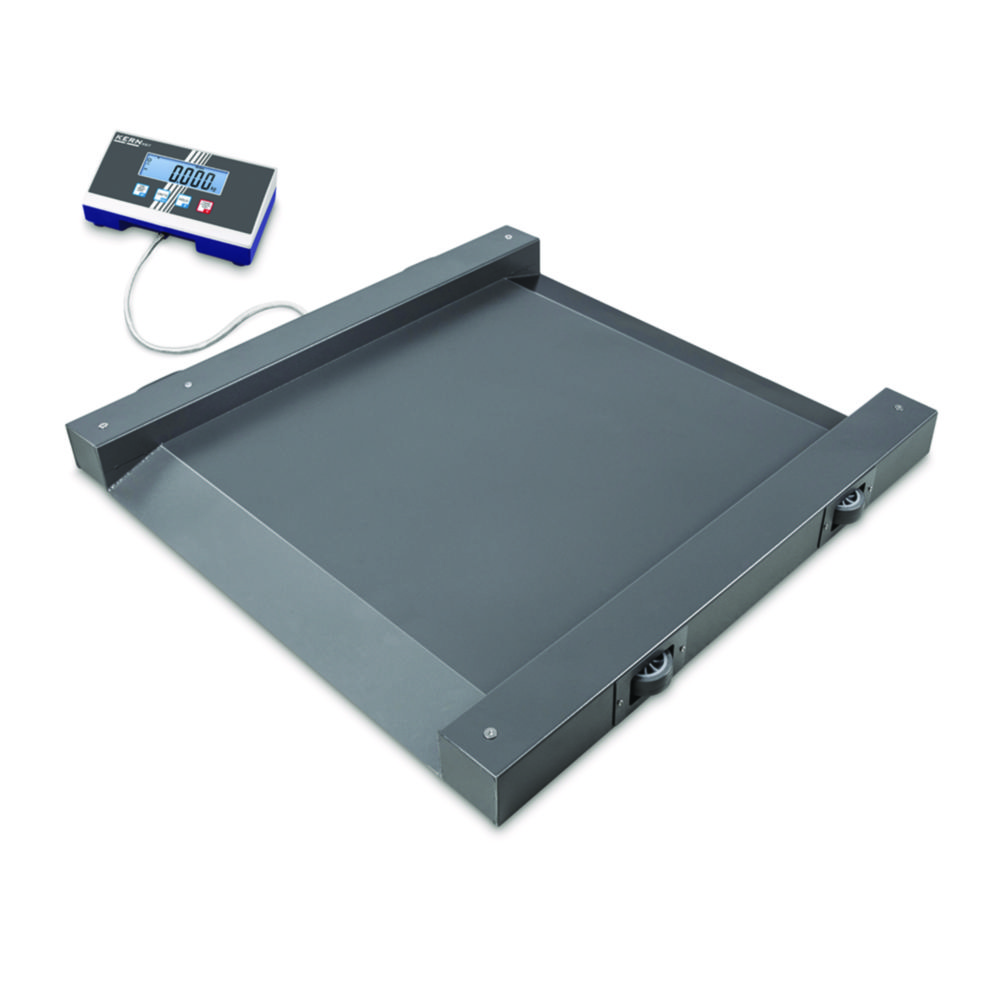

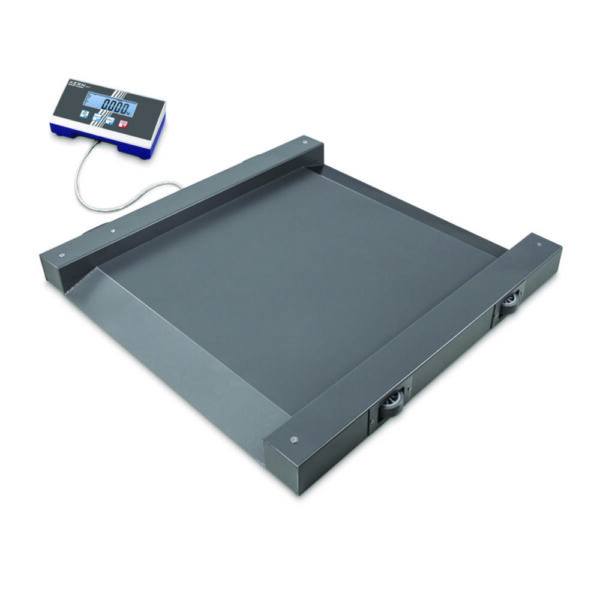

Drive-through scale NIB
Drive-through scale for rapid weighing of e.g. wire cage trolleys, shelf trolleys, container trolleys, storage trolleys, sack trucks, mobile containers, containers refuse etc.
- Large LCD display
- Weighing bridge made of powder coated steel
- 4 silicon-coated aluminium load cells with protection against dust and water splashes to IP67
- Level indicator to level the balance precisely
- With rollers and a handle
- Dimensions of display device (WxDxH): 235×114×51 mm
Scope of supply: Drive-through scale, wall mount for the display device, protective working cover
Toote variatsioonid
| Adjusting program | Depth | Depth weighing plate | Dimensions (WxDxH) | Height | Material housing | Max. load | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Readability | Reproducibility | Type | Waranty | Weighing plate (WxD) | Weight | Width | Width weighing plate | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| External | 1000 mm | 800 mm | 1,000 x 1,000 x 80 mm | 80 mm | Plastic | 600 kg | 240 V·AC | 100 V | 4.709 596 | EU/CH/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0.2 kg | 0.2 kg | NIB 600K-2 | 3 years | 800 x 800 mm | 40 kg | 1000 mm | 800 mm | 1.00 | ||
| External | 1000 mm | 800 mm | 1,000 x 1,000 x 80 mm | 80 mm | Plastic | 300 kg | 240 V·AC | 100 V | 4.682 504 | EU/CH/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0.1 kg | 0.1 kg | NIB 300K-1 | 3 years | 800 x 800 mm | 40 kg | 1000 mm | 800 mm | 1.00 |
