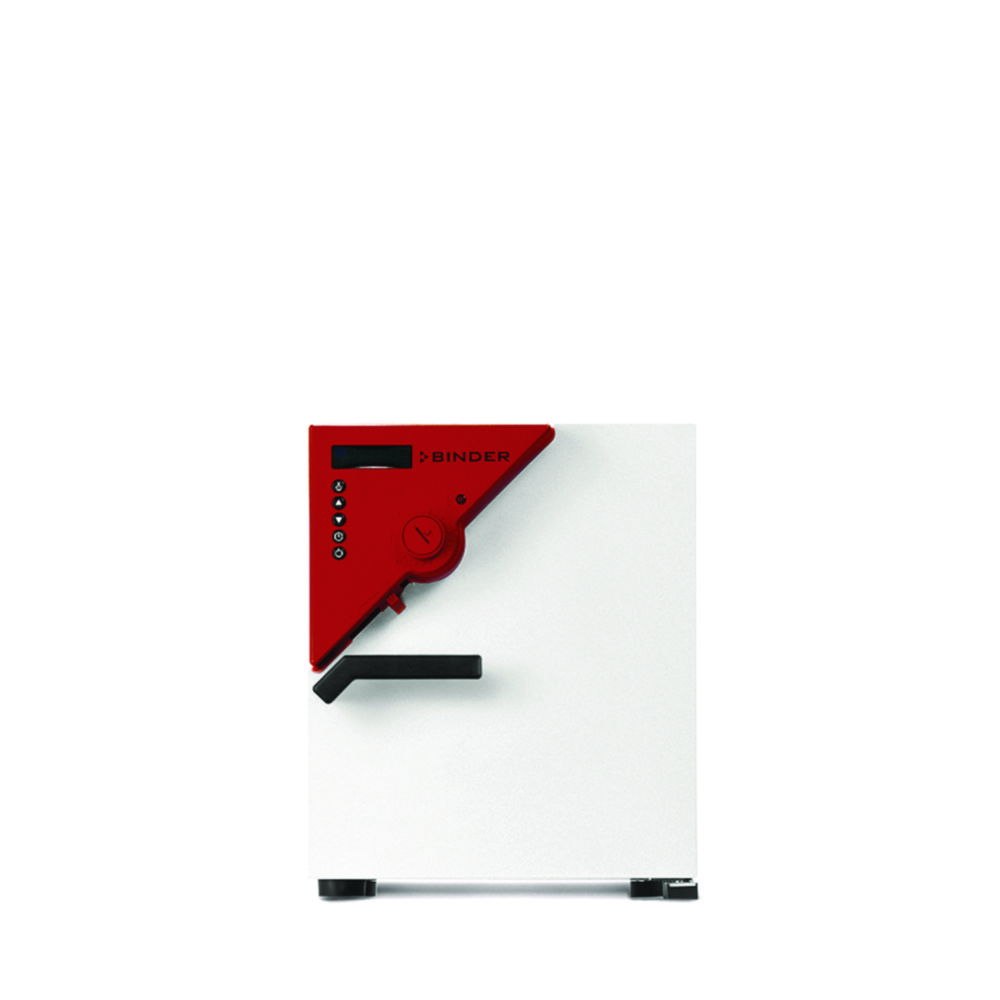

Drying and heating chambers FD Classic.Line
- With forced convection
- Controller with timer functions
Toote variatsioonid
| Depth int. | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Height int. | Internal dimensions (WxDxH) | Int. width | IP code | Material interior | Max. no. of inserts | Max. temperature | Max. voltage | Min. temperature | Nominal capacity | Catalog number | Plug type | Power supply | Rated capacity | Temp. Stability | Temperature | Temperature | Type | Weight | With timer | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 300 mm | 435 x 520 x 495 mm | 520 mm | 495 mm | 435 mm | 330 mm | 222 x 300 x 330 mm | 222 mm | IP 20 | Stainless steel | 4 | 300 °C | 120 V | 5 °C | 20 l | 9.883 615 | US | 120 V, 60 Hz | 0.8 kW | ±0,3 K (150 °C) | RT | RT+5 ... 300 °C | FD 23UL | 27 kg | Yes | 1.00 | ||
| 300 mm | 435 x 520 x 495 mm | 520 mm | 495 mm | 435 mm | 330 mm | 222 x 300 x 330 mm | 222 mm | IP 20 | Stainless steel | 4 | 300 °C | 230 V | 5 °C | 20 l | 9.883 808 | EU | 230 V, 50...60 Hz | 0.8 kW | ±0,3 K (150 °C) | RT | RT+5 ... 300 °C | FD 23 | 27 kg | Yes | 1.00 |
