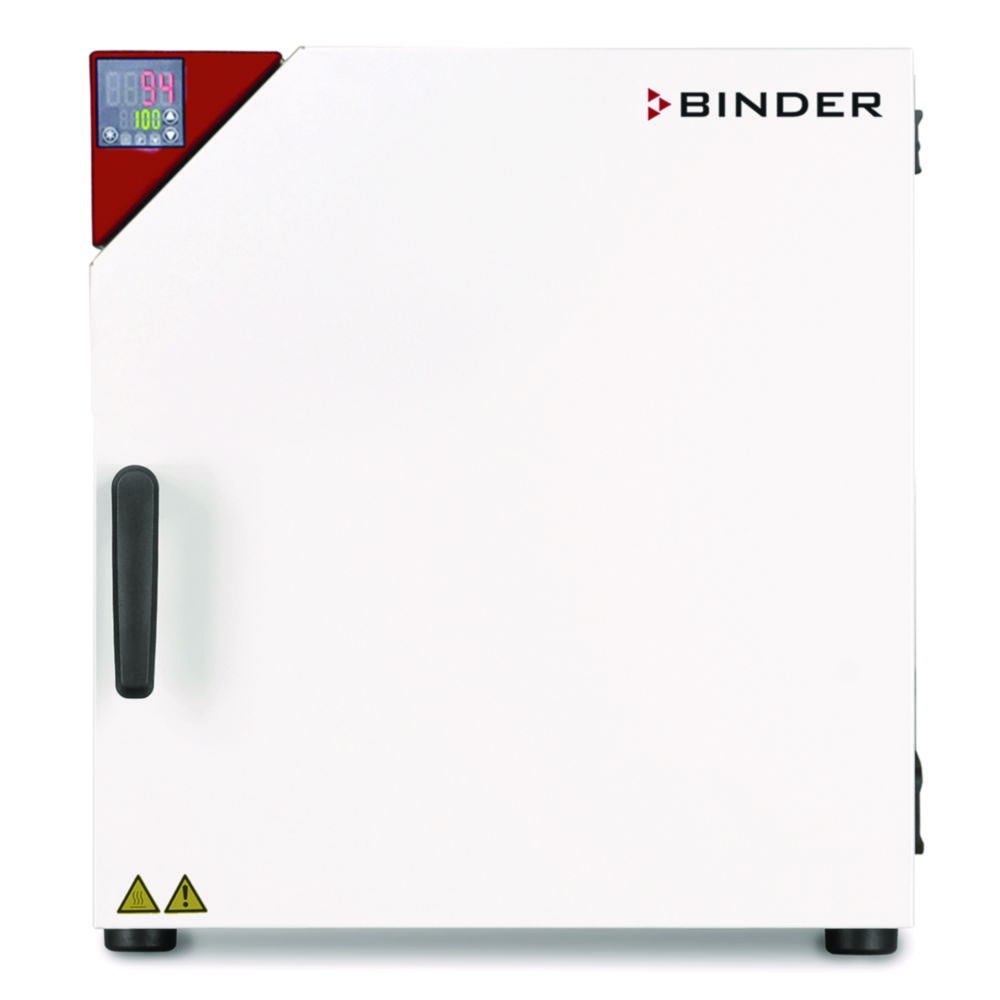

Drying and heating chambers FD-S Solid.Line

With forced convection for homogenous temperature distribution.

Toote variatsioonid

Depth int.	External dimensions (WxDxH)	Ext. depth	Ext. height	Ext. width	Height int.	Internal dimensions (WxDxH)	Int. width	IP code	Material interior	Max. no. of inserts	Max. temperature	Max. voltage	Min. temperature	Nominal capacity	Catalog number	Plug type	Power supply	Rated capacity	Temp. Stability	Temperature	Temperature	Type	Weight	With timer	PK
350 mm	764 x 616 x 735 mm	616 mm	735 mm	764 mm	550 mm	550 x 350 x 550 mm	550 mm	IP 20	Stainless steel	5	250 °C	120 V	-10 °C	106 l	4.705 568	US	120 V, 60 Hz	1.4 kW	±0,4 K (150 °C)	RT	RT+10 ... 250 °C	FD-S 115UL	48 kg	Yes	1.00
310 mm	614 x 577 x 625 mm	577 mm	625 mm	614 mm	440 mm	400 x 310 x 440 mm	400 mm	IP 20	Stainless steel	3	250 °C	120 V	-10 °C	55 l	4.705 567	US	120 V, 60 Hz	1.2 kW	±0,4 K (150 °C)	RT	RT+10 ... 250 °C	FD-S 56UL	35 kg	Yes	1.00
310 mm	614 x 577 x 625 mm	577 mm	625 mm	614 mm	440 mm	400 x 310 x 440 mm	400 mm	IP 20	Stainless steel	3	250 °C	230 V	-10 °C	55 l	4.665 196	EU	230 V, 50...60 Hz	1.1 kW	±0,4 K (150 °C)	RT	RT+10 ... 250 °C	FD-S 56	35 kg	Yes	1.00
350 mm	764 x 616 x 735 mm	616 mm	735 mm	764 mm	550 mm	550 x 350 x 550 mm	550 mm	IP 20	Stainless steel	5	250 °C	230 V	-10 °C	106 l	4.665 522	EU	230 V, 50...60 Hz	1.3 kW	±0,4 K (150 °C)	RT	RT+10 ... 250 °C	FD-S 115	48 kg	Yes	1.00
