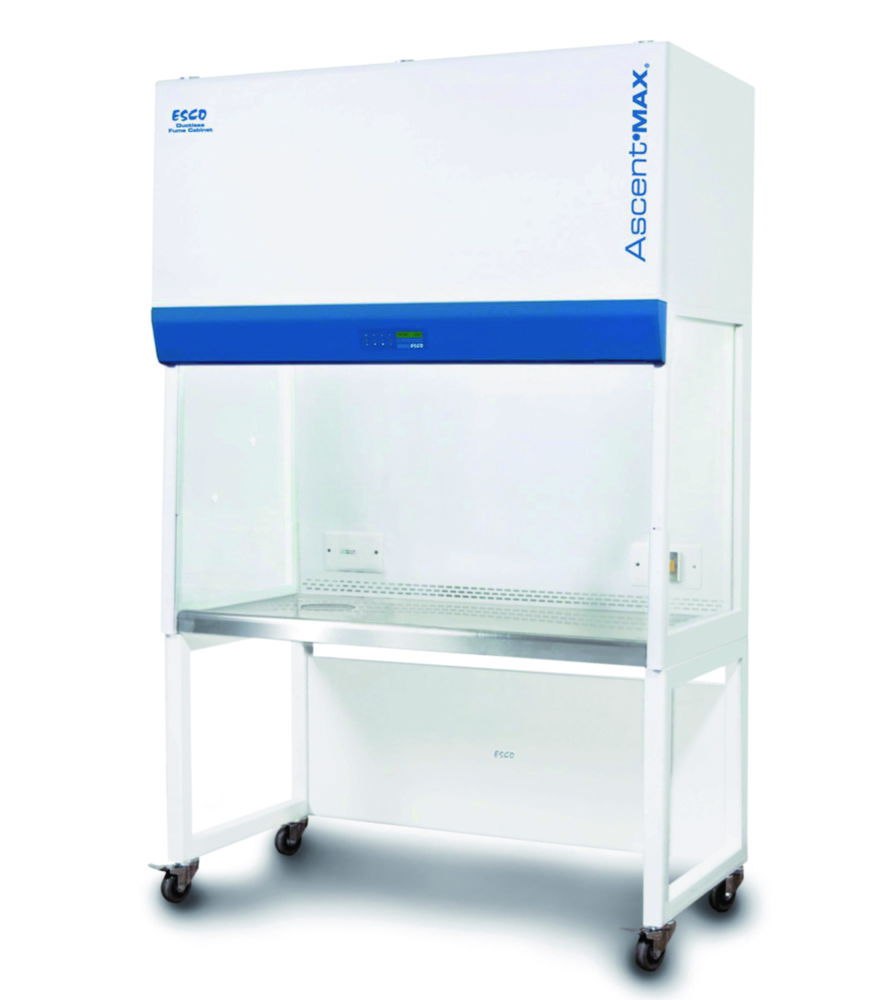

Ductless Fume Hoods Type Ascent™ Max

Compact, energy saving fume hood without ducting system.

Independently tested and complies with AFNOR NFX 15-211 standard
Easy Filter Change
Average Inflow Air Velocity: 0,4m/s
Sentinel-Microprocessor with LCD-Display, air velocity alarm and 24-hour-clock
Fluorescent lighting provides superior illumination of the work zone
Tempered glass sliding sash
Tempered glass side panel
ISOCIDE™ antimicrobial coating on all painted surfaces minimizes contamination.
Stainless steel worktop

Model variations:
Model type B: Pre-filter, main filter (activated carbon, different filter types available)
Model type C: Pre-filter, main filter (activated carbon, different filter types available), back-up filter (activated carbon, different filter types available)
Model type E: Pre-filter, main filter (activated carbon, different filter types available), back-up filter (HEPA filter)

Options on request:
Filter, electrical outlet, VOC sensor, service fixture, swan-neck faucet, Drip Cup (PP), support stand, installation

For operation the main filters and the back-up filter (Modell type C) have to be ordered separately.

Toote variatsioonid

Depth int.	External dimensions (WxDxH)	Ext. depth	Ext. height	Ext. width	Height int.	Internal dimensions (WxDxH)	Int. width	Max. voltage	Min. voltage	Catalog number	Power supply	Rated capacity	Type	PK
596 mm	1,035 x 736 x 1,455 mm	736 mm	1455 mm	1035 mm	765 mm	965 x 596 x 765 mm	965 mm	240 V·AC	220 V·AC	4.658 983	220 ... 240 V·AC, 50 Hz , 3.5 A	236 W	ADC-3B1	1.00
596 mm	1,340 x 736 x 1,455 mm	736 mm	1455 mm	1340 mm	765 mm	1,268 x 596 x 765 mm	1268 mm	240 V·AC	220 V·AC	4.658 984	220 ... 240 V·AC, 50 Hz , 3.5 A	264 W	ADC-4B1	1.00
596 mm	1,035 x 736 x 1,455 mm	736 mm	1455 mm	1035 mm	765 mm	965 x 596 x 765 mm	965 mm	240 V·AC	220 V·AC	4.658 987	220 ... 240 V·AC, 50 Hz , 3.5 A	236 W	ADC-3C1	1.00
596 mm	1,950 x 736 x 1,455 mm	736 mm	1455 mm	1950 mm	765 mm	1,880 x 596 x 765 mm	1880 mm	240 V·AC	220 V·AC	4.658 986	220 ... 240 V·AC, 50 Hz , 4 A	339 W	ADC-6B1	1.00
596 mm	730 x 736 x 1,460 mm	736 mm	1460 mm	730 mm	765 mm	660 x 596 x 765 mm	660 mm	240 V·AC	220 V·AC	4.658 982	220 ... 240 V·AC, 50 Hz , 3.5 A	128 W	ADC-2B1	1.00
596 mm	1,340 x 736 x 1,455 mm	736 mm	1455 mm	1340 mm	765 mm	1,268 x 596 x 765 mm	1268 mm	240 V·AC	220 V·AC	4.658 989	220 ... 240 V·AC, 50 Hz , 3.5 A	264 W	ADC-4C1	1.00
596 mm	1,340 x 736 x 1,455 mm	736 mm	1455 mm	1340 mm	765 mm	1,268 x 596 x 765 mm	1268 mm	240 V·AC	220 V·AC	4.658 996	220 ... 240 V·AC, 50 Hz , 3.5 A	264 W	ADC-4E1	1.00
596 mm	1,645 x 736 x 1,455 mm	736 mm	1455 mm	1645 mm	765 mm	1,575 x 596 x 765 mm	1575 mm	240 V·AC	220 V·AC	4.658 990	220 ... 240 V·AC, 50 Hz , 4 A	300 W	ADC-5C1	1.00
596 mm	1,035 x 736 x 1,455 mm	736 mm	1455 mm	1035 mm	765 mm	965 x 596 x 765 mm	965 mm	240 V·AC	220 V·AC	4.658 992	220 ... 240 V·AC, 50 Hz , 3.5 A	236 W	ADC-3E1	1.00
596 mm	1,950 x 736 x 1,455 mm	736 mm	1455 mm	1950 mm	765 mm	1,880 x 596 x 765 mm	1880 mm	240 V·AC	220 V·AC	4.658 991	220 ... 240 V·AC, 50 Hz , 4 A	339 W	ADC-6C1	1.00
596 mm	1,645 x 736 x 1,455 mm	736 mm	1455 mm	1645 mm	765 mm	1,575 x 596 x 765 mm	1575 mm	240 V·AC	220 V·AC	4.658 997	220 ... 240 V·AC, 50 Hz , 4 A	300 W	ADC-5E1	1.00
596 mm	1,645 x 736 x 1,455 mm	736 mm	1455 mm	1645 mm	765 mm	1,575 x 596 x 765 mm	1575 mm	240 V·AC	220 V·AC	4.658 985	220 ... 240 V·AC, 50 Hz , 4 A	300 W	ADC-5B1	1.00
