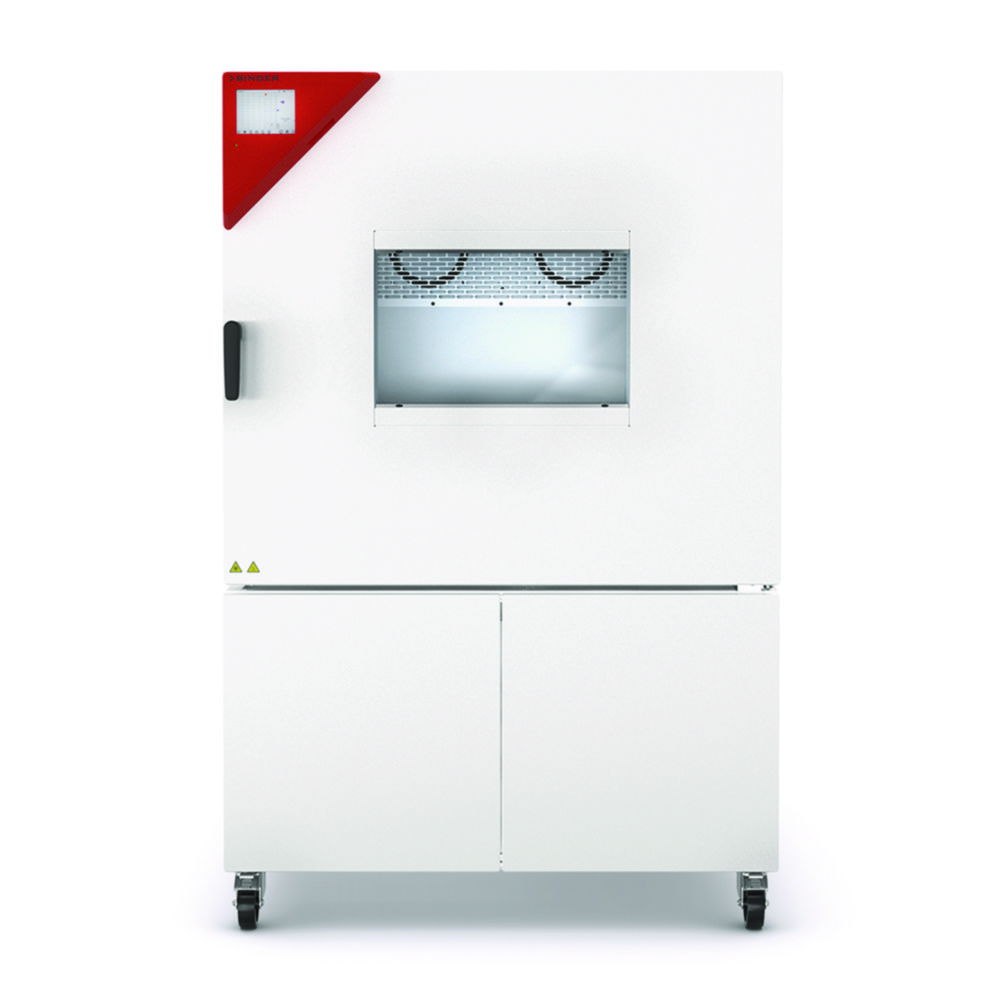

Dynamic climate chambers MKF, with humidity control

Humidity regulation with capacitive humidity sensor and responsive steam humidification

Automatic water and wastewater management

Integrated 20 l water storage tank

4 zero-voltage relay contacts

CFC-free refrigerant R-452A

Models with 480 V nominal voltage are equipped with a voltage and frequency converter.

Toote variatsioonid

Depth int.	External dimensions (WxDxH)	Ext. depth	Ext. height	Ext. width	Height int.	Internal dimensions (WxDxH)	Int. width	Material inserts	Material interior	Max. no. of inserts	Max. temperature	Max. voltage	Min. temperature	Min. voltage	Nominal capacity	Catalog number	Plug type	Power supply	Rated capacity	Temp. Stability	Temperature	Type	Weight	With CO2 control	PK
348 mm	720 x 780 x 1445 mm	780 mm	1445 mm	720 mm	420 mm	400 x 348 x 420 mm	400 mm	Stainless steel	Stainless steel	4	180 °C	230 V	-40 °C	200 V	60 l	7.984 336	EU	200 ... 230 V, 50 Hz	2.8 kW	0,1 ... 0,5 K	-40 ... 180 °C	MKF 56	175 kg	No	1.00
810 mm	1,115 x 1,400 x 1710 mm	1400 mm	1710 mm	1115 mm	700 mm	735 x 810 x 700 mm	735 mm	Stainless steel	Stainless steel	6	180 °C	400 V·3/N/PE	-40 °C	-	417 l	4.685 704	CEE	400 V·3/N/PE, 50 Hz	8 kW	0,1 ... 0,5 K	-40 ... 180 °C	MKF 400	432 kg	No	1.00
348 mm	720 x 780 x 1445 mm	780 mm	1445 mm	720 mm	420 mm	400 x 348 x 420 mm	400 mm	Stainless steel	Stainless steel	4	180 °C	240 V	-40 °C	200 V	60 l	4.705 664	US	200 ... 240 V, 60 Hz	2.8 kW	0,1 ... 0,5 K	-40 ... 180 °C	MKF 56	175 kg	No	1.00
810 mm	1,115 x 1,400 x 1710 mm	1400 mm	1710 mm	1115 mm	700 mm	735 x 810 x 700 mm	735 mm	Stainless steel	Stainless steel	6	180 °C	480 V	-40 °C	-	417 l	4.685 705	CEE	480 V, 60 Hz	8 kW	0,1 ... 0,5 K	-40 ... 180 °C	MKF 400	432 kg	No	1.00
810 mm	1,580 x 1,480 x 2005 mm	1480 mm	2005 mm	1580 mm	1020 mm	1,200 x 810 x 1020 mm	1200 mm	Stainless steel	Stainless steel	11	180 °C	480 V	-40 °C	-	991 l	4.685 707	CEE	480 V, 60 Hz	12.5 kW	0,1 ... 0,5 K	-40 ... 180 °C	MKF 1020	636 kg	No	1.00
400 mm	980 x 865 x 1725 mm	865 mm	1725 mm	980 mm	480 mm	600 x 400 x 480 mm	600 mm	Stainless steel	Stainless steel	4	180 °C	480 V	-40 °C	-	115 l	4.705 666	CEE	480 V, 60 Hz	4.8 kW	0,1 ... 0,6 K	-40 ... 180 °C	MKF 115	280 kg	No	1.00
600 mm	1,580 x 1,140 x 2005 mm	1140 mm	2005 mm	1580 mm	1020 mm	1,200 x 600 x 1020 mm	1200 mm	Stainless steel	Stainless steel	11	180 °C	400 V·3/N/PE	-40 °C	-	734 l	4.705 668	CEE	400 V·3/N/PE, 50 Hz	11 kW	0,1 ... 0,5 K	-40 ... 180 °C	MKF 720	590 kg	No	1.00
600 mm	1,580 x 1,140 x 2005 mm	1140 mm	2005 mm	1580 mm	1020 mm	1,200 x 600 x 1020 mm	1200 mm	Stainless steel	Stainless steel	11	180 °C	480 V	-40 °C	-	734 l	4.705 669	CEE	480 V, 60 Hz	11 kW	0,1 ... 0,5 K	-40 ... 180 °C	MKF 720	590 kg	No	1.00
443 mm	1,115 x 925 x 1715 mm	925 mm	1715 mm	1115 mm	700 mm	735 x 443 x 700 mm	735 mm	Stainless steel	Stainless steel	6	180 °C	480 V	-40 °C	-	228 l	4.705 667	CEE	480 V, 60 Hz	6.8 kW	0,1 ... 0,5 K	-40 ... 180 °C	MKF 240	360 kg	No	1.00
810 mm	1,580 x 1,480 x 2005 mm	1480 mm	2005 mm	1580 mm	1020 mm	1,200 x 810 x 1020 mm	1200 mm	Stainless steel	Stainless steel	11	180 °C	400 V·3/N/PE	-40 °C	-	991 l	4.685 706	CEE	400 V·3/N/PE, 50 Hz	12.5 kW	0,1 ... 0,5 K	-40 ... 180 °C	MKF 1020	636 kg	No	1.00
443 mm	1,115 x 925 x 1715 mm	925 mm	1715 mm	1115 mm	700 mm	735 x 443 x 700 mm	735 mm	Stainless steel	Stainless steel	6	180 °C	400 V·3/N/PE	-40 °C	-	228 l	7.984 339	CEE	400 V·3/N/PE, 50 Hz	6.8 kW	0,1 ... 0,5 K	-40 ... 180 °C	MKF 240	360 kg	No	1.00
400 mm	980 x 865 x 1725 mm	865 mm	1725 mm	980 mm	480 mm	600 x 400 x 480 mm	600 mm	Stainless steel	Stainless steel	4	180 °C	400 V·3/N/PE	-40 °C	-	115 l	4.705 665	CEE	400 V·3/N/PE, 50 Hz	4.8 kW	0,1 ... 0,6 K	-40 ... 180 °C	MKF 115	280 kg	No	1.00
