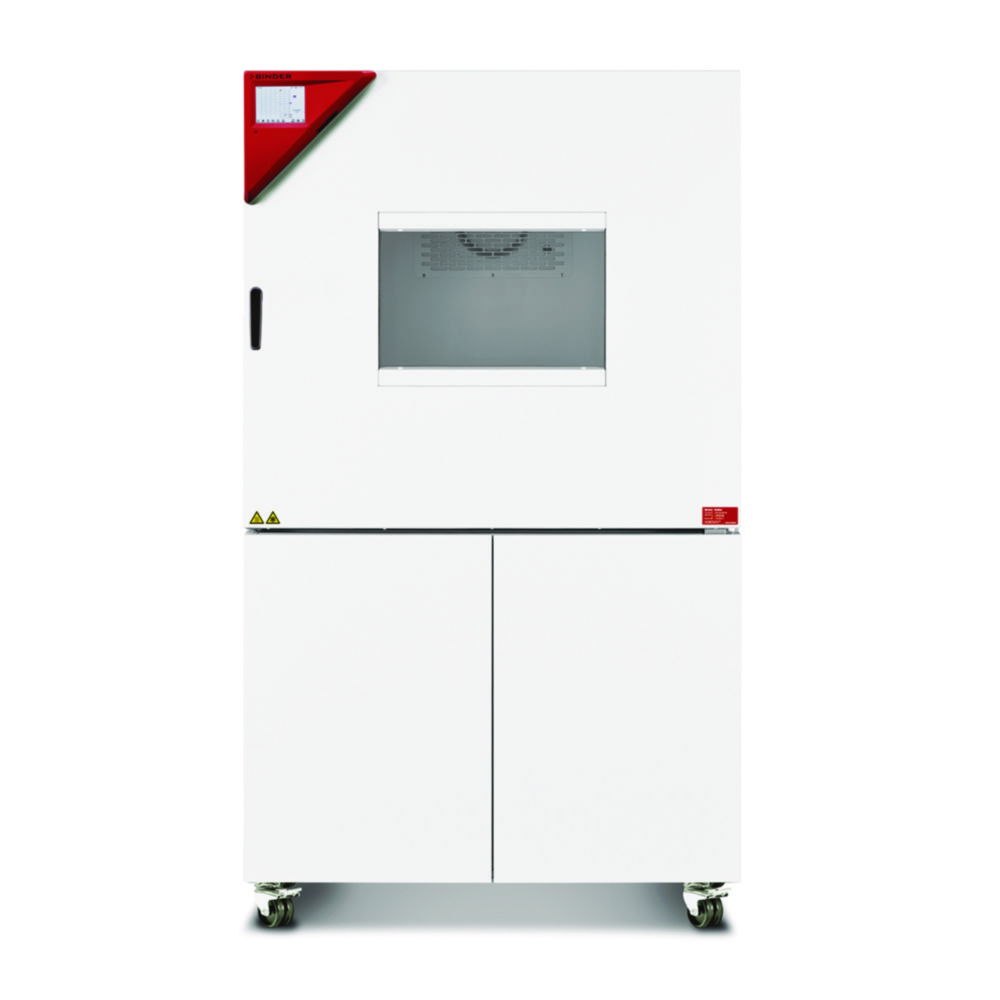

Dynamic climate chambers MKT, with extended low temperature range
- 4 zero-voltage relay contacts
- CFC-free refrigerant R-452A and R-23
Models with 480 V nominal voltage are equipped with a voltage and frequency converter.
Toote variatsioonid
| Depth int. | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Height int. | Internal dimensions (WxDxH) | Int. width | Material inserts | Material interior | Max. no. of inserts | Max. temperature | Max. voltage | Min. temperature | Nominal capacity | Catalog number | Plug type | Power supply | Rated capacity | Temp. Stability | Temperature | Type | Weight | With CO2 control | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 443 mm | 1,115 x 925 x 1935 mm | 925 mm | 1935 mm | 1115 mm | 700 mm | 735 x 443 x 700 mm | 735 mm | Stainless steel | Stainless steel | 6 | 180 °C | 400 V·3/N/PE | -70 °C | 228 l | 4.705 677 | CEE | 400 V·3/N/PE, 50 Hz | 6.5 kW | 0,1 ... 0,4 K | -70 ... 180 °C | MKT 240 | 380 kg | No | 1.00 | ||
| 600 mm | 1,580 x 1,140 x 2005 mm | 1140 mm | 2005 mm | 1580 mm | 1020 mm | 1,200 x 600 x 1020 mm | 1200 mm | Stainless steel | Stainless steel | 11 | 180 °C | 480 V | -70 °C | 734 l | 4.705 679 | CEE | 480 V, 60 Hz | 13 kW | 0,1 ... 0,5 K | -70 ... 180 °C | MKT 720 | 610 kg | No | 1.00 | ||
| 400 mm | 980 x 865 x 1725 mm | 865 mm | 1725 mm | 980 mm | 480 mm | 600 x 400 x 480 mm | 600 mm | Stainless steel | Stainless steel | 4 | 180 °C | 400 V·3/N/PE | -70 °C | 115 l | 4.705 675 | CEE | 400 V·3/N/PE, 50 Hz | 5.5 kW | 0,1 ... 0,6 K | -70 ... 180 °C | MKT 115 | 305 kg | No | 1.00 | ||
| 400 mm | 980 x 865 x 1725 mm | 865 mm | 1725 mm | 980 mm | 480 mm | 600 x 400 x 480 mm | 600 mm | Stainless steel | Stainless steel | 4 | 180 °C | 480 V | -70 °C | 115 l | 4.705 676 | CEE | 480 V, 60 Hz | 5.5 kW | 0,1 ... 0,6 K | -70 ... 180 °C | MKT 115 | 305 kg | No | 1.00 | ||
| 600 mm | 1,580 x 1,140 x 2005 mm | 1140 mm | 2005 mm | 1580 mm | 1020 mm | 1,200 x 600 x 1020 mm | 1200 mm | Stainless steel | Stainless steel | 11 | 180 °C | 400 V·3/N/PE | -70 °C | 734 l | 6.327 698 | CEE | 400 V·3/N/PE, 50 Hz | 13 kW | 0,1 ... 0,5 K | -70 ... 180 °C | MKT 720 | 610 kg | No | 1.00 | ||
| 443 mm | 1,115 x 925 x 1935 mm | 925 mm | 1935 mm | 1115 mm | 700 mm | 735 x 443 x 700 mm | 735 mm | Stainless steel | Stainless steel | 6 | 180 °C | 480 V | -70 °C | 228 l | 4.705 678 | CEE | 480 V, 60 Hz | 6.5 kW | 0,1 ... 0,4 K | -70 ... 180 °C | MKT 240 | 380 kg | No | 1.00 |
