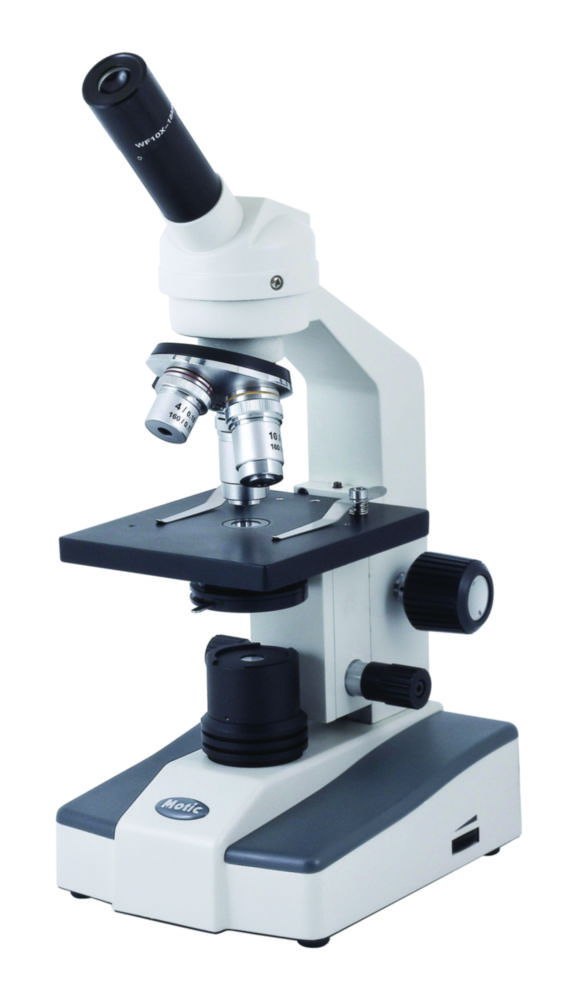

Educational Microscopes, F11 Series
- Monocular head, 45º inclined, 360º rotating
- Widefield eyepiece WF10X/18mm
- Quadruple revolving nosepiece
- Achromatic objectives DIN 4X, 10X, 40X S
- Seperate coarse and fine focusing system with tension adjustment
- Plain stage with sample clips
- 0.65 N.A. condenser built in on stage with iris diaphragm (F1110)
- Focusable 1.25 N.A. Abbe condenser with iris diaphragm (F1115)
- LED illumination 20mA, 3.5V, 70mW with intensity control
- Power supply 220V (CE)
- Dust cover
Toote variatsioonid
| Condenser | Light type | Max. voltage | Catalog number | Power supply | Revolving nosepiece | Tube | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0,65 | LED | 220 V | 6.239 879 | 220 V | 4-fold | Monocular | F1110 LED | 1.00 | ||
| Abbe 1,25 | LED | 220 V | 6.243 414 | 220 V | 4-fold | Monocular | F1115 LED | 1.00 |
