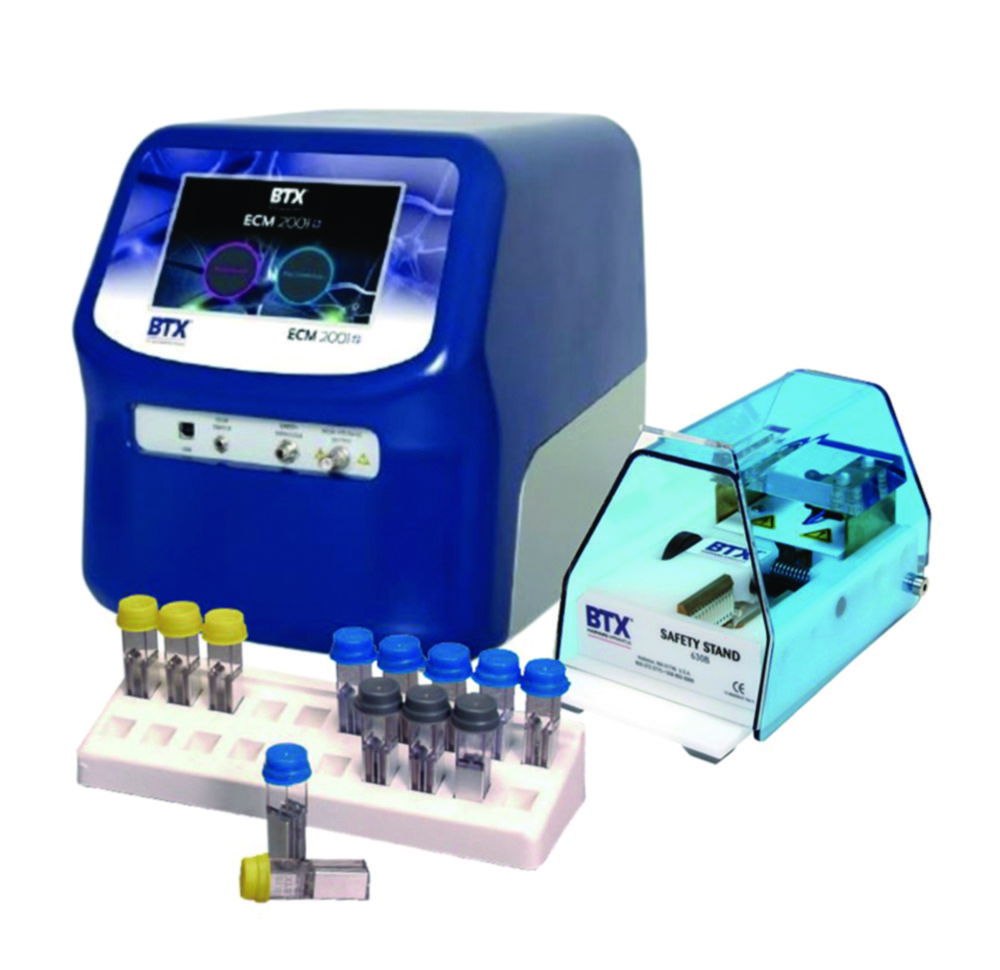

Electrofusion and electroporation system ECM® 2001+, Electroporation system
The supplied safety stand connects to the generator to safely deliver high voltage electrical pulses to cuvettes.
Scope of supply: Generator ECM® 2001+, safety stand, electroporation cuvettes 1 mm / 2 mm / 4 mm (10 each), cuvette rack
- Square wave (DC)
- Voltage LV mode: 5 … 500 V
- Voltage HV mode: 505 … 3000 V
- Multiple pulse: 1 … 100 pulses per sample
- Pulse length LV mode: 10 µs … 999 ms
- Pulse length HV mode: 10 µs … 600 µs
- Pulse interval: 0.1 … 10 s
- Sine wave (AC)
- Voltage: 5 … 75 V
- Frequency: 0.2 … 2 MHz
- Pulse length: 0 … 99 s
- Charging time: <7 s
Toote variatsioonid
| Depth | Description | Dimensions (WxDxH) | Height | Catalog number | Power supply | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| 330 mm | ECM® 2001+ Electroporation system | 305 x 330 x 330 mm | 330 mm | 4.687 937 | 100 ... 240 V, 50 ... 60 Hz | 10 kg | 305 mm | 1.00 |
