Electrofusion and electroporation system ECM® 2001+, Embryo manipulation system
The 0.5 and 1.0 mm microslides produce a divergent energy field ideal for efficient embryo fusion. The 3.2 mm microslide provides a homogeneous energy field for high fusion rates of hybridoma cells.

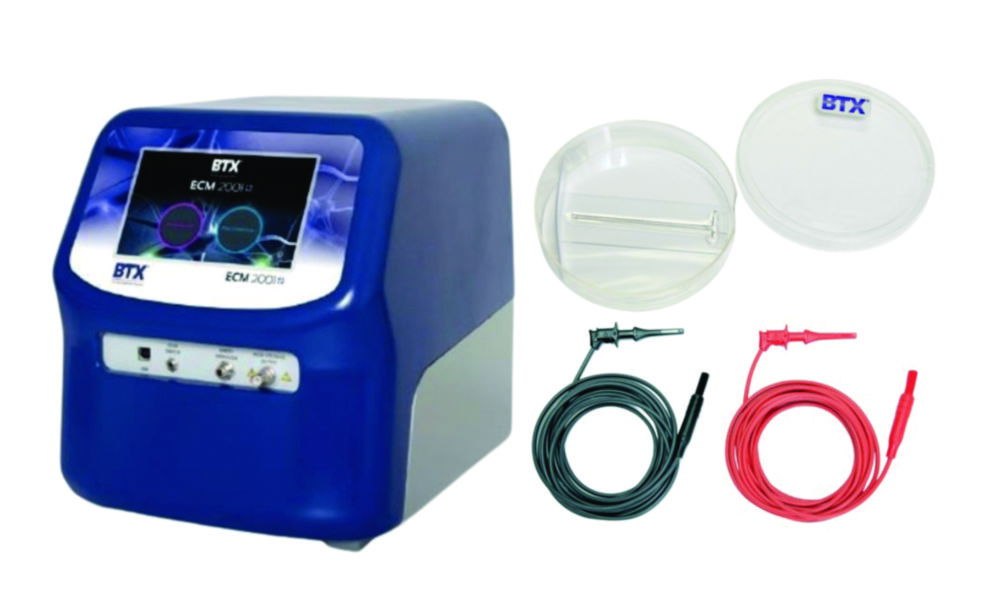

Scope of supply: Generator ECM® 2001+, microslides with round wire electrode (0.5 mm / 1.0 mm), microslide with rectangular wire electrode (3.2 mm), micrograbber adapter cables
Toote variatsioonid
| Height | Catalog number | Weight | Width | PK | Depth | Dimensions (WxDxH) | Max. pulse interval | Max. voltage | Max. voltage HV mode | Max. voltage LV mode | Min. pulse interval | Min. voltage | Min. voltage HV mode | Min. voltage LV mode | Power supply | Pulse interval | Type | Voltage HV mode | Voltage LV mode | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 330 mm | 4.687 938 | 10 kg | 305 mm | 1.00 | 330 mm | 305 x 330 x 330 mm | 10 s | 240 V | 3000 V | 500 V | 0.1 s | 100 V | 505 V | 5 V | 100 ... 240 V, 50/60 Hz | 0.1 ... 10 s | ECM® 2001+ | 505 ... 3,000 V | 5 ... 500 V |
