Electrofusion and electroporation system ECM® 2001+, Hybridoma production system

The coaxial chambers have identical electrical characteristics to allow direct scale-up to production once the pulse parameters have been optimised. Coaxial optimisation chamber with transparent bottom allows visualisation of the cell alignment by inverted or regular microscope.

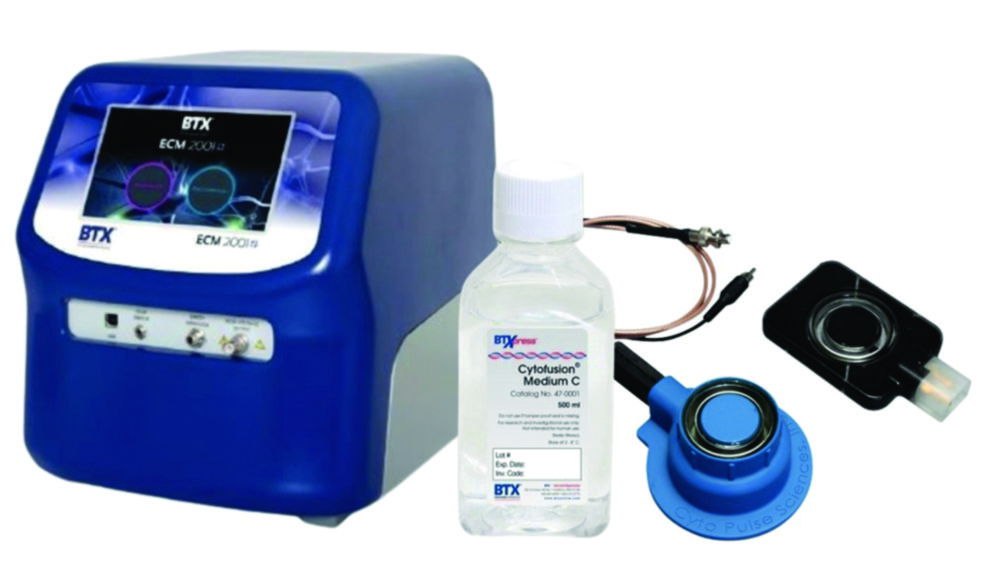

Scope of supply: Generator ECM^® 2001+, coaxial optimisation chamber (2 ml), coaxial production chamber (9 ml), adapter set, cytofusion medium C (500 ml)

• Square wave (DC)
• Voltage LV mode: 5 … 500 V
• Voltage HV mode: 505 … 3000 V
• Multiple pulse: 1 … 100 pulses per sample
• Pulse length LV mode: 10 µs … 999 ms
• Pulse length HV mode: 10 µs … 600 µs
• Pulse interval: 0.1 … 10 s
• Sine wave (AC)
• Voltage: 5 … 75 V
• Frequency: 0.2 … 2 MHz
• Pulse length: 0 … 99 s
• Charging time: <7 s
