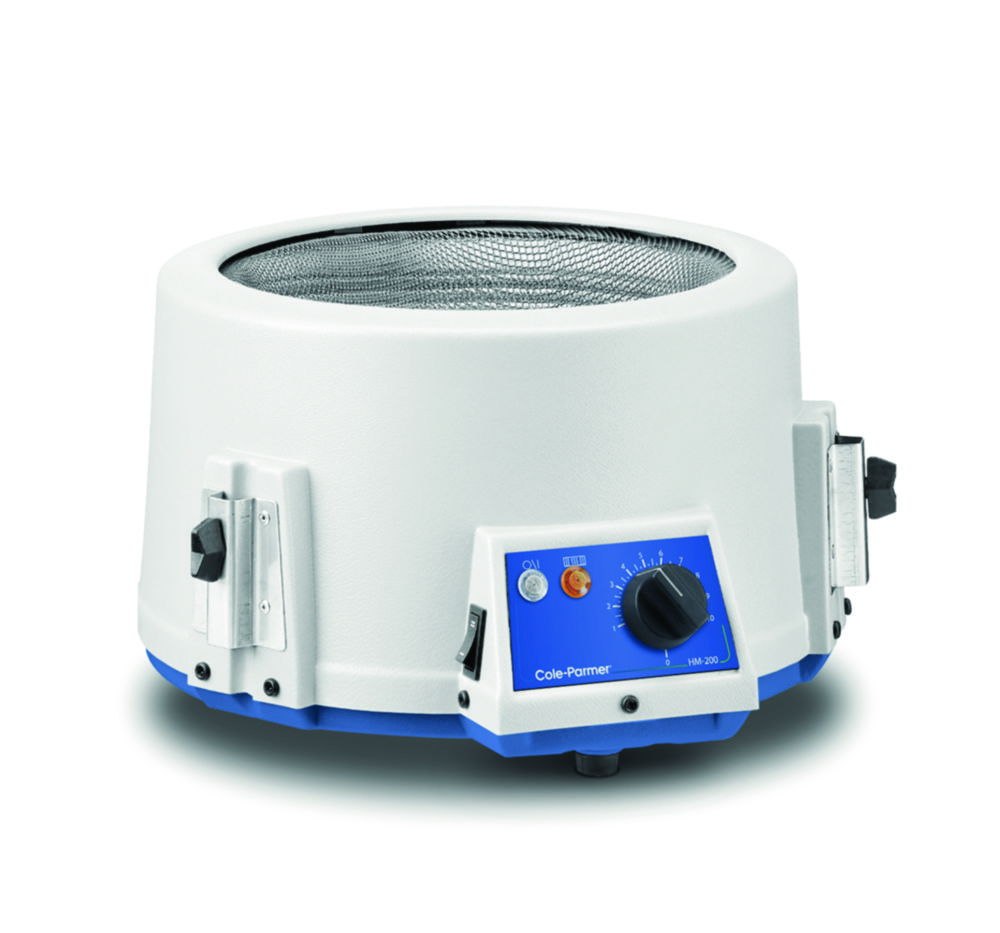

Electronic heating mantles HM-200

Polypropylene outer case is resilient and chemically resistant. Highly efficient in heating up to a maximum element temperature of 450 °C. The flexible heating element is suspended in a thermal insulating cartridge to provide maximum heat transfer with minimum risk of flask breakage. Even at full power output, the exterior remains “cool-to-touch” due to good heating element insulation. All heating mantles have support clamp for rods of up to 12 mm diameter, and are double fused, with earth (ground) screen to protect the user from electric shocks.

Spare heater cartridges are available on request.

Toote variatsioonid

Depth	Dimensions (WxDxH)	Heating capacity	Height	Max. temperature	Max. voltage	atr_llg_no_of_heating_points	Catalog number	Plug type	Power supply	Type	atr_llg_vessels_capacity	Width	PK
310 mm	238 x 310 x 145 mm	300 W	145 mm	450 °C	230 V	1	9.643 036	EU/UK	230 V, 50...60 Hz	HM-200-1000	1000 ml	238 mm	1.00
400 mm	350 x 400 x 190 mm	500 W	190 mm	450 °C	230 V	1	9.643 038	EU/UK	230 V, 50...60 Hz	HM-200-3000	3000 ml	350 mm	1.00
260 mm	175 x 260 x 127 mm	60 W	127 mm	450 °C	230 V	1	9.643 033	EU/UK	230 V, 50...60 Hz	HM-200-100	100 ml	175 mm	1.00
310 mm	238 x 310 x 145 mm	200 W	145 mm	450 °C	230 V	1	9.643 035	EU/UK	230 V, 50...60 Hz	HM-200-500	500 ml	238 mm	1.00
400 mm	350 x 400 x 190 mm	500 W	190 mm	450 °C	230 V	1	9.643 037	EU/UK	230 V, 50...60 Hz	HM-200-2000	2000 ml	350 mm	1.00
400 mm	350 x 400 x 190 mm	800 W	190 mm	450 °C	230 V	1	9.643 039	EU/UK	230 V, 50...60 Hz	HM-200-5000	5000 ml	350 mm	1.00
260 mm	175 x 260 x 127 mm	60 W	127 mm	450 °C	230 V	1	9.643 032	EU/UK	230 V, 50...60 Hz	HM-200-50	50 ml	175 mm	1.00
260 mm	175 x 260 x 127 mm	150 W	127 mm	450 °C	230 V	1	9.643 034	EU/UK	230 V, 50...60 Hz	HM-200-250	250 ml	175 mm	1.00
