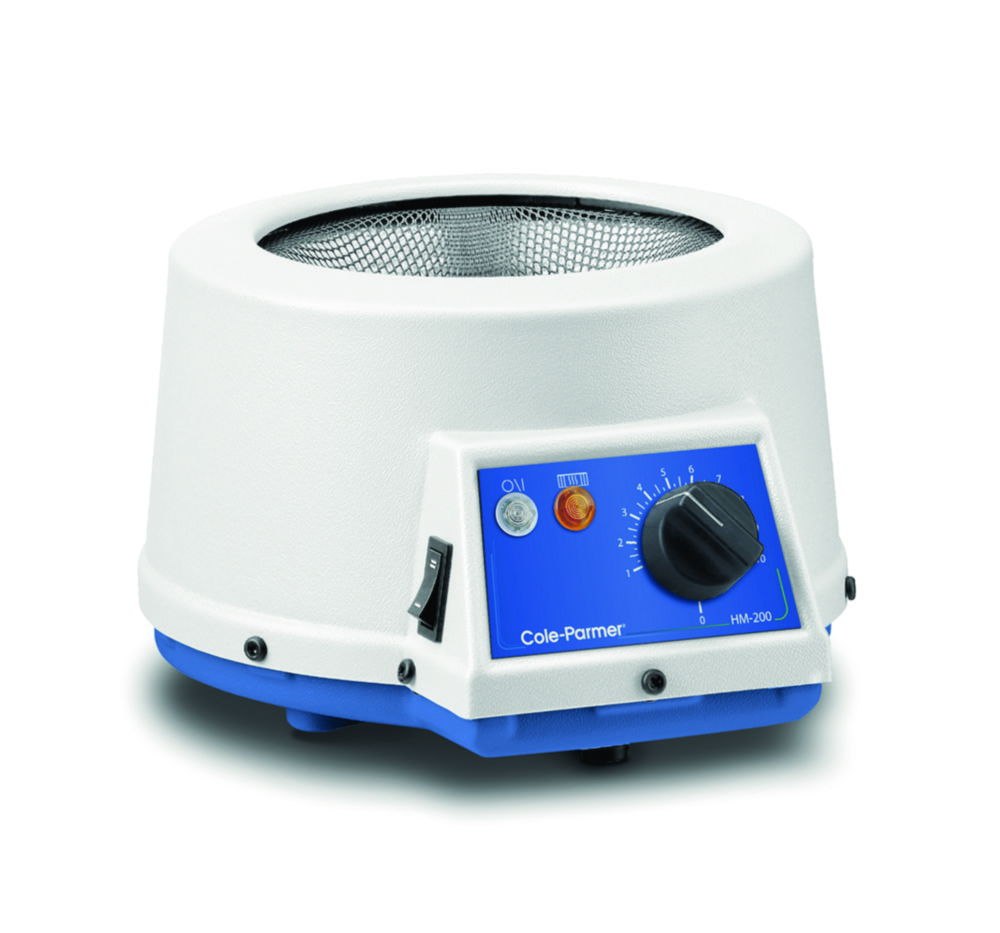

Electronic multi-size heating mantles HM-200-V, V-shaped
Solid, with mesh stainless steel liner, which protects against fluid spills, with central aperture to accommodate round-bottom and pear-shaped flask and 60° funnels. For round bottom flasks, pear-shaped flasks and 60° funnels (Mantle is open at the bottom). Polypropylene outer case is resilient and chemically- resistant. Highly efficient in heating up to a maximum element temperature of 450 °C. Even at full power output, the exterior remains “cool-to-touch” due to good heating element insulation. All heating mantles have support clamp for rods of up to 12 mm diameter, and are double fused, with earth (ground) screen to protect the user from electric shocks.
Spare heater cartridges are available on request.
Toote variatsioonid
| Depth | atr_llg_diam_vessel | Dimensions (WxDxH) | Heating capacity | Height | Max. temperature | Max. voltage | atr_llg_no_of_heating_points | Catalog number | Plug type | Power supply | Type | atr_llg_vessels_capacity | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 260 mm | 75...100 mm | 175 x 260 x 127 mm | 150 W | 127 mm | 450 °C | 230 V | 1 | 9.643 073 | EU/UK | 230 V, 50...60 Hz | HM-200-V-250 | 100...250 ml | 175 mm | 1.00 | ||
| 310 mm | 100...200 mm | 238 x 310 x 145 mm | 300 W | 145 mm | 450 °C | 230 V | 1 | 9.643 074 | EU/UK | 230 V, 50...60 Hz | HM-200-V-1000 | 500...1000 ml | 238 mm | 1.00 | ||
| 400 mm | 200...300 mm | 350 x 400 x 190 mm | 800 W | 190 mm | 450 °C | 230 V | 1 | 9.643 075 | EU/UK | 230 V, 50...60 Hz | HM-200-V-5000 | 2000...5000 ml | 350 mm | 1.00 | ||
| 260 mm | 50...75 mm | 175 x 260 x 127 mm | 60 W | 127 mm | 450 °C | 230 V | 1 | 9.643 072 | EU/UK | 230 V, 50...60 Hz | HM-200-V-50 | 10...50 ml | 175 mm | 1.00 |
