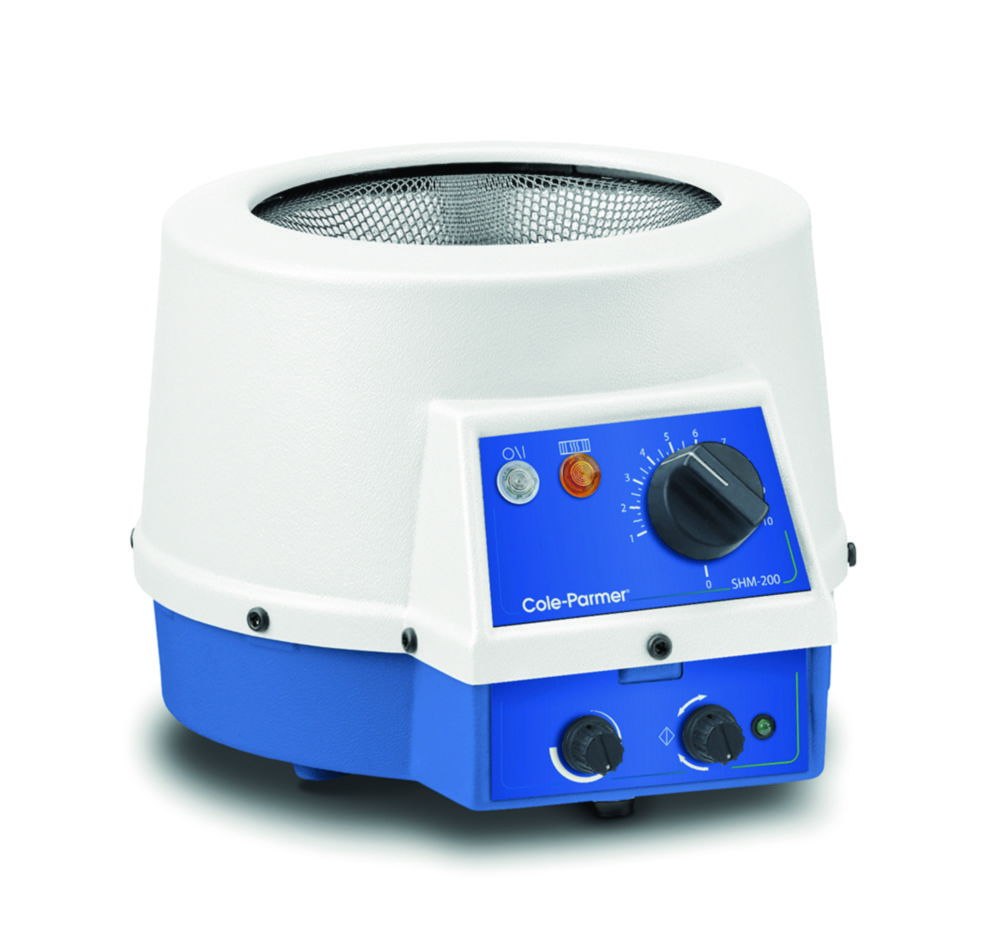

Electronic stirrer mantles SHM-200 series
Built-in adjustable heater control up to an element temperature of 450 °C and magnetic stirring control up to approx. 520 rpm with auto-reverse facility and automatic stirrer bar trap; the stirrer unit has an independent power supply. Polypropylene outer case is resilient and chemically-resistant. Even at full power output, the exterior remains ”cool-to-touch” due to good heating element insulation. All heating mantles have support clamp for rods of up to 12 mm diameter, and are double fused, with earth (ground) screen to protect the user from electric shocks.
Spare heater cartridges are available on request.
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Heating capacity | Height | Max. speed | Max. temperature | Max. voltage | atr_llg_no_of_heating_points | Catalog number | Plug type | Power supply | Type | atr_llg_vessels_capacity | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 260 mm | 175 x 260 x 133 mm | 80 W | 133 mm | 520 1/min | 450 °C | 230 V | 1 | 9.643 122 | EU/UK | 230 V, 50...60 Hz | SHM-200-50 | 50 ml | 175 mm | 1.00 | ||
| 310 mm | 238 x 310 x 157 mm | 220 W | 157 mm | 520 1/min | 450 °C | 230 V | 1 | 9.643 125 | EU/UK | 230 V, 50...60 Hz | SHM-200-500 | 500 ml | 238 mm | 1.00 | ||
| 400 mm | 350 x 400 x 197 mm | 520 W | 197 mm | 520 1/min | 450 °C | 230 V | 1 | 9.643 127 | EU/UK | 230 V, 50...60 Hz | SHM-200-2000 | 2000 ml | 350 mm | 1.00 | ||
| 260 mm | 175 x 260 x 133 mm | 170 W | 133 mm | 520 1/min | 450 °C | 230 V | 1 | 9.643 124 | EU/UK | 230 V, 50...60 Hz | SHM-200-250 | 250 ml | 175 mm | 1.00 | ||
| 310 mm | 238 x 310 x 157 mm | 320 W | 157 mm | 520 1/min | 450 °C | 230 V | 1 | 9.643 126 | EU/UK | 230 V, 50...60 Hz | SHM-200-1000 | 1000 ml | 238 mm | 1.00 | ||
| 260 mm | 175 x 260 x 133 mm | 80 W | 133 mm | 520 1/min | 450 °C | 230 V | 1 | 9.643 123 | EU/UK | 230 V, 50...60 Hz | SHM-200-100 | 100 ml | 175 mm | 1.00 |
