Electroporation system Gemini Twin Wave SC, Complete system
The supplied safety dome connects to the generator to safely deliver high-voltage electrical pulses to cuvettes. Up to two cuvettes can be electroporated simultaneously.

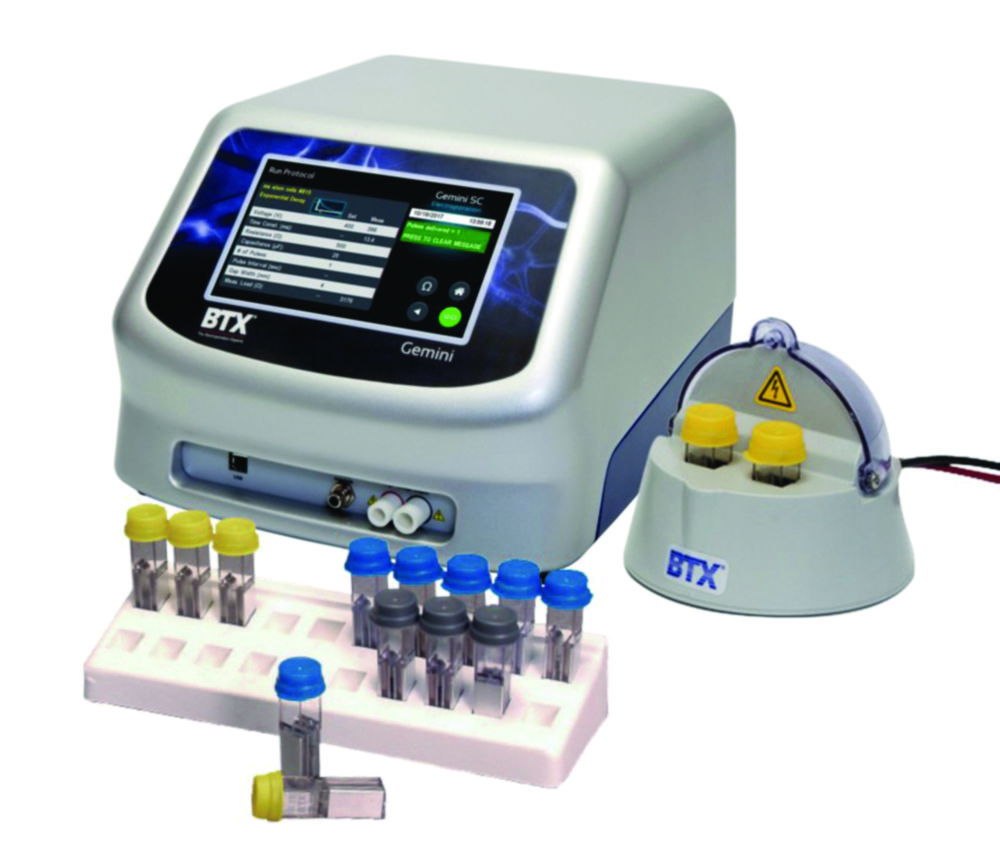

Scope of supply: Generator Gemini SC, safety dome, electroporation cuvettes 1 mm / 2 mm / 4 mm (10 each), cuvette rack
- Exponential decay pulse
- Capacitance LV mode: 25 … 3275 µF
- Capacitance HV mode: 10, 25, 50 µF
- Resistance: 50 … 1000 Ω
- Voltage LV mode: 10 … 500 V
- Voltage HV mode: 510 … 3000 V
- Square wave pulse
- Capacitance LV mode: 3775 µF
- Capacitance HV mode: 85 µF
- Voltage LV mode: 10 … 500 V
- Voltage HV mode: 510 … 3000 V
- Multiple pulse LV mode: 1 … 100 pulses per sample
- Multiple pulse HV mode: 1 … 2 pulses per sample
- Pulse length LV mode: 0.05 … 100 ms
- Pulse length HV mode: 50 µs … 5 ms
- Pulse interval: 0.1 … 10 s
- Charging time LV mode: <7 s
- Charging time HV mode: <4 s
Toote variatsioonid
| Depth | Description | Dimensions (WxDxH) | Height | Catalog number | Power supply | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| 216 mm | Gemini SC Complete system | 286 x 216 x 324 mm | 324 mm | 4.687 933 | 100 ... 240 V, 50 ... 60 Hz | 7.3 kg | 286 mm | 1.00 |
