Electroporation system Gemini Twin Wave X2, HT system

With the supplied HT-200 plate handler, 96-well electroporation plates can be processed. The plate handler delivers a single pulse to the wells of the plate, using the parameters set in the generator.

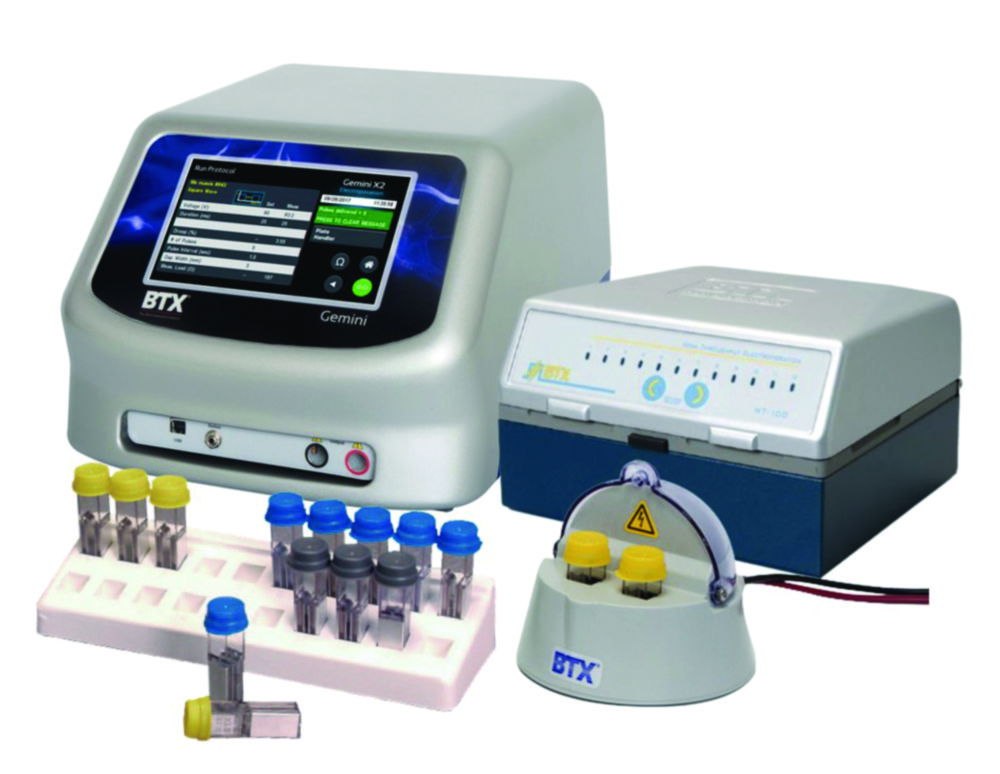

Scope of supply: Generator Gemini X2, safety dome, electroporation cuvettes 1 mm / 2 mm / 4 mm (10 each), cuvette rack, HT-200 plate handler, electroporation plate 2 mm and 4 mm gap

• Exponential decay pulse
• Capacitance LV mode: 25 … 3275 µF
• Capacitance HV mode: 10, 25, 35, 50, 60, 75, 85 µF
• Resistance LV mode: 25 … 1575 Ω
• Resistance HV mode: 50 … 1575 Ω
• Voltage LV mode: 5 … 500 V
• Voltage HV mode: 505 … 3000 V
• Multiple pulse: 1 … 2 (depending on amplitude limit of the device)
• Pulse interval: 5 … 30 s
• Square wave pulse
• Capacitance LV mode: 3775 µF
• Capacitance HV mode: 85 µF
• Voltage LV mode: 5 … 500 V
• Voltage HV mode: 505 … 3000 V
• Multiple pulse single sample: 1 … 99 pulses per sample
• Multiple pulse plate: 1 … 10 pulses per sample
• Pulse length LV mode: 10 µs … 999 ms
• Pulse length HV mode: 10 … 600 µs
• Pulse interval: 0.1 … 10 s
• Charging time LV mode: <7 s
• Charging time HV mode: <4 s
