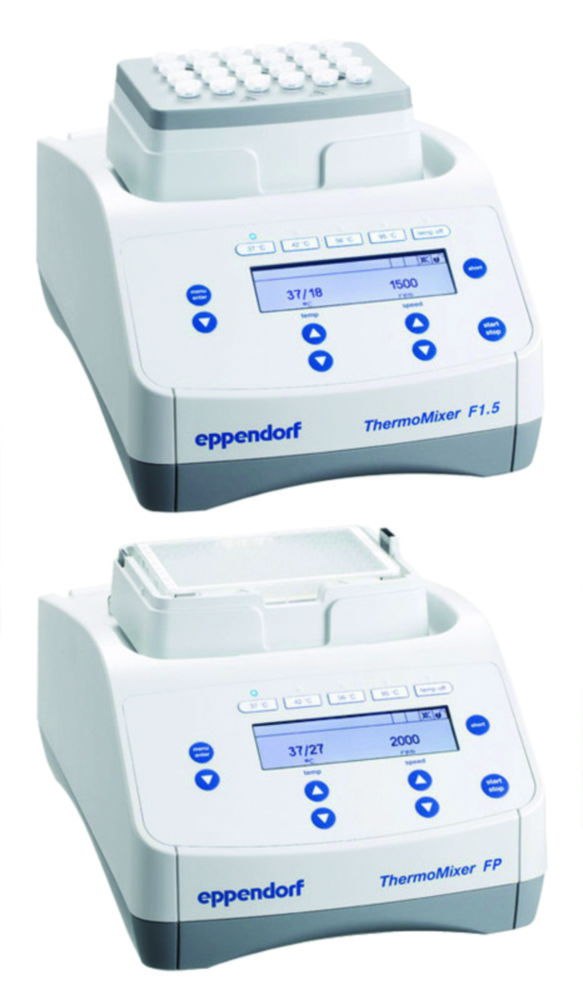

Eppendorf ThermoMixer™ F0.5/F1.5/F2.0/FP
To simplify lab routines. Whether work with regularly 0.5, 1.5 or 2.0 ml reaction vessels or plates (MTP and DWP) – the customized systems from Eppendorf offer the perfect solution for special applications. The devices combine precise heating and mixing with the highest stability, even at maximum mixing frequency. Mixing and incubation steps can be performed independently.
- For 24 reaction vessels or one microplate/deepwell plate
- Efficient mixing thanks to 2DMix-Control and anti-spill technology
- Simple and intuitive operation using predefined temperature keys (37 °C, 42 °C, 56 °C and 95 °C)
- Improved temperature homogeneity with the new ThermoTop
Toote variatsioonid
| Accuracy temperature | Accuracy temperature | Depth | Dimensions (WxDxH) | Height | Max. heating rate | Max. speed | Max. temperature | Max. voltage | Min. speed | Min. temperature | Min. voltage | Catalog number | Plug type | Power supply | Shaking stroke | Speed | Temperature | Temperature | Type | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ±0.5 °C | 0.5 °C | 304 mm | 206 x 304 x 170 mm | 170 mm | 11 °C/min | 1500 1/min | 100 °C | 240 V | 300 1/min | 4 °C | 220 V | 9.776 904 | EU | 220 ... 240 V, 50/60 Hz | 3 mm | 300 ... 1500 1/min | RT | RT+4 ... 100 °C | ThermoMixer™ F1.5 | 6.3 kg | 206 mm | 1.00 | ||
| ±0.5 °C | 0.5 °C | 304 mm | 206 x 304 x 170 mm | 170 mm | 13 °C/min | 1500 1/min | 100 °C | 240 V | 300 1/min | 4 °C | 220 V | 9.776 937 | EU | 220 ... 240 V, 50/60 Hz | 3 mm | 300 ... 1500 1/min | RT | RT+4 ... 100 °C | ThermoMixer™ F2.0 | 6.3 kg | 206 mm | 1.00 | ||
| ±0.5 °C | 0.5 °C | 304 mm | 206 x 304 x 164 mm | 164 mm | 18 °C/min | 2000 1/min | 100 °C | 240 V | 300 1/min | 4 °C | 220 V | 9.776 905 | EU | 220 ... 240 V, 50/60 Hz | 3 mm | 300 ... 2000 1/min | RT | RT+4 ... 100 °C | ThermoMixer™ FP | 6.1 kg | 206 mm | 1.00 | ||
| ±0.5 °C | 0.5 °C | 304 mm | 206 x 304 x 163 mm | 163 mm | 15 °C/min | 2000 1/min | 100 °C | 240 V | 300 1/min | 4 °C | 200 V | 9.776 936 | EU | 200 ... 240 V, 50/60 Hz | 3 mm | 300 ... 2000 1/min | RT | RT+4 ... 100 °C | ThermoMixer™ F0.5 | 6.2 kg | 206 mm | 1.00 |
