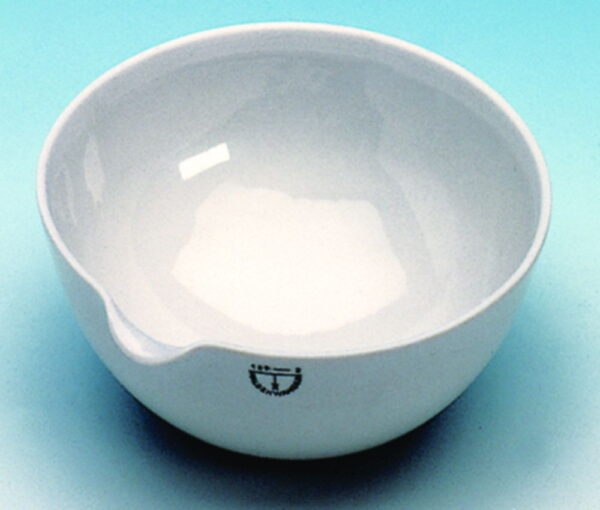

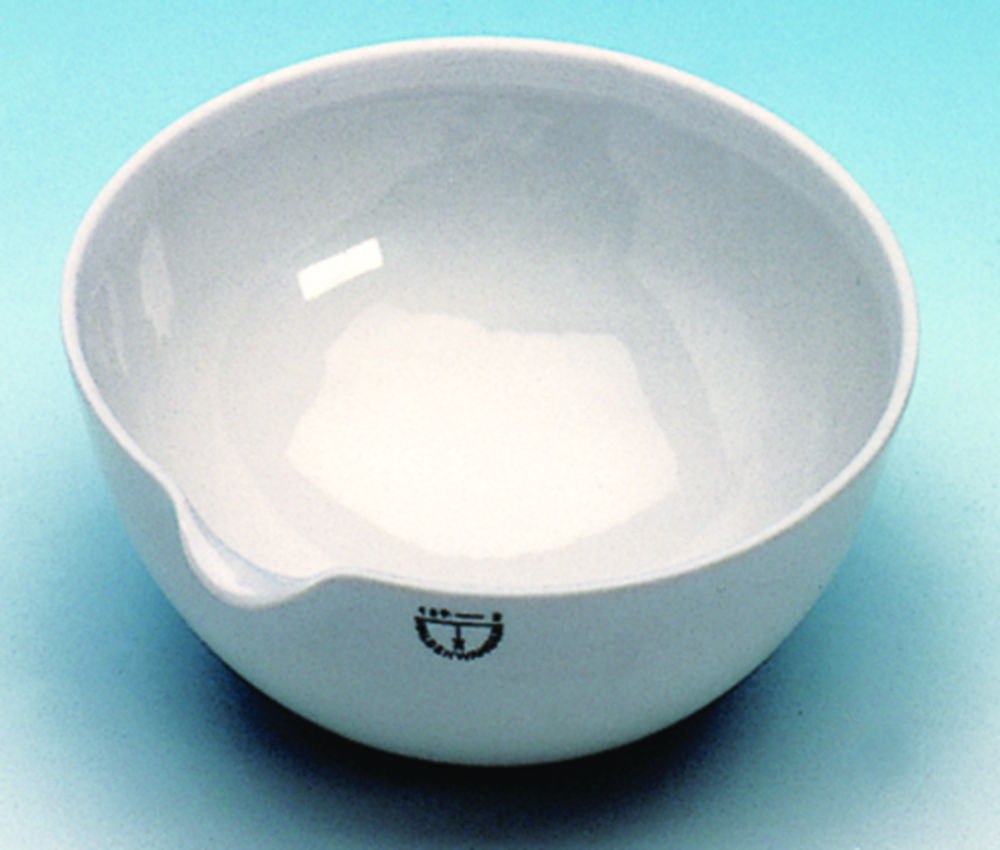

Evaporating basins, porcelain, with spout, round bottom, medium form
Round bottom with spout. DIN 12903. 10 to 310ml sizes are completely glazed inside and out. 640 to 3400ml sizes are glazed with the exception of the outer base.
Toote variatsioonid
| Ø | Dimensions (ØxH) | Height | Material | Nominal capacity | Catalog number | Standard | Type of coating | With spout | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 mm | 40 x 16 mm | 16 mm | Porcelain | 10 ml | 9.000 304 | DIN 12903 | Glazed | Yes | 1.00 | ||
| 310 mm | 310 x 110 mm | 110 mm | Porcelain | 3400 ml | 9.000 330 | DIN 12903 | Glazed | Yes | 1.00 | ||
| 85 mm | 85 x 35 mm | 35 mm | Porcelain | 95 ml | 6.006 036 | - | Glazed | Yes | 1.00 | ||
| 80 mm | 80 x 34 mm | 34 mm | Porcelain | 75 ml | 9.000 308 | DIN 12903 | Glazed | Yes | 1.00 | ||
| 63 mm | 63 x 25 mm | 25 mm | Porcelain | 40 ml | 9.000 306 | DIN 12903 | Glazed | Yes | 1.00 | ||
| 160 mm | 160 x 64 mm | 64 mm | Porcelain | 640 ml | 9.000 316 | DIN 12903 | Glazed | Yes | 1.00 | ||
| 115 mm | 115 x 47 mm | 47 mm | Porcelain | 310 ml | 9.000 312 | DIN 12903 | Glazed | Yes | 1.00 | ||
| 50 mm | 50 x 20 mm | 20 mm | Porcelain | 20 ml | 9.000 305 | DIN 12903 | Glazed | Yes | 1.00 | ||
| 100 mm | 100 x 40 mm | 40 mm | Porcelain | 115 ml | 9.000 310 | DIN 12903 | Glazed | Yes | 1.00 | ||
| 200 mm | 200 x 80 mm | 80 mm | Porcelain | 1000 ml | 9.000 320 | DIN 12903 | Glazed | Yes | 1.00 | ||
| 260 mm | 260 x 86 mm | 86 mm | Porcelain | 2200 ml | 9.000 325 | DIN 12903 | Glazed | Yes | 1.00 |
