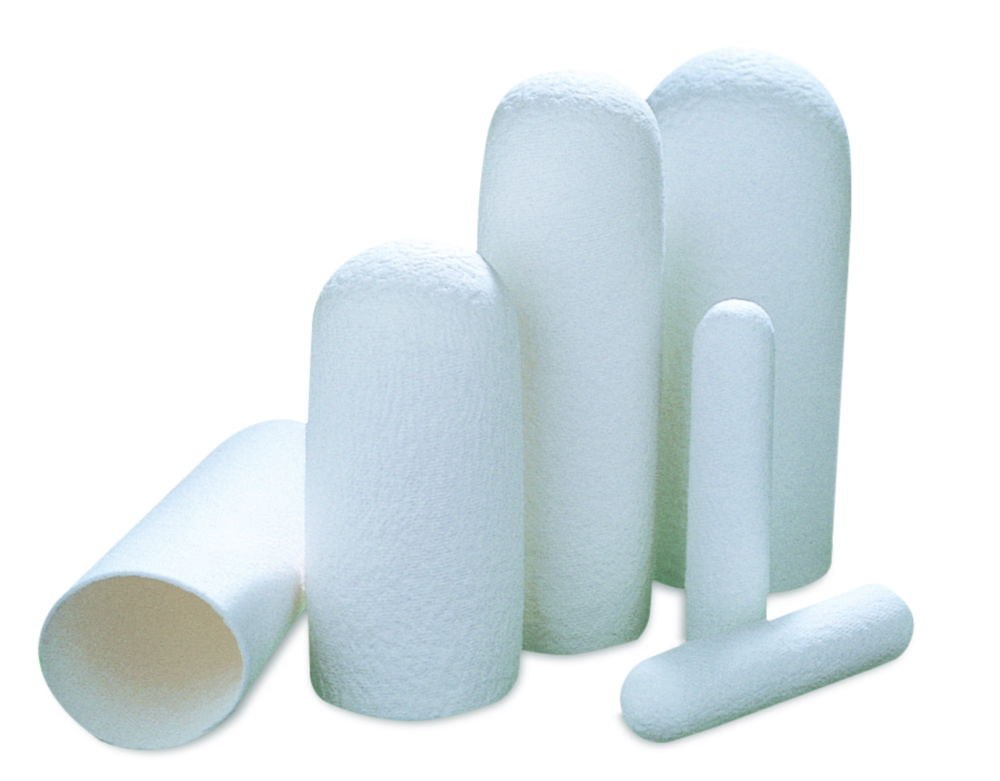

Extraction thimbles, Grade 603, cellulose

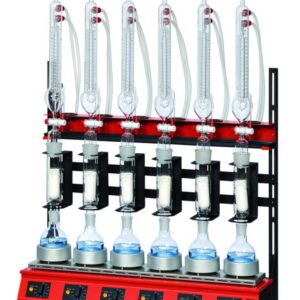

These thimbles are the standard for reproducible analytical results. An excellent fit in the apparatus is ensured through carefully controlled dimensions. Selected raw materials ensure that the thimbles are ideal for all analytical routine processes to obtain reproducible results without influencing the sample. Ideal for Soxhlet extraction.

Toote variatsioonid

Catalog numberTypeHeightInt. ØMaterialPKBinderWall thicknessKogus
9.043 90160380 mm22 mmCellulose25.00Without1,5 mm
9.043 902603100 mm25 mmCellulose25.00Without1,5 mm
9.043 90360394 mm33 mmCellulose25.00Without1,5 mm
9.043 904603118 mm33 mmCellulose25.00Without1,5 mm
9.043 905603205 mm33 mmCellulose25.00Without1,5 mm
9.043 906603230 mm44 mmCellulose25.00Without2,0 mm
9.043 90760380 mm33 mmCellulose25.00Without1,5 mm
9.043 90960380 mm25 mmCellulose25.00Without1,5 mm
9.043 91060360 mm26 mmCellulose25.00Without1,5 mm
9.043 91160390 mm33 mmCellulose25.00Without1,5 mm
9.043 91260360 mm28 mmCellulose25.00Without1,5 mm
9.043 91360360 mm33 mmCellulose25.00Without1,5 mm
9.043 915603150 mm35 mmCellulose25.00Without1,5 mm
9.043 916603100 mm33 mmCellulose25.00Without1,5 mm
9.043 917603130 mm33 mmCellulose25.00Without1,5 mm
9.043 91860385 mm40 mmCellulose25.00Without2,0 mm
9.043 921603T80 mm31 mmCellulose25.00Without10 mm
9.043 94060360 mm25 mmCellulose25.00Without1,5 mm
9.043 94160380 mm28 mmCellulose25.00Without1,5 mm
9.043 94260380 mm30 mmCellulose25.00Without1,5 mm
9.043 944603100 mm30 mmCellulose25.00Without1,5 mm
9.043 947603145 mm48 mmCellulose25.00Without2,0 mm
9.043 948603200 mm48 mmCellulose25.00Without2,0 mm
6.242 685603250 mm80 mmCellulose25.00Without3,0 mm
6.255 34060360 mm22 mmCellulose25.00Without2,0 mm
7.009 81960380 mm27 mmCellulose25.00Without1,5 mm
7.009 823603100 mm28 mmCellulose25.00Without1,5 mm
7.009 833603130 mm34 mmCellulose25.00Without1,5 mm
7.009 838603123 mm41 mmCellulose25.00Without2,0 mm
7.009 845603250 mm75 mmCellulose25.00Without2,5 mm
