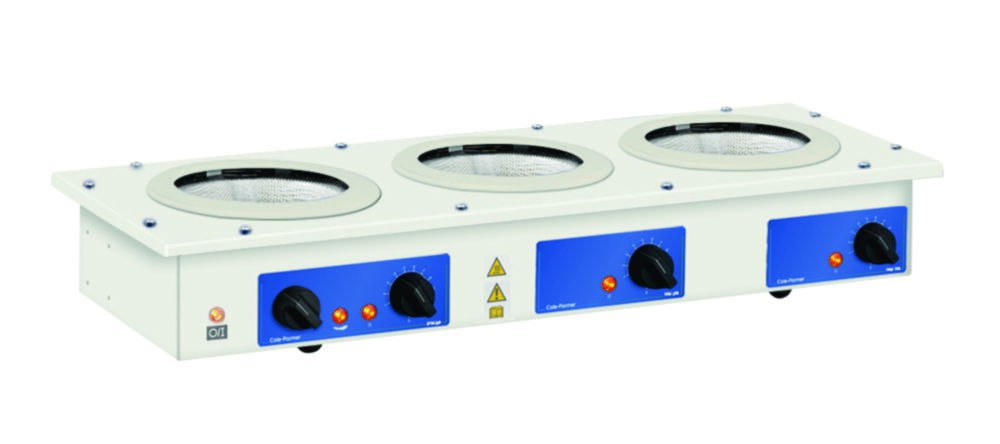

Extraction heating mantles HM-200-MP
The multi position (extraction) mantles have a built-in electronic controller. The vented case’s unique air flow ensures that the outer case does not heat up, preventing burns when touching it.
- Individual built-in solid state electronic controls enable easy regulation of heater, while removing sparking associated with mechanical switching
- 3 support rods with 12.7 mm diameter are included
- Top cover is made of polypropylene and external surfaces are powder coated, for good general chemical resistance
- Coiled heating element is suspended within a thermal insulating cartridge to provide maximum heat transfer
- Earth (ground) screen encloses the heater for added safety
- Individual heater cartridges are replaceable
- Neon lights indicate when power is on
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Height | Max. temperature | Max. voltage | atr_llg_no_of_heating_points | Catalog number | Plug type | Power supply | Rated capacity | Type | atr_llg_vessels_capacity | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 270 mm | 640 x 270 x 110 mm | 110 mm | 450 °C | 230 V | 3 | 9.595 113 | EU/UK | 230 V, 50...60 Hz | 180 W | HM-200-MP3-100 | 100 ml | 640 mm | 1.00 | ||
| 285 mm | 755 x 285 x 130 mm | 130 mm | 450 °C | 230 V | 3 | 9.595 116 | EU/UK | 230 V, 50...60 Hz | 900 W | HM-200-MP3-1000 | 1000 ml | 755 mm | 1.00 | ||
| 270 mm | 640 x 270 x 110 mm | 110 mm | 450 °C | 230 V | 3 | 9.595 114 | EU/UK | 230 V, 50...60 Hz | 450 W | HM-200-MP3-250 | 250 ml | 640 mm | 1.00 | ||
| 285 mm | 1,450 x 285 x 130 mm | 130 mm | 450 °C | 230 V | 6 | 9.595 126 | EU/UK | 230 V, 50...60 Hz | 1800 W | HM-200-MP6-1000 | 1000 ml | 1450 mm | 1.00 | ||
| 285 mm | 1,450 x 285 x 130 mm | 130 mm | 450 °C | 230 V | 6 | 9.595 125 | EU/UK | 230 V, 50...60 Hz | 1200 W | HM-200-MP6-500 | 500 ml | 1450 mm | 1.00 | ||
| 270 mm | 1,210 x 270 x 110 mm | 110 mm | 450 °C | 230 V | 6 | 9.595 123 | EU/UK | 230 V, 50...60 Hz | 420 W | HM-200-MP6-100 | 100 ml | 1210 mm | 1.00 | ||
| 270 mm | 1,210 x 270 x 110 mm | 110 mm | 450 °C | 230 V | 6 | 9.595 124 | EU/UK | 230 V, 50...60 Hz | 900 W | HM-200-MP6-250 | 250 ml | 1210 mm | 1.00 | ||
| 285 mm | 755 x 285 x 130 mm | 130 mm | 450 °C | 230 V | 3 | 9.595 115 | EU/UK | 230 V, 50...60 Hz | 600 W | HM-200-MP3-500 | 500 ml | 755 mm | 1.00 |
