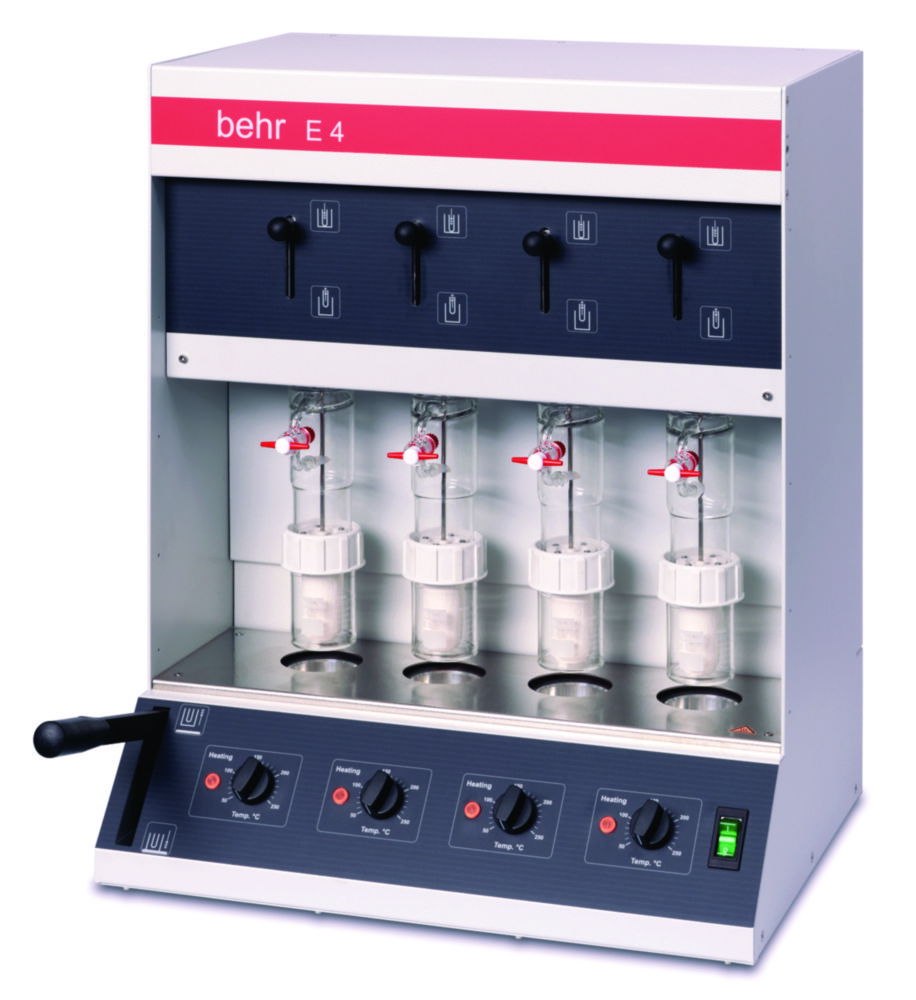

Extraction Unit for the Randall Method
Manual apparatus for hot extraction according to Randall. Several times faster than a customary Soxhlet extraction. Incl. 1 set of extraction thimbles, 100 ml.
- Optimal safety thanks to screw-fastened extraction units
Multiple position extraction units:
- Every extraction thimble with sample can be independently adjusted
- The user can lower and raise all the extraction units into/out of the heating chamber with a single lever
- Every heating position has a separate temperature control
- Specifications
- Dimensions (H x W x D, cm): approx. 81 x 55 x 63
- Weight, kg: approx. 32
- Voltage: 230V 50Hz a.c.
- Power consumption: Max. 1500W
Toote variatsioonid
| Type | Description | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|
| EX 75 HS | Extraction thimbles for the EB 75 reaction flask | 9.843 926 | 25.00 | ||
| EB 75 | Reaction flask | 9.843 927 | 1.00 | ||
| E1 | One sample position | 9.843 923 | 1.00 | ||
| E4 | Four individually adjustable sample positions | 9.843 922 | 1.00 | ||
| E6 | Six individually adjustable sample positions | 9.843 924 | 1.00 |
