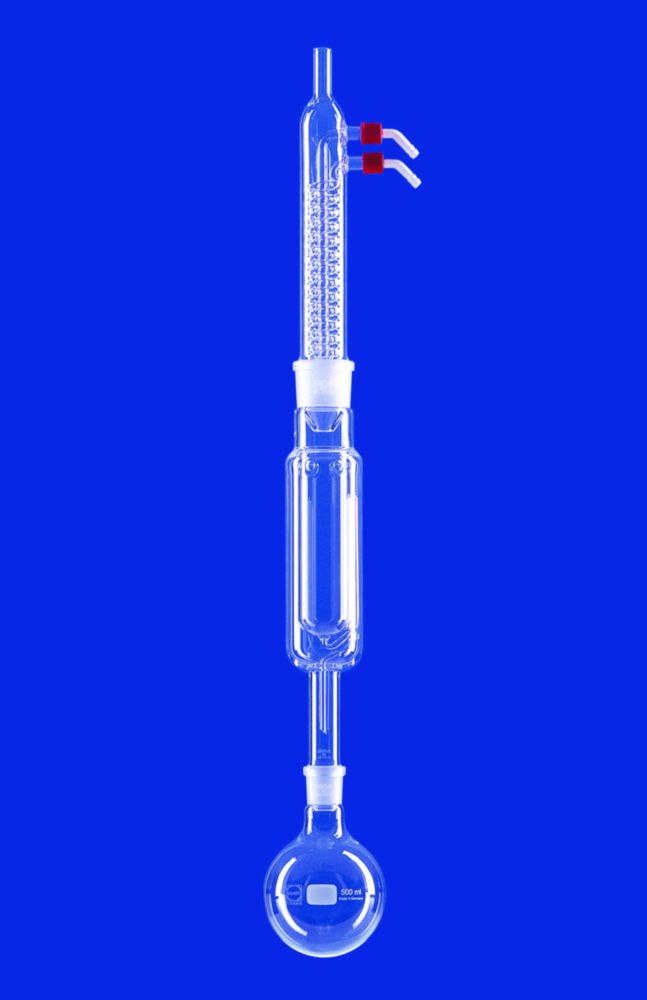

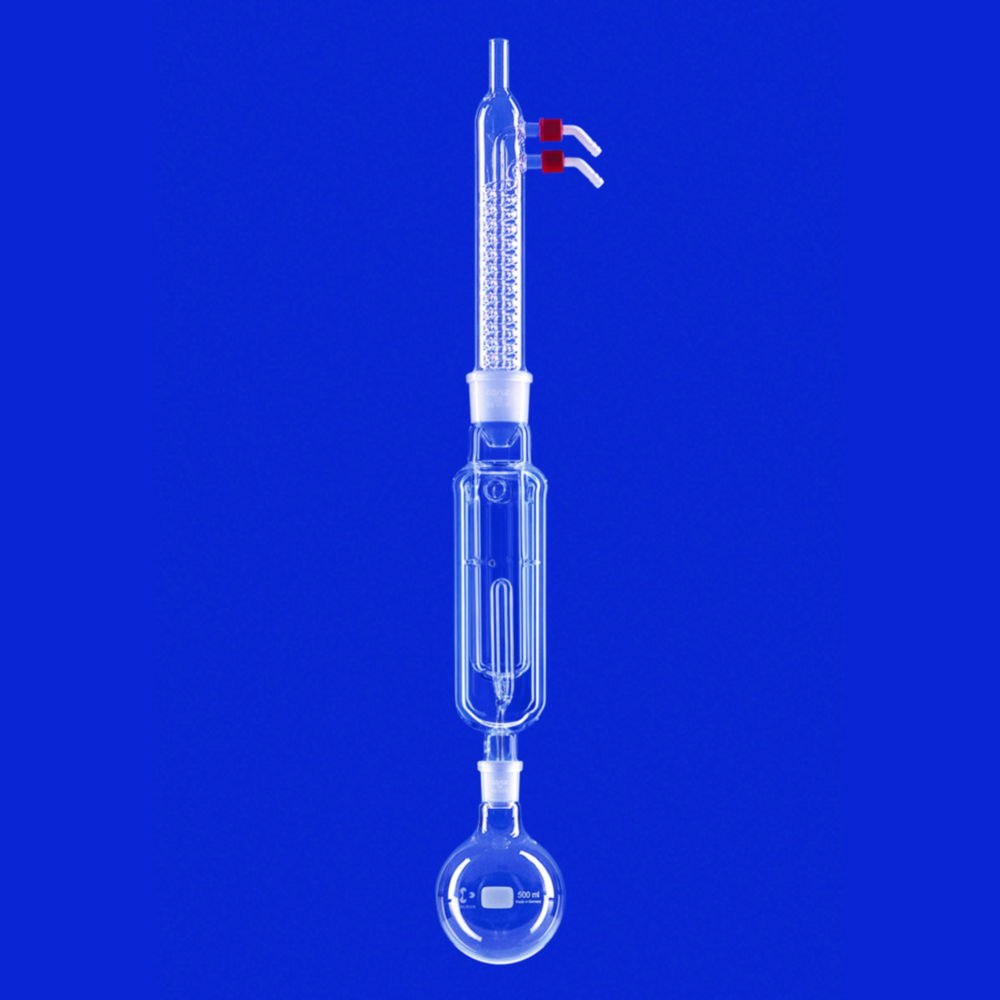

Extractors acc. to Knöfler-Böhm, DURAN® tubing
The condensate passes the extraction sample and flows back into the flask continuously without interrupting the extraction process, i.e. the solvent is recirculated continuously.
The complete apparatus consists of:
Jacketed extractor head made of DURAN® tubing, Dimroth condenser with thread GL 14, made of DURAN® tubing,
Round bottom flask material: DURAN®
Toote variatsioonid
| Catalog number | PK | Extraction method | Ground size | Material | atr_llg_vessels_capacity | Volume extractor | Kogus | |
|---|---|---|---|---|---|---|---|---|
| 6.237 313 | 1.00 | Acc. to Knöfler-Böhm | NS29/32 | DURAN® tubing | 100 ml | 30 ml | ||
| 6.237 312 | 1.00 | Acc. to Knöfler-Böhm | NS45/40 | DURAN® tubing | 250 ml | 150 ml | ||
| 9.043 010 | 1.00 | Acc. to Knöfler-Böhm | NS45/40 | DURAN® tubing | 500 ml | 250 ml | ||
| 9.043 020 | 1.00 | Acc. to Knöfler-Böhm | NS60/46 | DURAN® tubing | 1000 ml | 500 ml |
