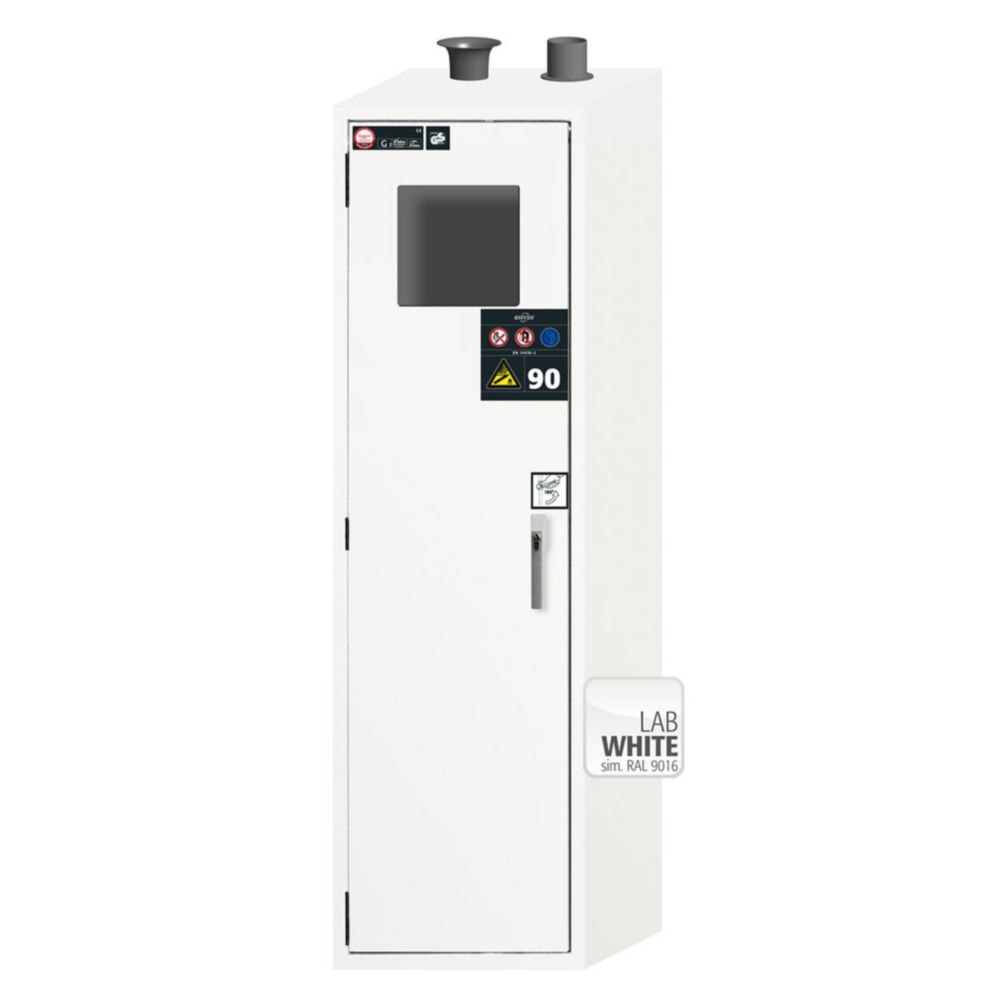

Fire Resistant Gas Cylinder Cabinets G90 Series for two 50 litre bottles with F90 glass-fronted wing door
- colour: grey RAL 7035
- exhaust air connection (NW75) on top of the cabinet
- adjusting aids to compensate for uneven floor
- lead-through points for pipes, sensors etc. in the ceiling of the cabinet

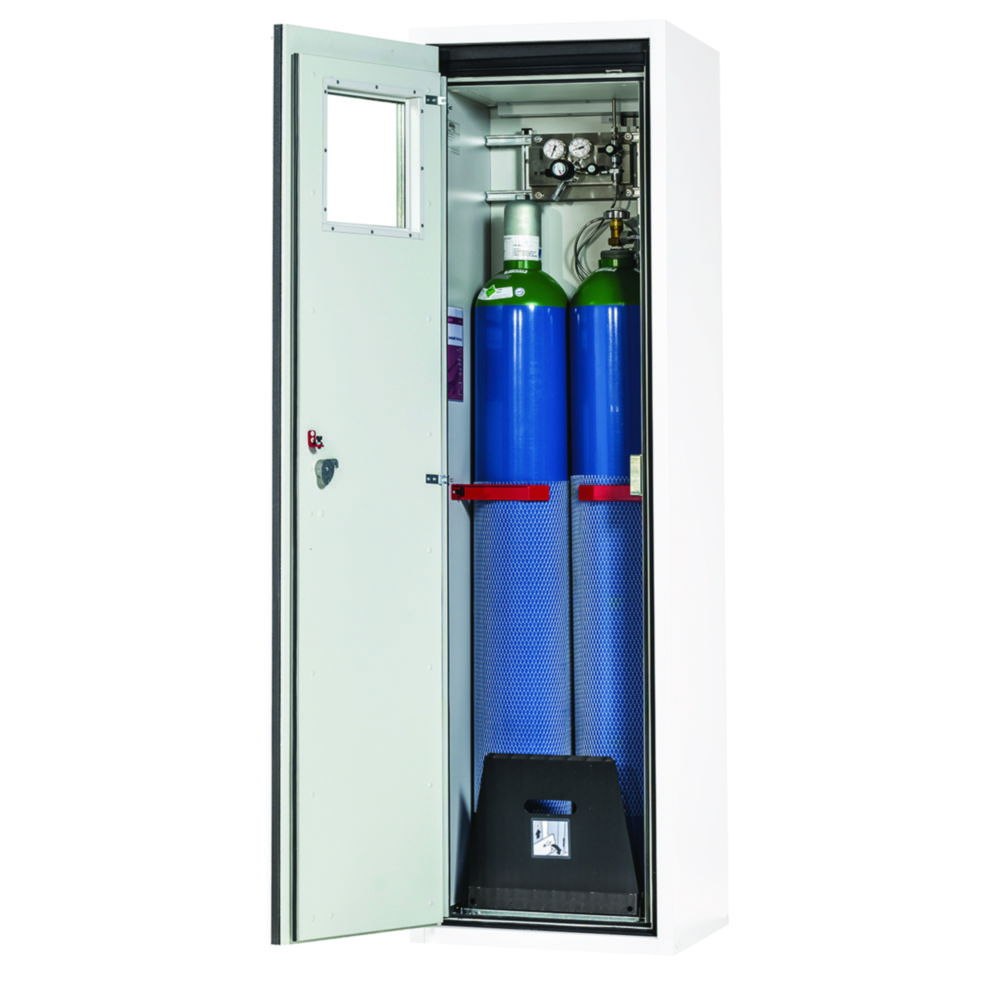

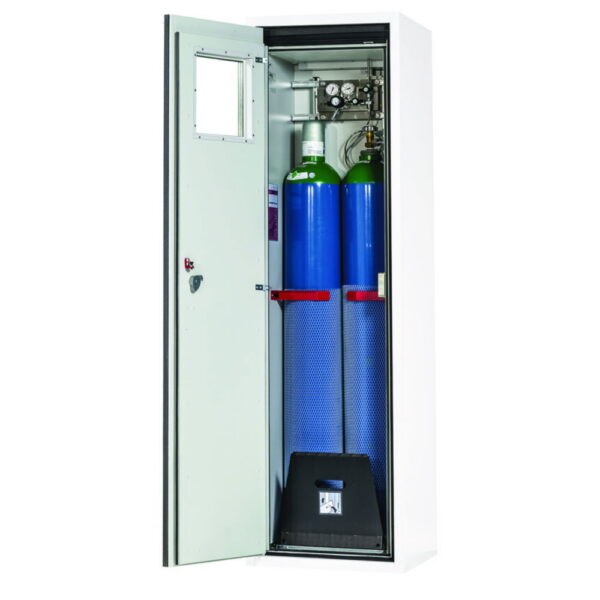

- complete with mounting rails, rolling ramp, bottle retainer with ratchet straps
- Approved and safe
- labelling in accordance with EN 14470-2, fire resistance of 90 minutes
- GS approved
Toote variatsioonid
| Catalog number | PK | Colour body | Colour doors | Depth int. | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | For gas cylinders | Height int. | Internal dimensions (WxDxH) | Int. width | Standard | Version cabinet | Weight | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.678 134 | 1.00 | White | White | 425 mm | 598 x 615 x 2,050 mm | 615 mm | 2050 mm | 598 mm | 2 x 50 l | 1858 mm | 477 x 425 x 1,858 mm | 477 mm | DIN EN 16121/16122 | Gas cylinder cabinet | 369 kg |
