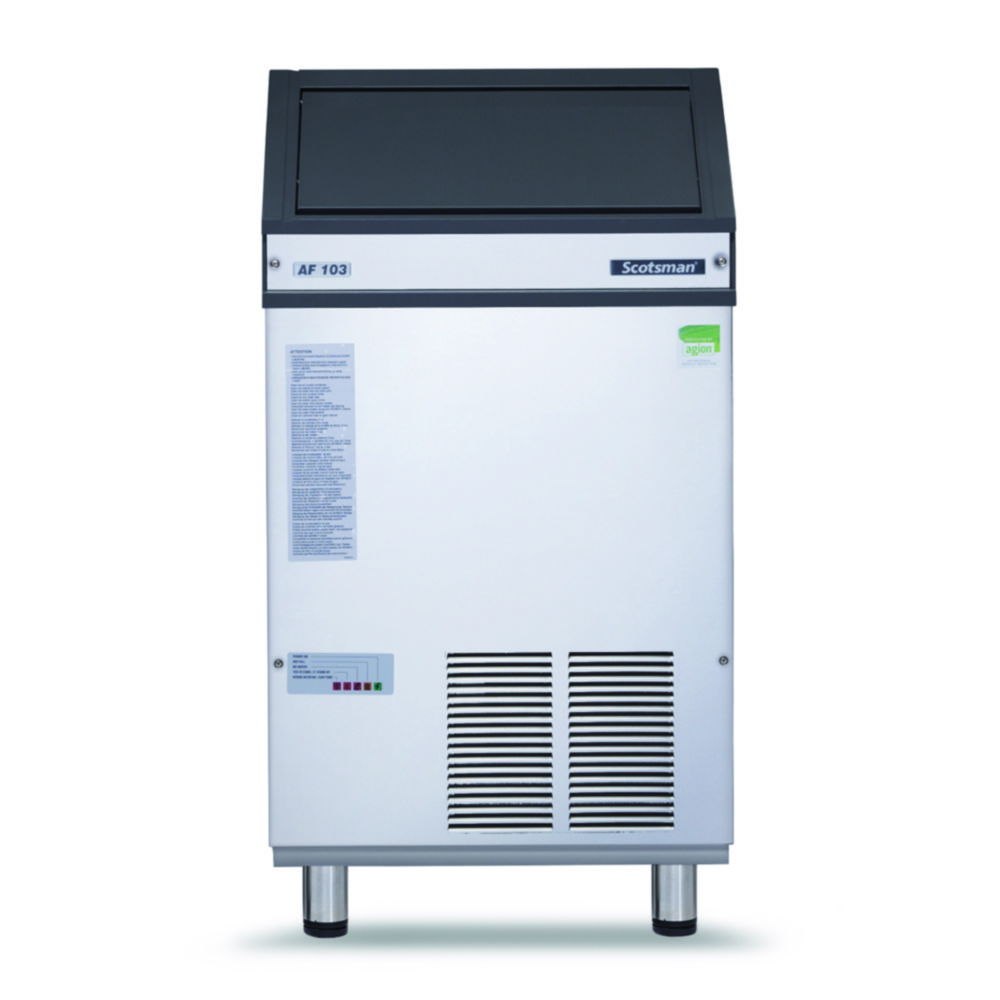

Flake ice maker AF series, with reservoir
Manufactured acc. to DIN ISO 9001. For producing solid, saturated ice flakes from hygienically perfect, 0.5 °C cold ice. Equipped with the sanitation system XSafe to increase safety and prolong service life. The included UV lamp reduces the infestation of bacteria and viruses in the machine and in the water circuit.
- Housing made of stainless steel
- Special material in the interior with antimicrobial properties
- Air-cooled condenser system
- Eletronic control of the ice temperature
- Filter cleaning notification
- Ergonomic access to ice through sliding door facilitates work
- Built-in reservoir, allows under-counter installation
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Height | Max. ice production | Max. voltage | Catalog number | Plug type | Power supply | Storage capacity | Type | Type of cooling | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 620 mm | 535 x 620 x 890 mm | 890 mm | 70 kg/24h | 230 V | 6.493 145 | EU | 230 V, 50 Hz | 25 kg | AF 87 XSafe | Air cooling | 50 kg | 535 mm | 1.00 | ||
| 622 mm | 592 x 622 x 1078 mm | 1078 mm | 130 kg/24h | 230 V | 6.327 265 | EU | 230 V, 50 Hz | 30 kg | AF 107 XSafe | Air cooling | 66 kg | 592 mm | 1.00 | ||
| 605 mm | 950 x 605 x 872 mm | 872 mm | 126 kg/24h | 230 V | 6.328 095 | EU | 230 V, 50 Hz | 40 kg | AF 126 XSafe | Air cooling | 66 kg | 950 mm | 1.00 |
