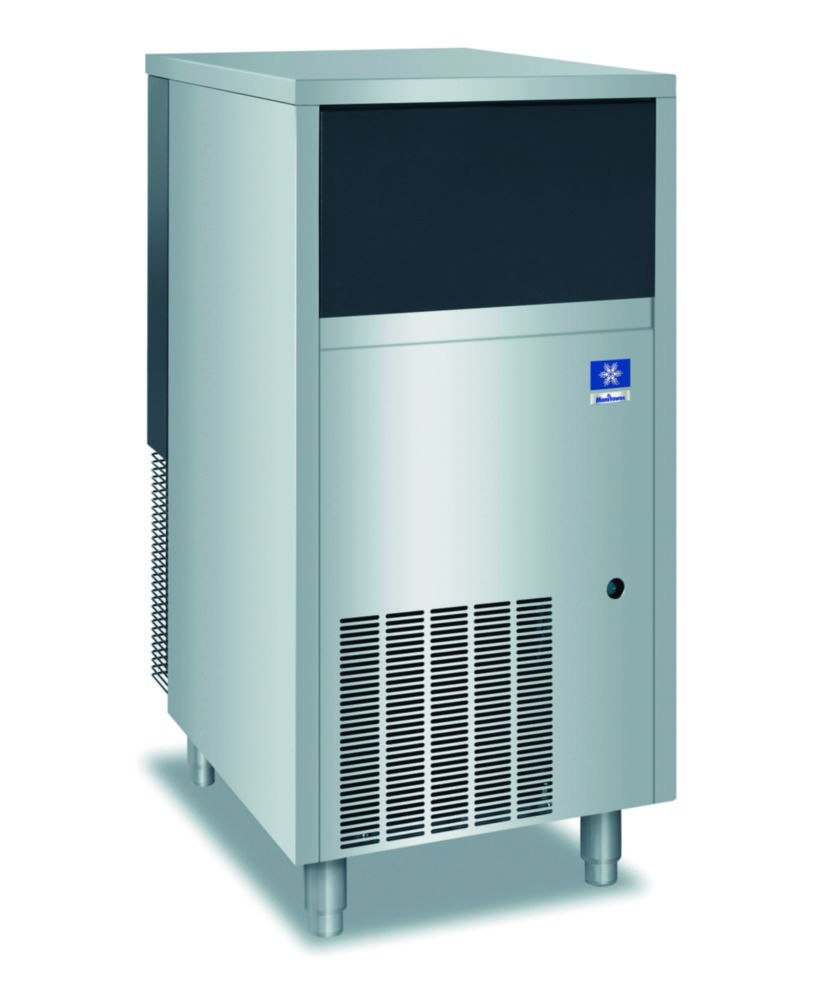

Flake ice maker with reservoir, UFP series, air cooled
For fast, HACCP-compliant production of various quantities of compact, granular ice flakes for laboratories, the chemical industry and food production. The ice is produced by a vertical stainless steel evaporator and transported by a worm gear to the head of the cylinder, pressed and broken into the desired size. For the production of up to 153 kg of ice per day. The new refrigerant R290 meets the requirements of the latest EU regulations, reduces energy consumption by up to 30%, has no ozone depletion potential and only a very low global warming potential.
- Robust stainless steel evaporator
- Easy ice removal
- Suitable for demineralised water
- Closed system for optimum hygiene
- Environmentally friendly refrigerant
- Air-cooled
- Depending on model, has storage capacities from 20 to 55 kg
- Stainless steel housing
- Easy to clean
- Height-adjustable feet from 110 to 150 mm
- Comfortable and safe operation
- Low energy consumption
Scope of supply: Flake ice maker with height-adjustable stainless steel feet, ice shovel, water inlet and outlet set
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Height | Max. ice production | Max. voltage | Catalog number | Power supply | Rated capacity | Storage capacity | Type | Type of cooling | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 660 mm | 500 x 660 x 843 mm | 843 mm | 113 kg/24h | 230 V | 4.667 960 | 230 V, 50 Hz | 470 W | 20 kg | UFP 0244 AF | Air cooling | 67 kg | 500 mm | 1.00 | ||
| 690 mm | 738 x 690 x 1173 mm | 1173 mm | 153 kg/24h | 230 V | 4.667 963 | 230 V, 50 Hz | 700 W | 55 kg | UFP 0399 AF | Air cooling | 105 kg | 738 mm | 1.00 | ||
| 660 mm | 500 x 660 x 953 mm | 953 mm | 113 kg/24h | 230 V | 4.667 961 | 230 V, 50 Hz | 470 W | 23 kg | UFP 0200 AF | Air cooling | 76 kg | 500 mm | 1.00 |
