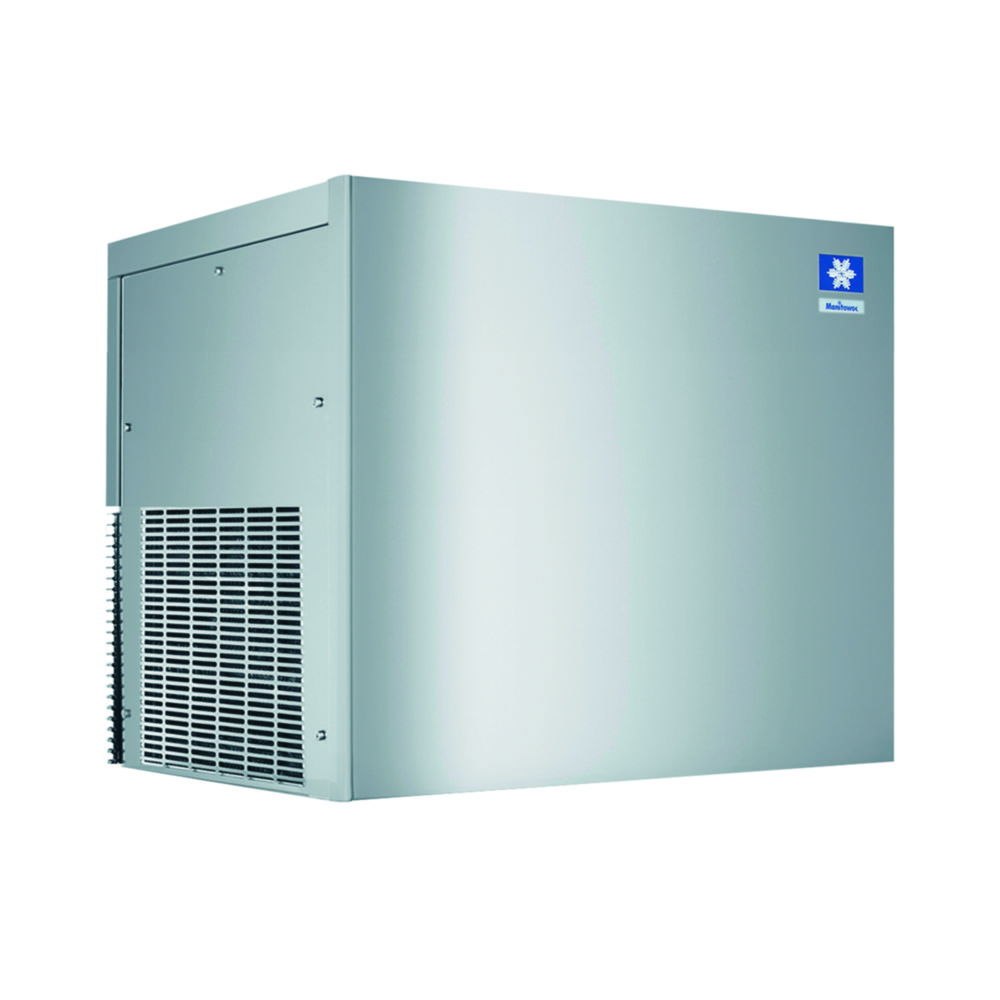

Flake ice maker without reservoir, RFP series, air cooled
For fast, HACCP-compliant production of various quantities of compact, granular ice flakes for laboratories, the chemical industry and food production. The ice is produced by a vertical stainless steel evaporator and transported by a worm gear to the head of the cylinder, pressed and broken into the desired size. For the production of up to 400 kg of ice per day. The new refrigerant R290 meets the requirements of the latest EU regulations, reduces energy consumption by up to 30%, has no ozone depletion potential and only a very low global warming potential.
- Robust stainless steel evaporator
- Suitable for demineralised water
- Environmentally friendly refrigerant
- Air-cooled
- Stainless steel housing
- Easy to clean
- Comfortable and safe operation
- Low energy consumption
Scope of supply: Flake ice maker, water inlet and outlet set
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Height | Max. ice production | Max. voltage | Catalog number | Power supply | Rated capacity | Type | Type of cooling | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 599 mm | 559 x 599 x 660 mm | 660 mm | 157 kg/24h | 230 V | 4.667 964 | 230 V, 50 Hz | 830 W | RFP 0320 A | Air cooling | 79 kg | 559 mm | 1.00 | ||
| 599 mm | 559 x 599 x 660 mm | 660 mm | 280 kg/24h | 230 V | 4.667 965 | 230 V, 50 Hz | 1100 W | RFP 0620 A | Air cooling | 104 kg | 559 mm | 1.00 | ||
| 599 mm | 762 x 599 x 700 mm | 700 mm | 400 kg/24h | 230 V | 4.667 966 | 230 V, 50 Hz | 1400 W | RFP 1300 A | Air cooling | 119 kg | 762 mm | 1.00 |
