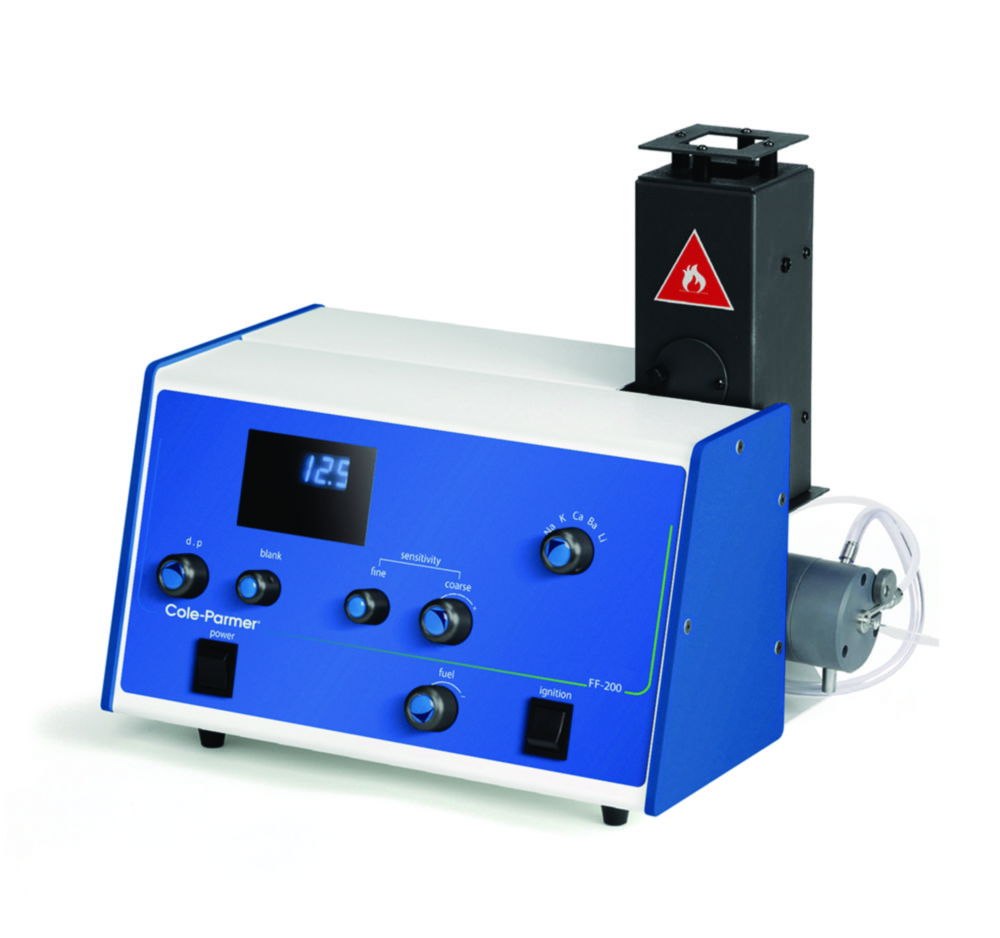

Flame Photometer FF-200

Single channel, low temperature flame photometer for use in industry, medicine and education. Can be operated with propane, butane, natural gas or liquid gas (LPG). With built-in electronic flame failure safety system for operational safety.

• Model FF-200D-I incl. Na, K, Ca, Ba and Li filters
• Model FF-200D-R incl. Na, K and Li filters
• 3 year warranty

Supplied with: Na, K, Li filters (model FF-200D-R), additionally Ba and Ca filter (model FF-200D-I), connecting hoses and clips, compressor plug, drain trap, fuses and operating/service instructions

• Specifications
• Range FF-200D-I:
  Range FF-200D-R:
  Limits of detection
  Na/K:
  Li:
  Ca:
  Ba: 0 … 199.9 ppm
  120 … 160 ppm Na, 0 … 10 ppm K

  < 0.2 ppm
  < 0.25 ppm
  < 15 ppm
  < 30 ppm

• Reproducibility: < 1 % (Coefficient of variation for 20 consecutive samples using 10 ppm Na set to a reading of 50)
• Linearity: < 2 % (when concentration of 3 ppm Na/K and 5 ppm Li are set to a reading of 100)
• Specificity: Interference from Na, K and Li equal in concentration to test element will be < 0.5 %
• Recorder output: Nominal 1.00 V for a reading of 100.0
• Air: 6 l/min at 1 Kg/cm² /14psi (oil and moisture free pressurised air)
• Dimensions (W x D x H):
  Weight: 420 x 360 x 300 mm
  8 kg
• Power supply: 190 … 250 V, 50/60 Hz
