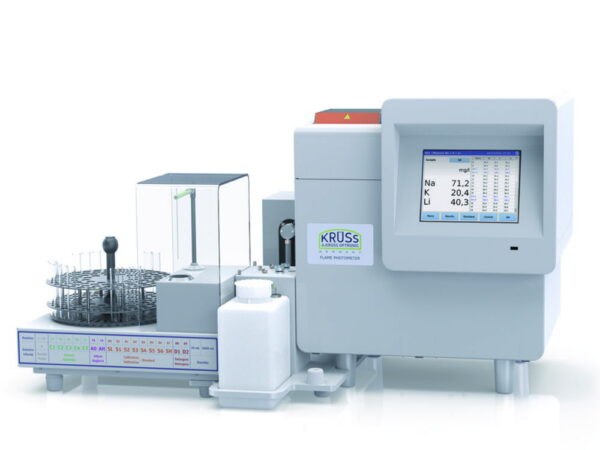

Flame Photometers FP8000 series

Even the lowest concentrations of alkali and alkaline earth elements in aqueous solutions can be determined cost-effectively and user-friendly. Simultaneous measurement of the elements Na, K, Ca and Li in the laboratory and process analysis (others on request). Thanks to proven measuring methods and modern instrument electronics, the flame photometers achieve precise and reproducible measurement results in a matter of seconds with maximum operational reliability. Suitable for individual measurements, fully automatic measuring operation, continuous operation and use as a process instrument.

• Economic, user-friendly and durable solution for use in laboratory and process operation
• Simultaneous measurement of up to four alkaline and alkaline earth elements, depending on model up to 300 measurements per hour
• Maximum operational safety through intelligent security mechanisms
• Simple operation through touch screen and intuitive software
• To use with Popan/Butan (alkaline elements) and Acetylene (alkaline earth elements)
• Interfaces: 2 x USB, 1 x Ethernet, 1 x RS-232 for printer, FP8500 additionally: Upgrade 4 to 20 mA analogue, passive current interface
• Compliance with international norms and standards

• Specifications
• Measuring ranges:
  Na/K/Li
  Ca
  0,01 … 4500 ppm
  0,50 … 4500 ppm
• Calibration: Linear with 2 standards
  Not-linear with 6-8 standards, cubic approximation
• Drift: 1 % in 60 min
• Reference: Lithium guideline with 5 mmol/l
  Cäsium guideline on request
