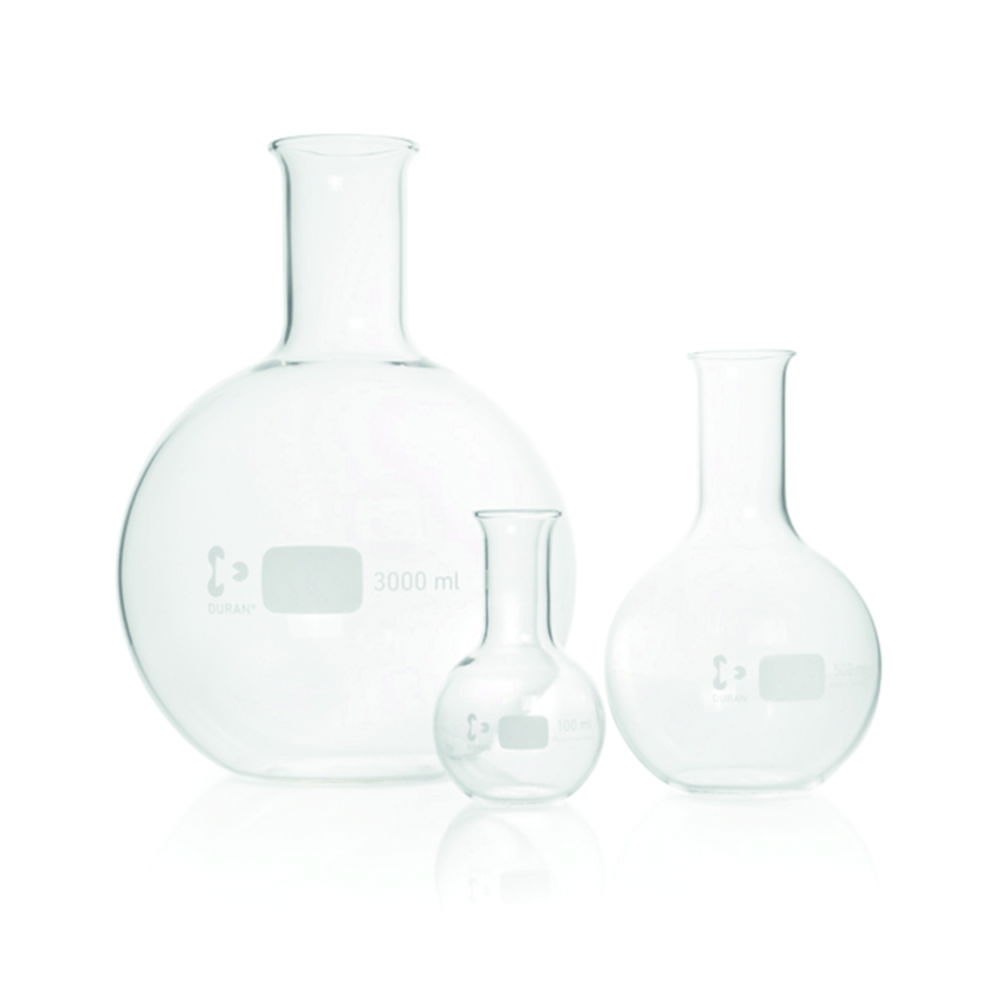

Flat bottom flasks, DURAN®, narrow neck
Uniform wall thickness distribution makes these beakers ideal for heating applications. Flat base means flasks can be set down without a supporting ring. Flasks with a neck diameter of 65 mm have a reinforced rim.
- DIN ISO 1773
- With beaded rim
- Glass Type I / neutral glass as per USP, EP and JP
- Autoclavable
Toote variatsioonid
| Autoclavable | Ø | Dimensions (ØxH) | Height | Material | Neck Ø | Nominal capacity | Catalog number | Standard | With beaded rim | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Yes | 280 mm | 280 x 360 mm | 360 mm | DURAN® glass | 65 mm | 10000 ml | 9.141 686 | DIN ISO 1773 | Yes | 1.00 | ||
| Yes | 131 mm | 131 x 190 mm | 190 mm | DURAN® glass | 42 mm | 1000 ml | 9.141 654 | DIN ISO 1773 | Yes | 1.00 | ||
| Yes | 207 mm | 207 x 275 mm | 275 mm | DURAN® glass | 50 mm | 4000 ml | 9.141 671 | DIN ISO 1773 | Yes | 1.00 | ||
| Yes | 185 mm | 185 x 250 mm | 250 mm | DURAN® glass | 50 mm | 3000 ml | 9.141 668 | - | Yes | 1.00 | ||
| Yes | 166 mm | 166 x 250 mm | 250 mm | DURAN® glass | 42 mm | 2000 ml | 9.141 664 | - | Yes | 1.00 | ||
| Yes | 223 mm | 223 x 290 mm | 290 mm | DURAN® glass | 50 mm | 5000 ml | 9.141 673 | - | Yes | 1.00 | ||
| Yes | 237 mm | 237 x 315 mm | 315 mm | DURAN® glass | 65 mm | 6000 ml | 9.141 676 | DIN ISO 1773 | Yes | 1.00 | ||
| Yes | 64 mm | 64 x 105 mm | 105 mm | DURAN® glass | 26 mm | 100 ml | 9.141 624 | DIN ISO 1773 | Yes | 1.00 | ||
| Yes | 105 mm | 105 x 163 mm | 163 mm | DURAN® glass | 34 mm | 500 ml | 9.141 644 | DIN ISO 1773 | Yes | 1.00 | ||
| Yes | 85 mm | 85 x 138 mm | 138 mm | DURAN® glass | 34 mm | 250 ml | 9.141 636 | DIN ISO 1773 | Yes | 1.00 | ||
| Yes | 51 mm | 51 x 90 mm | 90 mm | DURAN® glass | 26 mm | 50 ml | 9.141 617 | DIN ISO 1773 | Yes | 1.00 |
