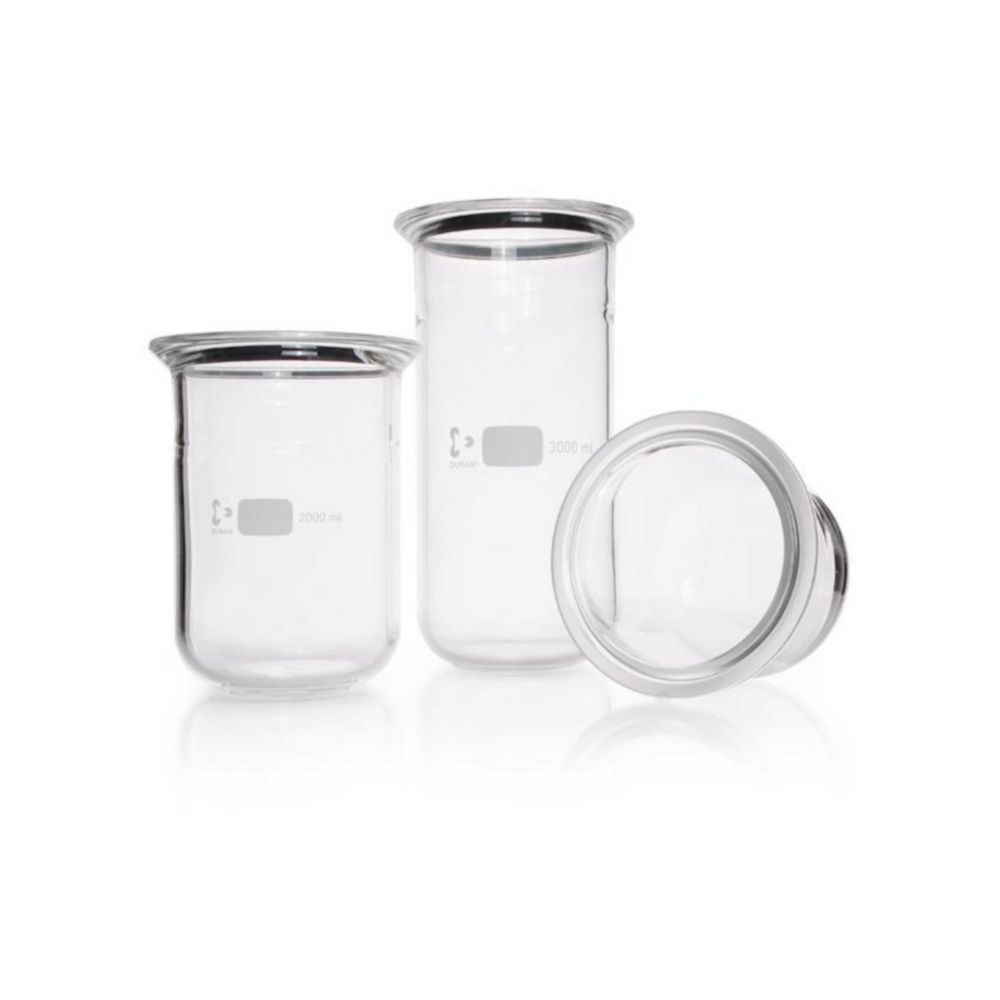

Flat flange beakers, DURAN®
Flanged neck with groove for vacuum use. Maximum 0.5bar working pressure at 250°C. Capacities indicated are brim-full volumes. We recommend that these beakers are heated in water or oil baths. Glass Type I / neutral glass as per USP, EP and JP. Autoclavable.
Toote variatsioonid
| Autoclavable | DN | Ext. Ø | Flange ext. Ø | Material | Max. pressure | Nominal capacity | Catalog number | Overall height | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Yes | 120 | 130 mm | 158 mm | Boro 3.3 | 0.5 bar | 1360 ml | 9.142 271 | 125 mm | 1.00 | ||
| Yes | 120 | 130 mm | 158 mm | Boro 3.3 | 0.5 bar | 2200 ml | 9.142 272 | 200 mm | 1.00 | ||
| Yes | 120 | 130 mm | 158 mm | Boro 3.3 | 0.5 bar | 3220 ml | 9.142 273 | 290 mm | 1.00 |
