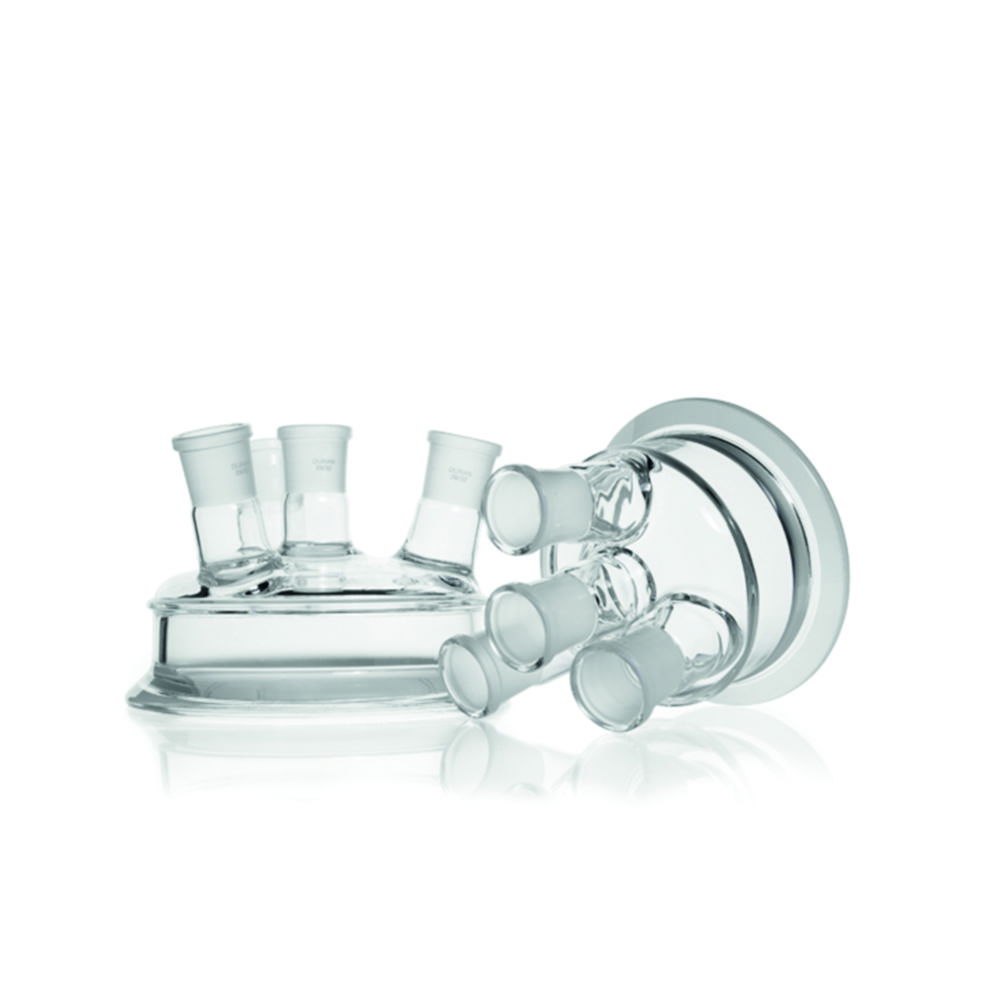

Flat ground flange lids, DURAN®
With four ground joint necks as outlined below. 1 bar max. operating pressure at 250 °C. Glass Type I / neutral glass as per USP, EP and JP. Autoclavable.
Toote variatsioonid
| Autoclavable | DN | Height | Material | Max. pressure | Side necks oblique | Catalog number | PK | Side necks straight | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| Yes | 100 | 125 mm | DURAN® glass | 1 bar | 3 x NS29/32 | 9.142 246 | 1.00 | - | ||
| Yes | 150 | 130 mm | DURAN® glass | 1 bar | - | 9.142 257 | 1.00 | 3 x NS29/32 | ||
| Yes | 150 | 130 mm | DURAN® glass | 1 bar | 3 x NS29/32 | 9.142 258 | 1.00 | - | ||
| Yes | 150 | 140 mm | DURAN® glass | 1 bar | 3 x NS29/32 | 9.142 260 | 1.00 | - | ||
| Yes | 100 | 125 mm | DURAN® glass | 1 bar | 2 x NS29/32 | 9.142 247 | 1.00 | 1 x NS14/23 | ||
| Yes | 150 | 120 mm | DURAN® glass | 1 bar | 2 x NS29/32 | 9.142 259 | 1.00 | 1 x NS14/23 | ||
| Yes | 100 | 105 mm | DURAN® glass | 1 bar | 2 x NS29/32, 1 x NS14/23 | 9.142 476 | 1.00 | - | ||
| Yes | 120 | 130 mm | DURAN® glass | 1 bar | 2 x NS29/32 | 9.142 251 | 1.00 | 1 x NS14/23 |
