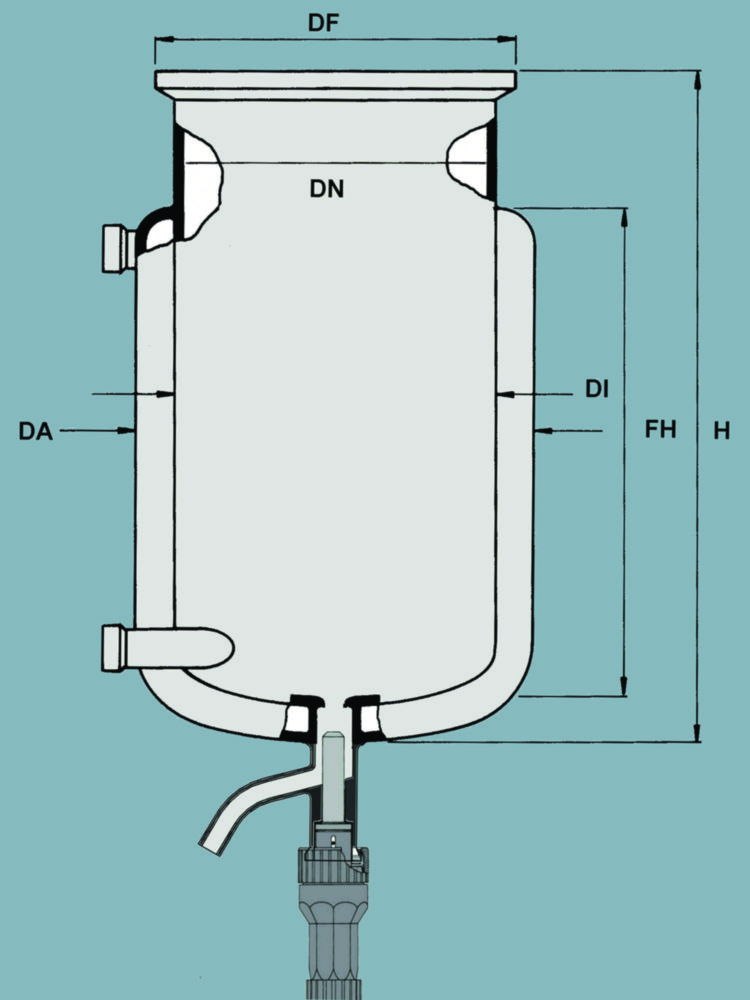

Flat ground flange reaction vessels, jacketed
Flange with groove in accordance with DIN 12214. Flask with thermostatic jacket and type “T” 10mm bore PTFE drain valve.
Toote variatsioonid
| DN | Ext. Ø | Flange ext. Ø | Height int. | Nominal capacity | Catalog number | Overall height | With jacket | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| 150 | 200 mm | 184 mm | 130 mm | 2000 ml | 9.142 043 | 230 mm | Yes | 1.00 | ||
| 200 | 250 mm | 242 mm | 340 mm | 10000 ml | 9.142 056 | 445 mm | Yes | 1.00 |
