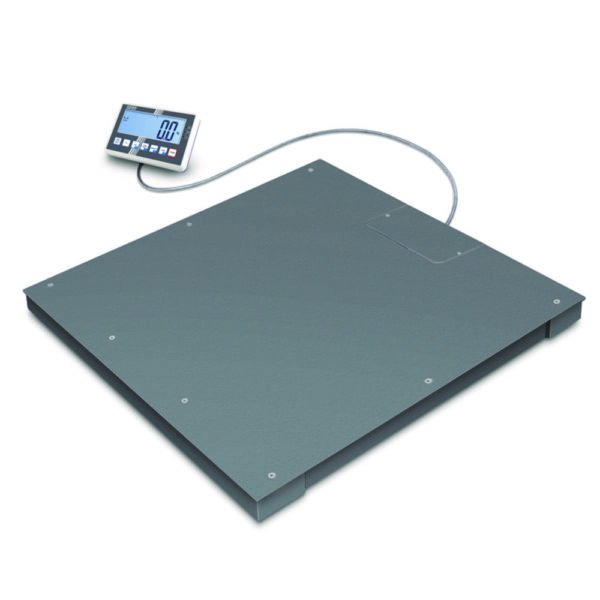

Floor scales, BFC, IoT-Line
Data and control commands can be exchanged through the KERN Universal Port KUP) using one interface, which can be connected to the housing, or through three parallel interfaces using the KUP Extension box.
- Smooth surface, screwed on from the top
- Silicone-coated steel load cells
- With real time clock
- Dimensions of display device (W×D×H): 220×145×65 mm
Scope of supply: Floor scales, benchtop stand incl. wall mount for display device, protective working cover
Toote variatsioonid
| Adjusting program | Depth | Depth weighing plate | Dimensions (WxDxH) | Height | Linearity | Max. load | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Readability | Reproducibility | Type | Verified calibration | Waranty | Weighing plate (WxD) | Weight | Width | Width weighing plate | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| External | 1250 mm | 1250 mm | 1,500 x 1,250 x 85 mm | 85 mm | ±1,5 kg | 1500 kg | 240 V | 100 V | 4.711 761 | EU/CH/UK/US | 100 ... 240 V | 0,5 kg | 0,5 kg | BFC 1.5T-4M | Verifiable | 3 years | 1,500 x 1,250 mm | 150 kg | 1500 mm | 1500 mm | 1.00 | ||
| External | 1500 mm | 1500 mm | 1,500 x 1,500 x 123 mm | 123 mm | ±2 kg | 6000 kg | 240 V | 100 V | 4.711 767 | EU/CH/UK/US | 100 ... 240 V | 2 kg | 2 kg | BFC 6T-3M | Verifiable | 3 years | 1,500 x 1,500 mm | 225 kg | 1500 mm | 1500 mm | 1.00 | ||
| External | 1000 mm | 1000 mm | 1,000 x 1,000 x 85 mm | 85 mm | ±1,5 kg | 1500 kg | 240 V | 100 V | 4.711 762 | EU/CH/UK/US | 100 ... 240 V | 0,5 kg | 0,5 kg | BFC 1.5T-4SM | Verifiable | 3 years | 1,000 x 1000 mm | 100 kg | 1000 mm | 1000 mm | 1.00 | ||
| External | 1250 mm | 1250 mm | 1,500 x 1,250 x 85 mm | 85 mm | ±0,4 kg | 600 kg | 240 V | 100 V | 4.711 765 | EU/CH/UK/US | 100 ... 240 V | 0.2 kg | 0,2 kg | BFC 600K-1M | Verifiable | 3 years | 1,500 x 1,250 mm | 150 kg | 1500 mm | 1500 mm | 1.00 | ||
| External | 1500 mm | 1500 mm | 1,500 x 1,500 x 85 mm | 85 mm | ±2 kg | 3000 kg | 240 V | 100 V | 4.711 763 | EU/CH/UK/US | 100 ... 240 V | 1 kg | 1 kg | BFC 3T-3LM | Verifiable | 3 years | 1,500 x 1,500 mm | 175 kg | 1500 mm | 1500 mm | 1.00 | ||
| External | 1000 mm | 1000 mm | 1,000 x 1,000 x 85 mm | 85 mm | ±0,6 kg | 600 kg | 240 V | 100 V | 4.711 766 | EU/CH/UK/US | 100 ... 240 V | 0.2 kg | 0,2 kg | BFC 600K-1SM | Verifiable | 3 years | 1,000 x 1000 mm | 95 kg | 1000 mm | 1000 mm | 1.00 | ||
| External | 1250 mm | 1250 mm | 1,500 x 1,250 x 85 mm | 85 mm | ±2 kg | 3000 kg | 240 V | 100 V | 4.711 764 | EU/CH/UK/US | 100 ... 240 V | 1 kg | 1 kg | BFC 3T-3M | Verifiable | 3 years | 1,500 x 1,250 mm | 150 kg | 1500 mm | 1500 mm | 1.00 |
