Floor scales BXC, IoT-Line

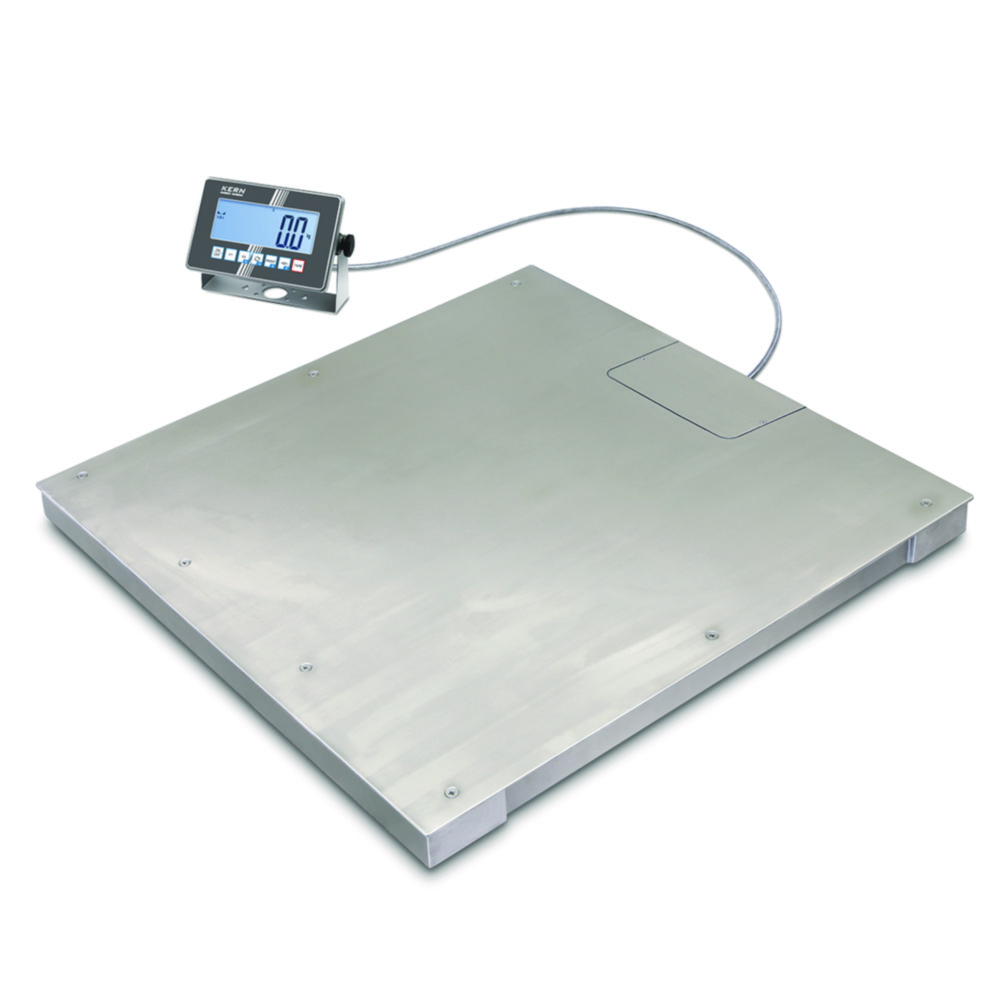

Stainless steel floor scale with screwed-on weighing plate and stainless steel display device.
- Tough industry standard suitable for use in harsh industrial applications
- Weighing bridge: stainless steel, extremely resistant to bending due to material thickness
- Welded stainless steel load cells
- IoT line: networkable balances
- The exchange of data and control commands is optional using up to four interfaces
- Dimensions display device (WxDxH): 232×150×80 mm
Scope of supply: Floor scale, benchtop stand incl. wall mount for display device
Toote variatsioonid
| Adjusting program | Depth | Depth weighing plate | Dimensions (WxDxH) | Height | Linearity | Max. load | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Readability | Reproducibility | Verified calibration | Waranty | Weighing plate (WxD) | Weight | Width | Width weighing plate | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| External | 1250 mm | 1250 mm | 1,500 x 1,250 x 85 mm | 85 mm | ±1,5 kg | 3000 kg | 240 V | 110 V | 4.711 770 | EU | 110 ... 240 V | 1 kg | 1 kg | Verifiable | 3 years | 1,500 x 1,250 mm | 150 kg | 1500 mm | 1500 mm | 1.00 | ||
| External | 1000 mm | 1000 mm | 1,000 x 1,000 x 85 mm | 85 mm | ±1,5 kg | 1500 kg | 240 V | 110 V | 4.711 769 | EU | 110 ... 240 V | 0,5 kg | 0.5 kg | Verifiable | 3 years | 1,000 x 1000 mm | 100 kg | 1000 mm | 1000 mm | 1.00 | ||
| External | 1250 mm | 1250 mm | 1,500 x 1,250 x 85 mm | 85 mm | ±1,5 kg | 1500 kg | 240 V | 110 V | 4.711 768 | EU | 110 ... 240 V | 0,5 kg | 0.5 kg | Verifiable | 3 years | 1,500 x 1,250 mm | 150 kg | 1500 mm | 1500 mm | 1.00 | ||
| External | 1000 mm | 1000 mm | 1,000 x 1,000 x 85 mm | 85 mm | ±0,6 kg | 600 kg | 240 V | 110 V | 4.711 771 | EU | 110 ... 240 V | 0,2 kg | 0.2 kg | Verifiable | 3 years | 1,000 x 1000 mm | 100 kg | 1000 mm | 1000 mm | 1.00 |
