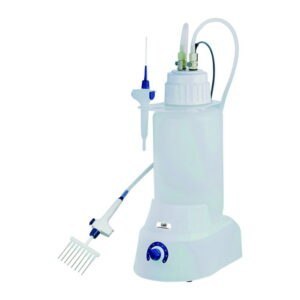

Fluid aspiration systems BioChem-VacuuCenter BVC basic, PP bottle
The BioChem-VacuuCenter BVC basic is designed for connection to an existing external vacuum source like a diaphragm pump or a vacuum network (e.g., VACUU·LAN®) and does not require electric power.
- With chemical-resistant, mechanical vacuum regulator and integrated check valve to provide optimum working vacuum and minimise the vapor load on the vacuum network
- The evaporation of collected liquid is minimised
- Autoclavable collection bottle designed to reduce aerosol- and foam formation
- Aspiration hand set VacuuHandControl (VHCpro) with flow-through suction tube, mechanics is not in contact with media
- Highly reduced contamination risks for the vacuum pumping system due to hydrophobic 0.2 µm sterilisable filter
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Height | Material trap flask | Max. voltage | Catalog number | Plug type | Power supply | Type | Weight | Width | With level sensor | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 250 mm | 200 x 250 x 490 mm | 490 mm | PP | 230 V | 9.882 225 | CEE | 230 V, 50...60 Hz | BVC basic | 2.8 kg | 200 mm | No | 1.00 |
