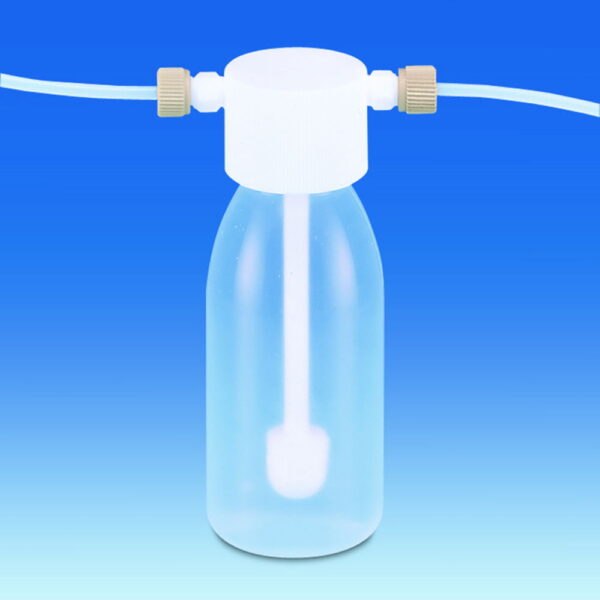

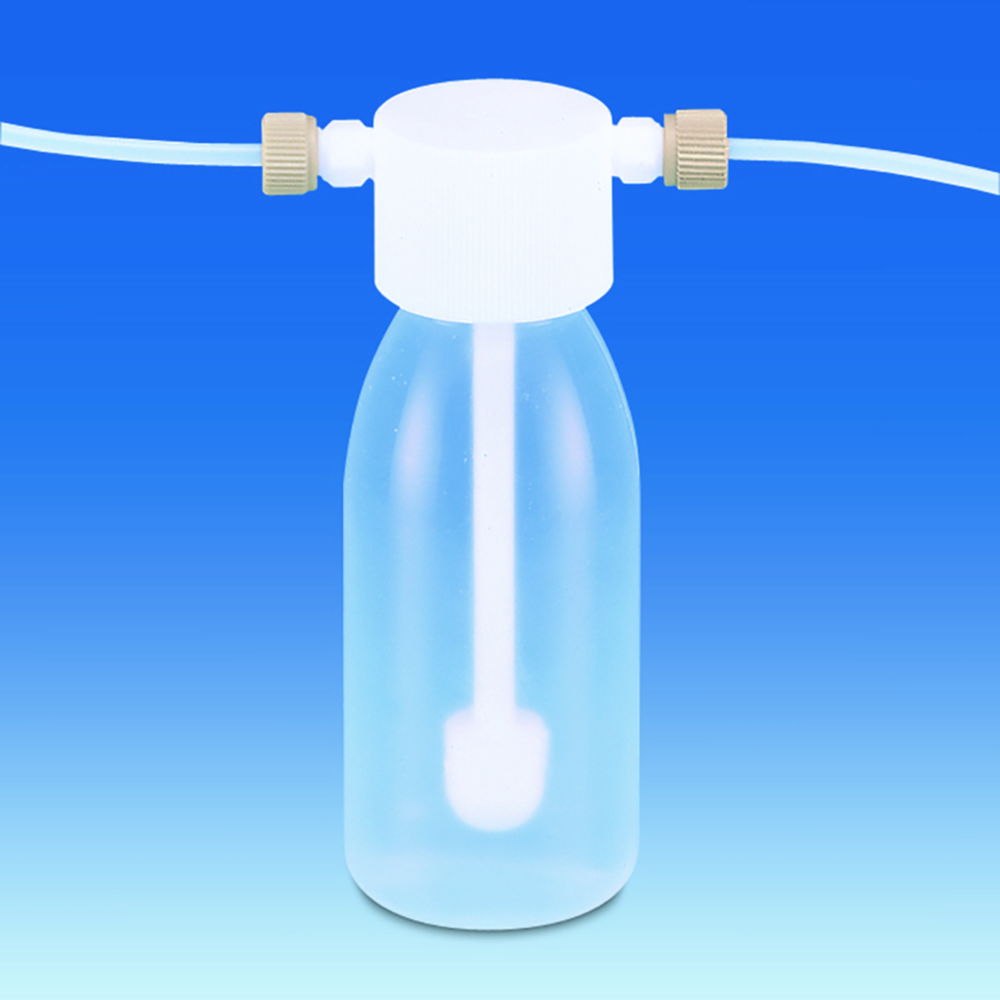

Gas washing bottles, PFA
With cap with S40 screw thread and srewable frit made of PTFE. Approx. pore size 3 µm for optimal formation of gas bubbles into the liquid. Because all parts are made of high-quality fluorocarbon resins, a broad range of applications are possible. The threaded inlet and outlet connections accept 4 x 6mm i.d. x o.d. tubing , (1000 ml version: 5 x 8mm i.d. x o.d. tubing).
Toote variatsioonid
| Catalog number | PK | Ø | Height bottle | Material | Nominal capacity | Thread | Kogus | |
|---|---|---|---|---|---|---|---|---|
| 9.110 324 | 1.00 | 96 mm | 240 mm | PFA | 1000 ml | S40 | ||
| 9.110 322 | 1.00 | 76 mm | 190 mm | PFA | 500 ml | S40 | ||
| 9.110 320 | 1.00 | 61 mm | 160 mm | PFA | 250 ml | S40 |
