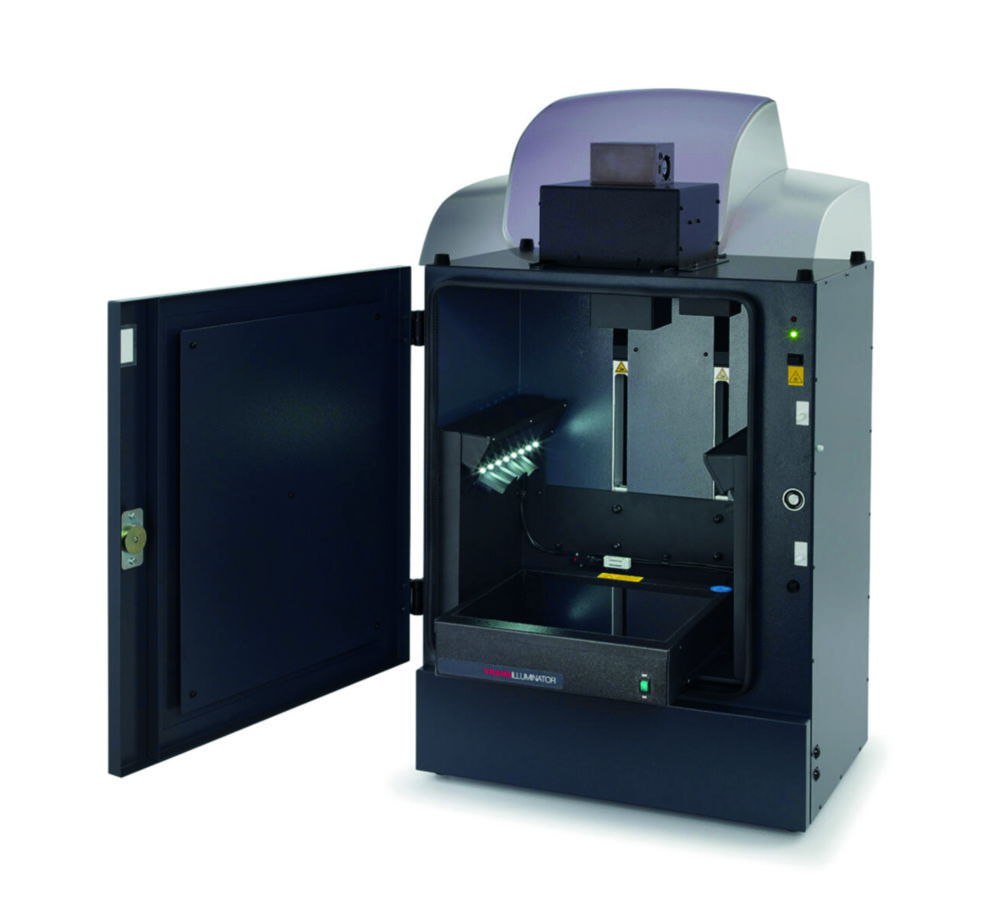

Gel documentation system chemiPRO XL6 / XL9
Imaging system for the detection of proteins in Western Blot analysis. Peltier cooling of the highly sensitive CCD camera allows exposure times to be increased to detect even faint chemiluminescence without adding background noise.
- Cooled, high-resolution camera with high quantum efficiency (QE)
- Motorised lens, stage and filter wheel (7-stage)
- Long-life white LED EPI lighting
- CFR21 Part 11 compliant
- With acquisition and analysis software genePIX and geneQUANT
Scope of supply: Gel documentation system, UV filter, manual, acquisition and analysis software
Toote variatsioonid
| Catalog number | PK | Depth | Dimensions (WxDxH) | Field of view | Height | Lens | Max. voltage | Power supply | Sensor | Type | Weight | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.670 741 | 1.00 | 550 mm | 570 x 550 x 990 mm | 345 x 276 mm | 990 mm | f0.8/f0.95, auto focus | 230 V | 230 V, 50 Hz | CCD | chemiPro XL6 | 45 kg | 570 mm | ||
| 4.670 742 | 1.00 | 550 mm | 570 x 550 x 990 mm | 345 x 276 mm | 990 mm | f0.8/f0.95, auto focus | 230 V | 230 V, 50 Hz | CCD | chemiPro XL9 | 45 kg | 570 mm |
