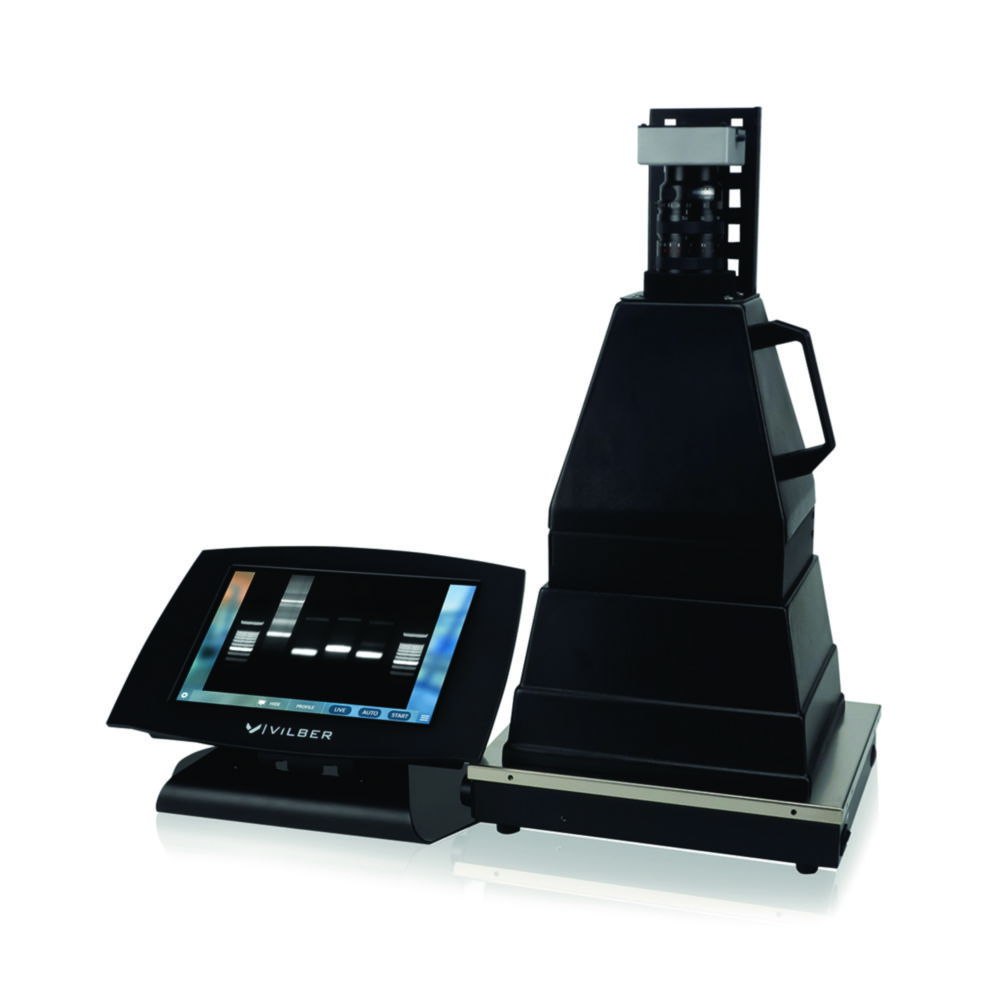

Gel Documentation System Doc-Print CX3
Doc-Print CX3 is a stand-alone system with a small footprint that doesn’t need a computer. The free VisionCapt software guarantees full GLP compliance. Molecular weight calculation, band quantification, colony counting, distance calculation, text annotations and image enhancement are included.
- Field of view: 24 x 18 cm
- Scientific grade camera – Made in Germany
- 3 megapixel resolution (extandable to 20 megapixels)
- Auto-exposure
- 16-bit – 65 536 grey levels
- Passive cooling
- USB 3 connection
- Large 12.6″ touchscreen interface display
- Self-understandable user interface
- Print or save on an external drive via the USB port
- Connection of a thermal printer possible
All models include the following standard components: Imaging unit with touch display and software, camera, zoom objective, UV-/vis F-590 Filter and dark hood.
Toote variatsioonid
| Type | Catalog number | PK | Kogus | |
|---|---|---|---|---|
| DOC-Print CX3 - standard components | 9.971 948 | 1.00 | ||
| DP CX3-20.M - standard components + UV transilluminator | 9.971 950 | 1.00 | ||
| DP CX3-P-20.M - standard components + grey-level thermal printer and UV transilluminator | 9.971 951 | 1.00 | ||
| DP CX3-P - standard components + grey-level thermal printer | 9.971 949 | 1.00 |
